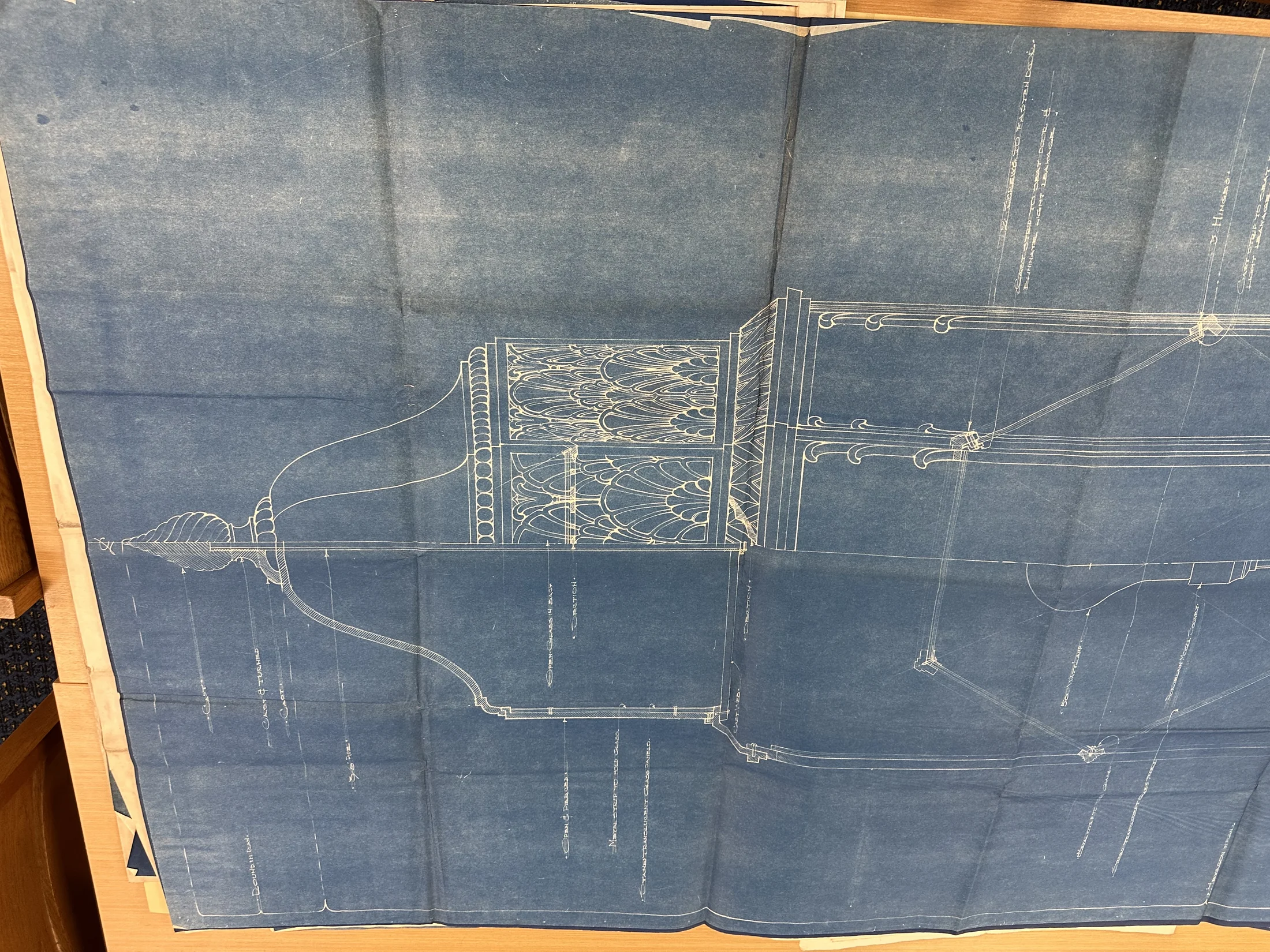

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass sequential visual review of public/archive/drawings/complete-upright/IMG_1041.webp after catalogue and OCR. Regions use unrotated access-image coordinates; rotationDegrees gives clockwise turn needed to read primary lettering. No room geometry or modeling inference. Partial timed visual review: Selected source-local properties; source-to-building placement and historical authority unestablished. Partial timed visual review: Source-local selected witnesses only; no accepted geometry, historical revision choice, installation count or full-source completion. Partial timed visual review: Selected source-local original visible linework only. No revision ordering, physical placement, or accepted geometry established. Partial timed visual review: Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established. Partial timed visual review: undefined Partial timed visual review: Lantern crown and ornamental glazed panel construction notes only.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visually read source evidence; partial review; assembly-local scope only.
Drawing notation: CAP TURNED
Selected visually read source evidence; partial review; assembly-local scope only.
Selected visually read source evidence; partial review; assembly-local scope only.
Drawing notation: DOME ROLLED
Selected visually read source evidence; partial review; assembly-local scope only.
Unresolved source reading; numeric value withheld; partial review.
Drawing notation: DOME SCREWED TO [word unresolved]
Unresolved source reading; numeric value withheld; partial review.
3 hinges
Selected visually read source evidence; partial review; assembly-local scope only.
Drawing notation: 3 HINGES
Selected visually read source evidence; partial review; assembly-local scope only.
Selected visually read source evidence; partial review; assembly-local scope only.
Drawing notation: DOUBLE STRENGTH GLASS
Selected visually read source evidence; partial review; assembly-local scope only.
Unresolved source reading; numeric value withheld; partial review.
Drawing notation: [glass bend, weld, casting and cap annotations unresolved]
Unresolved source reading; numeric value withheld; partial review.
0.375 unlabeled
Fraction glyph reads 3/8 on the same crown-pipe leader. No independent inch mark verified; numeric glyph is not an inch size or pipe OD. Prior inch-unit null remains open.
Drawing notation: 3/8 PIPE
Fraction glyph reads 3/8 on the same crown-pipe leader. No independent inch mark verified; numeric glyph is not an inch size or pipe OD. Prior inch-unit null remains open.
Same crown panel note as prior open-back null witness; OPEN GLASS IN BACK is legible. Does not supply a panel dimension, hinge geometry or installation assignment.
Drawing notation: OPEN GLASS IN BACK
Same crown panel note as prior open-back null witness; OPEN GLASS IN BACK is legible. Does not supply a panel dimension, hinge geometry or installation assignment.
Crown section glass-treatment note; establishes treatment on this image only. Not closure of IMG_1040 treatment question or another crown glyph.
Drawing notation: STAINED TRANSLUCENT GLASS PANELS
Crown section glass-treatment note; establishes treatment on this image only. Not closure of IMG_1040 treatment question or another crown glyph.
Annotation points to outer side of crown/panel section. Open/pierced condition, no count or thickness supplied.
Drawing notation: OPEN & PIERCED
Annotation points to outer side of crown/panel section. Open/pierced condition, no count or thickness supplied.
Arrow points to neck beneath top ornament in selected crown section. Keeps this glyph separate from earlier cap/dome fabrication transcriptions at other regions.
Drawing notation: CAST & TURNED
Arrow points to neck beneath top ornament in selected crown section. Keeps this glyph separate from earlier cap/dome fabrication transcriptions at other regions.
Numeric value unresolved
Sloping PIPE fraction too small for verified numeric transcription in this access crop; candidate retained. Pipe nominal designation must not establish outside diameter.
Drawing notation: [5/8 candidate; fraction unresolved] PIPE
Sloping PIPE fraction too small for verified numeric transcription in this access crop; candidate retained. Pipe nominal designation must not establish outside diameter.
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: FLAT GLASS BENT TO ROLLED GLASS
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: CAP SCREWED
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: DOME SCREWED TO [ROLLED?] [word unresolved]
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Candidate reading of crown panel section note; punctuation and exact back condition require close crop before modeling.
Drawing notation: OPEN GLASS IN BACK
Candidate reading of crown panel section note; punctuation and exact back condition require close crop before modeling.
Calculated from: detail-20261011g-img1041-1
