Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass sequential visual review of public/archive/drawings/complete-upright/IMG_1040.webp after catalogue and OCR. Regions use unrotated access-image coordinates; rotationDegrees gives clockwise turn needed to read primary lettering. No room geometry or modeling inference. Partial timed visual review: Selected source-local properties; source-to-building placement and historical authority unestablished. Partial timed visual review: Source-local selected witnesses only; no accepted geometry, historical revision choice, installation count or full-source completion. Partial timed visual review: Selected source-local original visible linework only. No revision ordering, physical placement, or accepted geometry established. Partial timed visual review: Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established. Partial timed visual review: undefined Partial timed visual review: Lantern interior and glazing notes; no installed fixture count or physical dimensions inferred.
Loading the selected drawing…

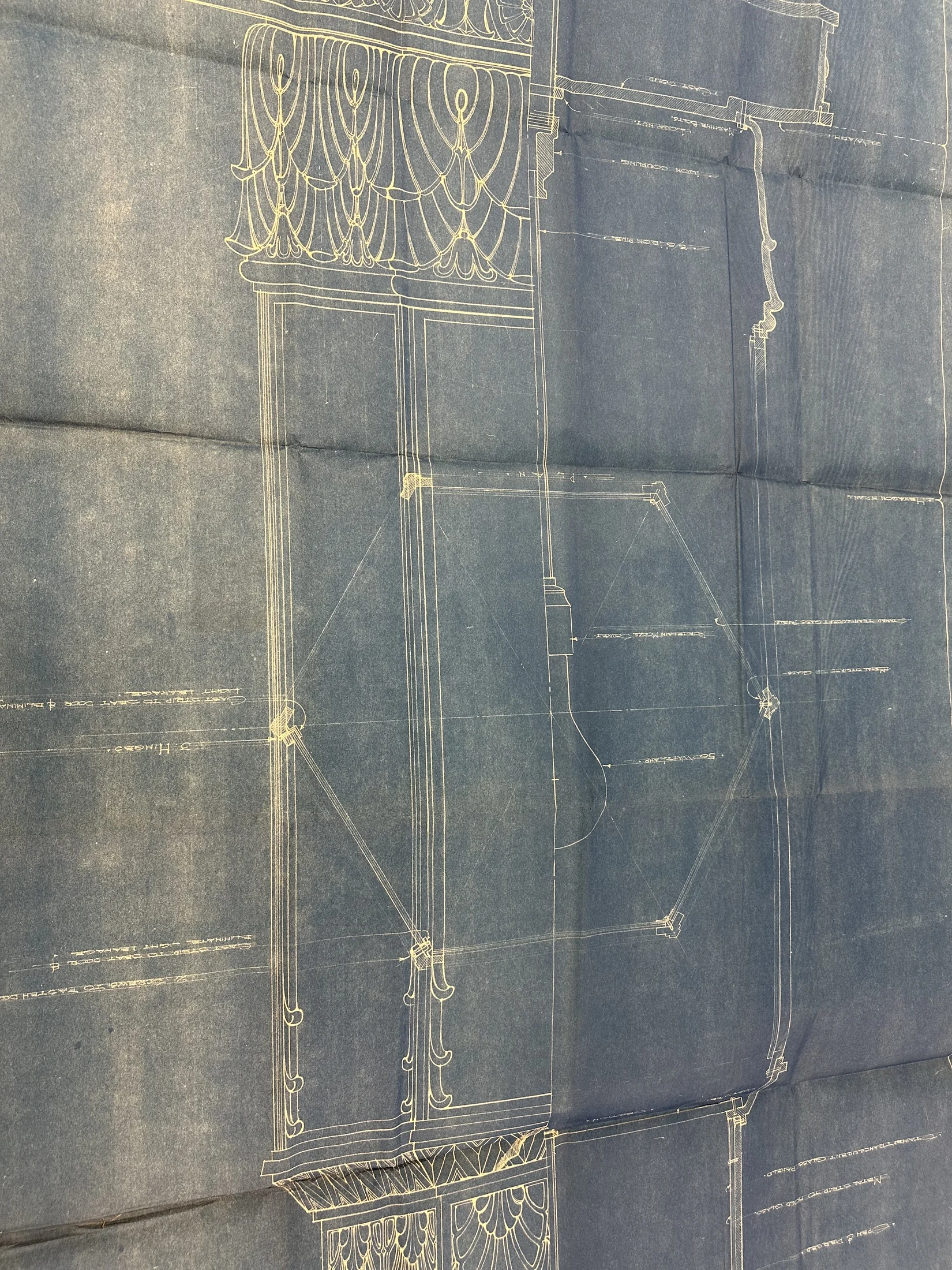

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
3 hinges
Selected visually read source evidence; partial review; assembly-local scope only.
Drawing notation: 3 HINGES
Selected visually read source evidence; partial review; assembly-local scope only.
Selected visually read source evidence; partial review; assembly-local scope only.
Drawing notation: DOUBLE STRENGTH GLASS
Selected visually read source evidence; partial review; assembly-local scope only.
Unresolved source reading; numeric value withheld; partial review.
Drawing notation: GLASS HELD TO [frame/door] & [remaining words unresolved]
Unresolved source reading; numeric value withheld; partial review.
Selected visually read source evidence; partial review; assembly-local scope only.
Drawing notation: IRON PIPE
Selected visually read source evidence; partial review; assembly-local scope only.
Selected visually read source evidence; partial review; assembly-local scope only.
Drawing notation: IRON COUPLING
Selected visually read source evidence; partial review; assembly-local scope only.
Selected visually read source evidence; partial review; assembly-local scope only.
Drawing notation: CAST IRON
Selected visually read source evidence; partial review; assembly-local scope only.
Selected visually read source evidence; partial review; assembly-local scope only.
Drawing notation: PLAN
Selected visually read source evidence; partial review; assembly-local scope only.
Unresolved source reading; numeric value withheld; partial review.
Drawing notation: [pipe diameter and upper/lower casting/glass annotations require rotation and crops]
Unresolved source reading; numeric value withheld; partial review.
Exact prior ornamental treatment clause on this image; STAINED is legible. No glass thickness, retainer alloy or installed fixture mapping established.
Drawing notation: STAINED TRANSLUCENT GLASS PANELS
Exact prior ornamental treatment clause on this image; STAINED is legible. No glass thickness, retainer alloy or installed fixture mapping established.
Printed prefix clips at right master boundary. Numeral retained as notation only; complete door clause and whether two is per illustrated door remain unresolved.
Drawing notation: 2 SCREWS TO FASTEN DO[remainder clipped at source edge]
Printed prefix clips at right master boundary. Numeral retained as notation only; complete door clause and whether two is per illustrated door remain unresolved.
Washer annotation points to underside mounting connection; washer material, diameter, thickness and installed count not established.
Drawing notation: WASHER
Washer annotation points to underside mounting connection; washer material, diameter, thickness and installed count not established.
Printed lock-nut annotation at lower mounting connection. Thread size, material and installed count unresolved.
Drawing notation: LOCK NUT
Printed lock-nut annotation at lower mounting connection. Thread size, material and installed count unresolved.
Machine-bolt label applies to depicted mounting connection. Fastener diameters, count and grade unread.
Drawing notation: MACHINE BOLTS
Machine-bolt label applies to depicted mounting connection. Fastener diameters, count and grade unread.
Numeric value unresolved
Fraction before IRON PIPE is faint; no numeric size accepted. A printed pipe designation would be nominal size, not measured outside diameter.
Drawing notation: [fraction unresolved] IRON PIPE
Fraction before IRON PIPE is faint; no numeric size accepted. A printed pipe designation would be nominal size, not measured outside diameter.
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: GLASS HELD TO [FRAME/DOOR] BY [ALUMINUM?] [remaining text]
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: [polygonal plan shows door leaf at side]
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
0.375 in
Same upper pipe fraction as counterhardware null; stacked 3/8 resolved in native crop. Nominal size only; coupling has no legible numeric designation.
Drawing notation: 3/8" IRON PIPE
Same upper pipe fraction as counterhardware null; stacked 3/8 resolved in native crop. Nominal size only; coupling has no legible numeric designation.
50 W
Power annotation applies to depicted source-local lamp only.
Drawing notation: 50 WATT LAMP
Power annotation applies to depicted source-local lamp only.
Socket material/type annotation; does not establish socket dimensions.
Drawing notation: PORCELAIN MOGUL SOCKET
Socket material/type annotation; does not establish socket dimensions.
Section retainer note; metal alloy, section thickness and fixing spacing unread.
Drawing notation: METAL STRIP TO HOLD GLASS
Section retainer note; metal alloy, section thickness and fixing spacing unread.
Distinct ornamental panel note; first word withheld rather than assigning a glass treatment.
Drawing notation: [first word unresolved] TRANSLUCENT GLASS PANEL
Distinct ornamental panel note; first word withheld rather than assigning a glass treatment.
