Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
legacy-img1034-assemblyunreviewed · printed
copper_section_weight
15 oz. COPPER15 oz
Assembly-local source reading; no whole-room or installed-instance geometry inference. Review correction review-correction-20261014e-detail-20261011g-img1034-m001: Primary same-image/same-witness source review. Observed second digit has closed paired loops and clearly reads 8. Original 15 record preserved; proposal only, no shared withdrawal written. Original value/unit/notation stay historical; no governing revision or physical geometry accepted.
legacy-img1034-assemblyverified · printed
plan_bulkhead_finish
FURRED PLASTER BULKHEADAssembly-local source reading; no whole-room or installed-instance geometry inference.
legacy-img1034-assemblyneeds-review · printed
steel_connection_unresolved
[bent plate, channel, angle and anchorage specifications require targeted high-resolution review]Numeric value unresolved
Assembly-local source reading; no whole-room or installed-instance geometry inference.

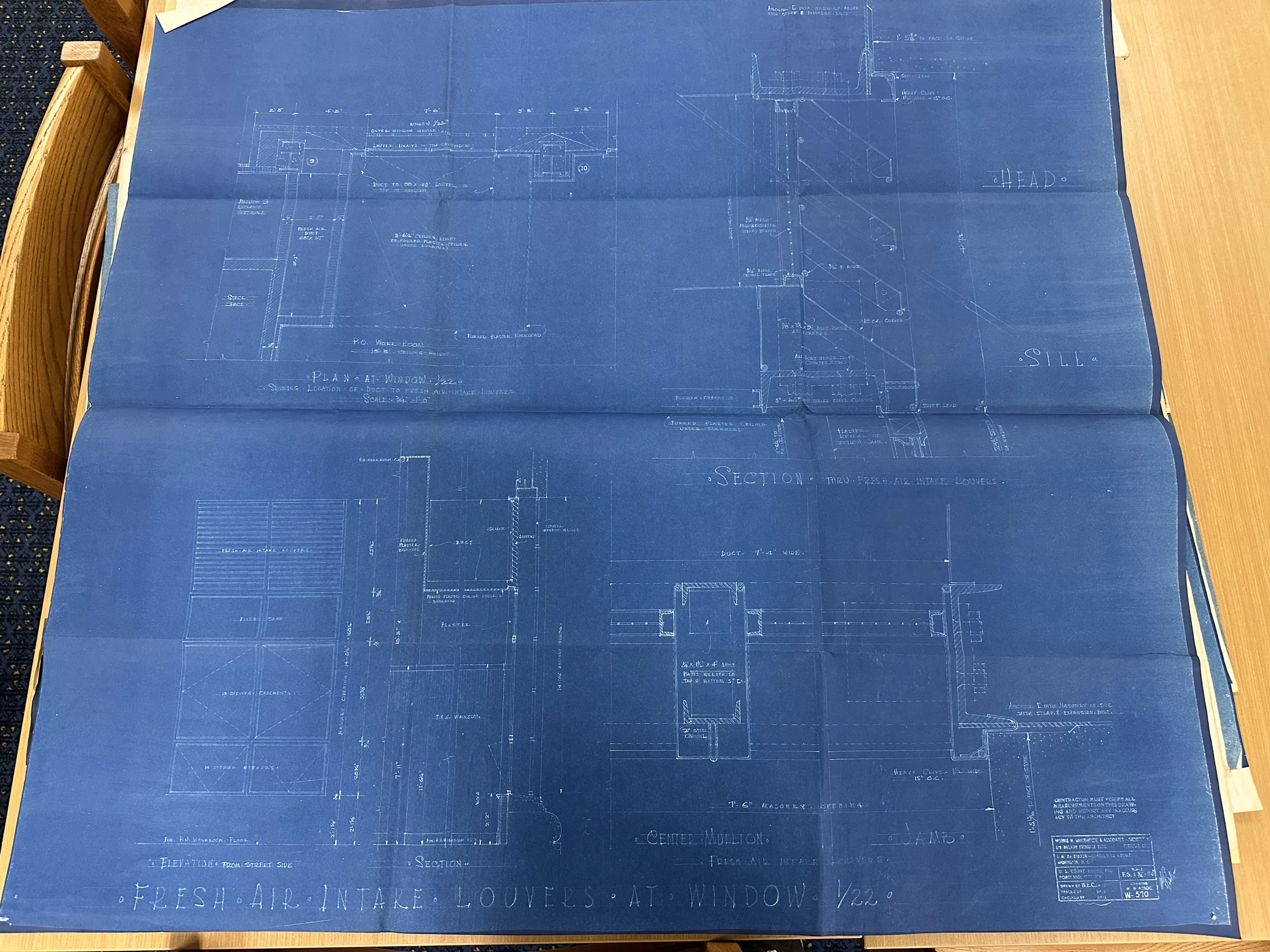

IMG_1034 · W510 · Locate on drawing ↗Drawing notation: [bent plate, channel, angle and anchorage specifications require targeted high-resolution review]
Assembly-local source reading; no whole-room or installed-instance geometry inference.
legacy-img1034-assemblyverified · printed
printed_window_reference
WINDOW /22Selected printed source or documented prior audit; partial source-local review.
legacy-img1034-assemblyverified · printed
room_use
P.O. WORK ROOMSelected printed source or documented prior audit; partial source-local review.
legacy-img1034-assemblyverified · printed
plan_reference
PLAN AT WINDOW /22Selected printed source or documented prior audit; partial source-local review.
legacy-img1034-assemblyverified · printed
intake_section
SECTION THRU FRESH AIR INTAKE LOUVERSSelected printed source or documented prior audit; partial source-local review.
legacy-img1034-assemblyverified · printed
elevation_direction
ELEVATION FROM STREET SIDESelected printed source or documented prior audit; partial source-local review.
legacy-img1034-assemblyverified · printed
mullion_reference
CENTER MULLIONSelected printed source or documented prior audit; partial source-local review.
legacy-img1034-assemblyunreviewed · printed
copper_weight_unresolved
18 oz. COPPER [OCR locator; note too small]Numeric value unresolved
Tentative or unresolved locator; numeric value withheld.
legacy-img1034-assemblyunreviewed · printed
remaining_dimensions_unresolved
[intake, masonry and steel section chains]Numeric value unresolved
Tentative or unresolved locator; numeric value withheld.
legacy-img1034-assemblyverified · printed
copper_section_weight
18 oz. COPPER18 oz
Same original sill flashing leader as prior 15 oz reading and two pending 18 candidates. Printed unit is oz.; no per-area unit, thickness or installed quantity inferred. Source-local only; no installed count, accepted geometry, revision authority or physical registration.
IMG_1034 · W510 · Locate on drawing ↗Drawing notation: 18 oz. COPPER
Same original sill flashing leader as prior 15 oz reading and two pending 18 candidates. Printed unit is oz.; no per-area unit, thickness or installed quantity inferred. Source-local only; no installed count, accepted geometry, revision authority or physical registration.
parallel-img1034-head-heavy-clipsverified · printed
head_heavy_clip_width
HEAVY CLIPS—1″ WIDE—15″ O.C.1 in
Width token of original head clip clause. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
IMG_1034 · W510 · Locate on drawing ↗Drawing notation: HEAVY CLIPS—1″ WIDE—15″ O.C.
Width token of original head clip clause. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
parallel-img1034-head-heavy-clipsverified · printed
head_heavy_clip_spacing
HEAVY CLIPS—1″ WIDE—15″ O.C.15 in
O.C. spacing token of original head clip clause; total run and installed quantity unknown. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
IMG_1034 · W510 · Locate on drawing ↗Drawing notation: HEAVY CLIPS—1″ WIDE—15″ O.C.
O.C. spacing token of original head clip clause; total run and installed quantity unknown. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
legacy-img1034-assemblyverified · printed
head_flashing_material
SHEET LEADOriginal head leader names SHEET LEAD; thickness and joint arrangement not established. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
IMG_1034 · W510 · Locate on drawing ↗Drawing notation: SHEET LEAD
Original head leader names SHEET LEAD; thickness and joint arrangement not established. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
parallel-img1034-sill-channelverified · printed
sill_channel_nominal_depth
5″—6.5# HOT ROLLED STEEL CHANNEL5 in
Nominal channel size token; no section-series or exact physical profile selected. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
IMG_1034 · W510 · Locate on drawing ↗Drawing notation: 5″—6.5# HOT ROLLED STEEL CHANNEL
Nominal channel size token; no section-series or exact physical profile selected. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
parallel-img1034-sill-channelverified · printed
sill_channel_weight_designation
5″—6.5# HOT ROLLED STEEL CHANNEL6.5 #
Literal 6.5# designation. Source does not spell out a denominator; no lb/ft conversion made. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
IMG_1034 · W510 · Locate on drawing ↗Drawing notation: 5″—6.5# HOT ROLLED STEEL CHANNEL
Literal 6.5# designation. Source does not spell out a denominator; no lb/ft conversion made. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
legacy-img1034-assemblyverified · printed
bolt_head_treatment
ALL BOLT HEADS TO BE COUNTERSUNKPrinted note at lower sill assembly. Specifies bolt head treatment; supplies no diameter, spacing, count or installation confirmation.
IMG_1034 · W510 · Locate on drawing ↗Drawing notation: ALL BOLT HEADS TO BE COUNTERSUNK
Printed note at lower sill assembly. Specifies bolt head treatment; supplies no diameter, spacing, count or installation confirmation.
legacy-img1034-assemblyneeds-review · printed
copper_section_weight_conflicting_reading
[appears 18 OZ. COPPER; previous reading 15 oz.]Numeric value unresolved
Native-resolution sill crop suggests 18 rather than prior 15. OCR also located 18, but OCR does not settle the visual conflict. No replacement numeric value or mass-per-area unit inference.
IMG_1034 · W510 · Locate on drawing ↗Drawing notation: [appears 18 OZ. COPPER; previous reading 15 oz.]
Native-resolution sill crop suggests 18 rather than prior 15. OCR also located 18, but OCR does not settle the visual conflict. No replacement numeric value or mass-per-area unit inference.
