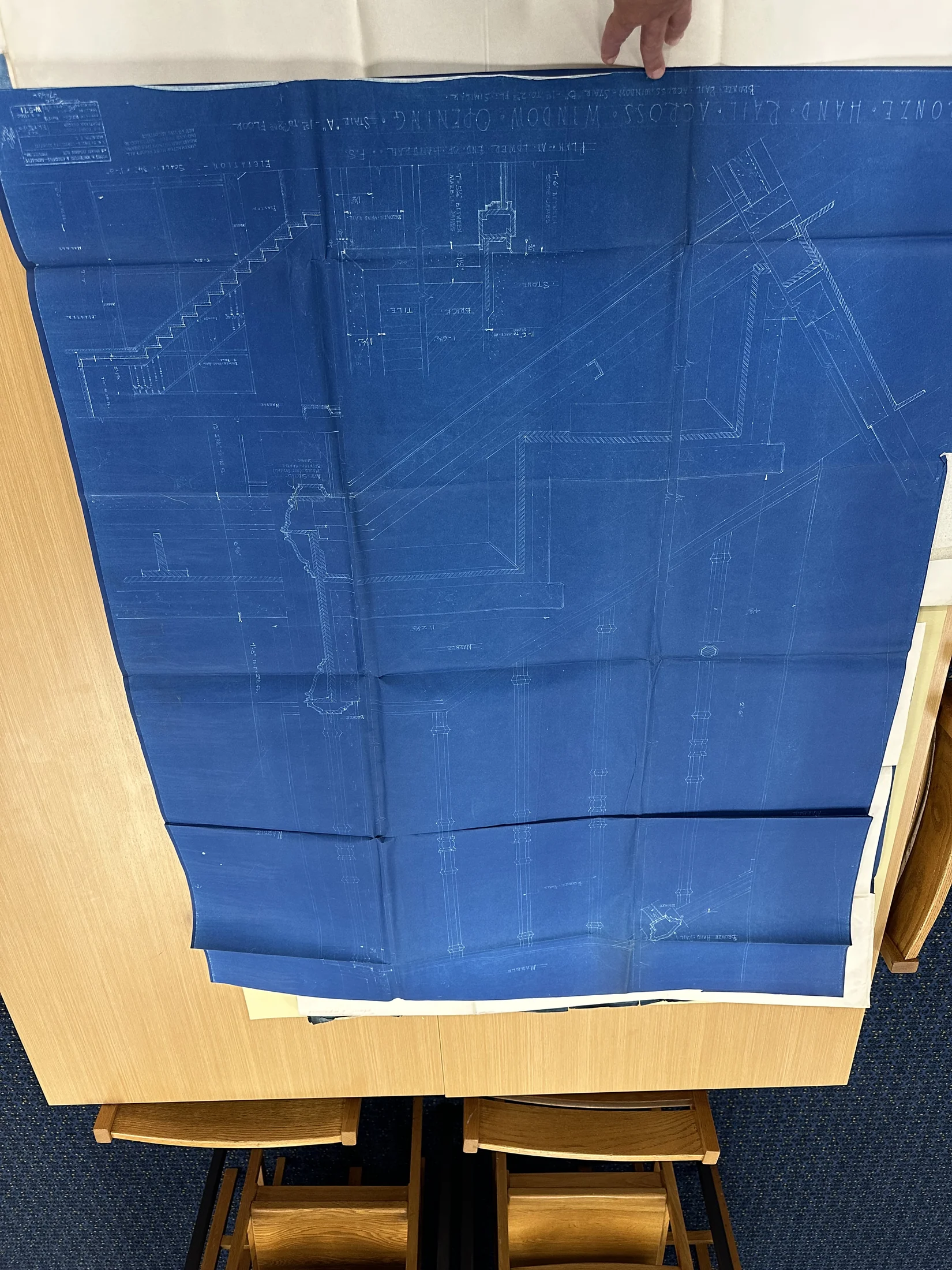

BRONZE HAND RAIL ACROSS WINDOW OPENING STAIR "A" - 1ST TO 2ND FLOORSelected visually read source evidence; partial review; assembly-local scope only.
IMG_1032 · W-511 · Locate on drawing ↗Drawing notation: BRONZE HAND RAIL ACROSS WINDOW OPENING STAIR "A" - 1ST TO 2ND FLOOR
Selected visually read source evidence; partial review; assembly-local scope only.
parallel-img1032-assemblyverified · printed
stair_B_relation
BRONZE RAIL ACROSS WINDOW STAIR "B" - 1ST TO 2ND FL. - SIMIL. 2Selected visually read source evidence; partial review; assembly-local scope only.
IMG_1032 · W-511 · Locate on drawing ↗Drawing notation: BRONZE RAIL ACROSS WINDOW STAIR "B" - 1ST TO 2ND FL. - SIMIL. 2
Selected visually read source evidence; partial review; assembly-local scope only.
parallel-img1032-assemblyverified · printed
rail_material
BRONZE HAND RAILSelected visually read source evidence; partial review; assembly-local scope only.
parallel-img1032-assemblyverified · printed
wall_material_stone
STONESelected visually read source evidence; partial review; assembly-local scope only.
parallel-img1032-assemblyverified · printed
wall_material_brick
BRICKSelected visually read source evidence; partial review; assembly-local scope only.
parallel-img1032-assemblyverified · printed
wall_material_tile
TILESelected visually read source evidence; partial review; assembly-local scope only.
parallel-img1032-assemblyverified · printed
jamb_material
MARBLESelected visually read source evidence; partial review; assembly-local scope only.
parallel-img1032-assemblyverified · printed
plan_detail_scale
PLAN AT LOWER END OF HANDRAIL F.S.Selected visually read source evidence; partial review; assembly-local scope only.
parallel-img1032-assemblyunreviewed · printed
remaining_dimensions_unresolved
[rail/stair sections retain fine dimension chains; fractions unresolved]Numeric value unresolved
Unresolved source reading; numeric value withheld; partial review.
IMG_1032 · W-511 · Locate on drawing ↗Drawing notation: [rail/stair sections retain fine dimension chains; fractions unresolved]
Unresolved source reading; numeric value withheld; partial review.
parallel-img1032-assemblyneeds-review · printed
rail_section_chain_unresolved
[fine fractional dimensions in large rail sections remain unreadable at derivative scale]Numeric value unresolved
Assembly-local source reading; no whole-room or installed-instance geometry inference.
IMG_1032 · W-511 · Locate on drawing ↗Drawing notation: [fine fractional dimensions in large rail sections remain unreadable at derivative scale]
Assembly-local source reading; no whole-room or installed-instance geometry inference.
parallel-img1032-assemblyverified · printed
marble_section_local_dimension
1′-2⅝″14.625 in
Local horizontal witness beneath MARBLE; independently read on this exposure. Broad prior section-chain questions remain open; IMG_1033 is a separate source. Source-local only; no installed count, accepted geometry, revision authority or physical registration.
IMG_1032 · W-511 · Locate on drawing ↗Drawing notation: 1′-2⅝″
Local horizontal witness beneath MARBLE; independently read on this exposure. Broad prior section-chain questions remain open; IMG_1033 is a separate source. Source-local only; no installed count, accepted geometry, revision authority or physical registration.
parallel-img1032-assemblyverified · printed
lower_plan_witness_to_face_of_stone
1′-6″ TO FACE OF STONE18 in
Lower plan left witness explicitly qualified TO FACE OF STONE. Endpoint registration and relation to separate right chain remain open. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
IMG_1032 · W-511 · Locate on drawing ↗Drawing notation: 1′-6″ TO FACE OF STONE
Lower plan left witness explicitly qualified TO FACE OF STONE. Endpoint registration and relation to separate right chain remain open. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
parallel-img1032-assemblyverified · printed
lower_plan_inner_horizontal_witness
1′-6½″18.5 in
Separate middle lower-plan horizontal witness over BRICK/TILE. Same-sheet source reading; not substituted from IMG_1033. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
IMG_1032 · W-511 · Locate on drawing ↗Drawing notation: 1′-6½″
Separate middle lower-plan horizontal witness over BRICK/TILE. Same-sheet source reading; not substituted from IMG_1033. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
parallel-img1032-assemblyverified · printed
lower_plan_right_horizontal_witness
1½″1.5 in
Rightmost lower-plan horizontal segment. Printed explicit inch mark; component boundary not accepted. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
IMG_1032 · W-511 · Locate on drawing ↗Drawing notation: 1½″
Rightmost lower-plan horizontal segment. Printed explicit inch mark; component boundary not accepted. Source-local only; no installed quantity, registration, governing issue or accepted geometry.
