The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters
IMG_1023 · Folder 192

J.S. Court Houses

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review of public/archive/drawings/complete-upright/IMG_1023.webp after catalogue/OCR and existing observations. Coordinates are normalized access-image coordinates before rotation. Actual reading rotation 180 degrees. Foreground drawing only. Partial timed visual review: Additive source-local follow-up after queue, OCR and prior packages. Coordinates use unrotated access image; actual clockwise reading correction recorded. Existing verified readings reused without duplication. No physical geometry or completion claim. Partial timed visual review: Additive targeted review; normalized regions refer to unrotated access derivative. Existing source-local assembly ID reused. Partial timed visual review: Text-only companion resolution reuse; Model 5 lantern and Drawing 576 are distinct from Model 8 pole base, Model 10 handrail and Model 72 eagle. Partial timed visual review: undefined Partial timed visual review: Bounded source-local property follow-up; original and revision readings remain separate. No installed position, count or architectural acceptance.

Unresolved extraction work
  • Transcribe remaining faint dimensions and small callouts
  • Review full sheet and companion detail relationships
  • Reconcile handwritten dates/revisions separately from original drawing
  • Register to physical building instances; quantities not established
  • Full fine-dimension/profile endpoint extraction remains incomplete
  • Physical instance, floor and room registration unresolved
  • Companion sheets, revisions and installed quantities require reconciliation
  • Physical instance placement and floor/room registration unresolved
  • Remaining fine dimensions, title revisions and companion reconciliation require review
  • All residual dimensions and installed registration; source not visually reopened
  • Installed source-to-element registration, actual quantities, floor/room hosts and as-built correspondence
  • Governing issue/revision authority and original versus archive annotation reconciliation
  • All residual fine profiles, dimensions, callouts, schedules, companion details and clipped margins remain partial
  • Retainer/post/door interface dimensions and fastener details remain unknown
  • GROUNDED HERE source-local wording correction proposal requires primary adjudication
  • Installed placement, floor/room, count and revision authority
  • Remaining exact profile dimensions and unreviewed notes

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

26 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1023-lanternverified · printed

glazing_material

TRANSLUCENT GLASS PANELS

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established.

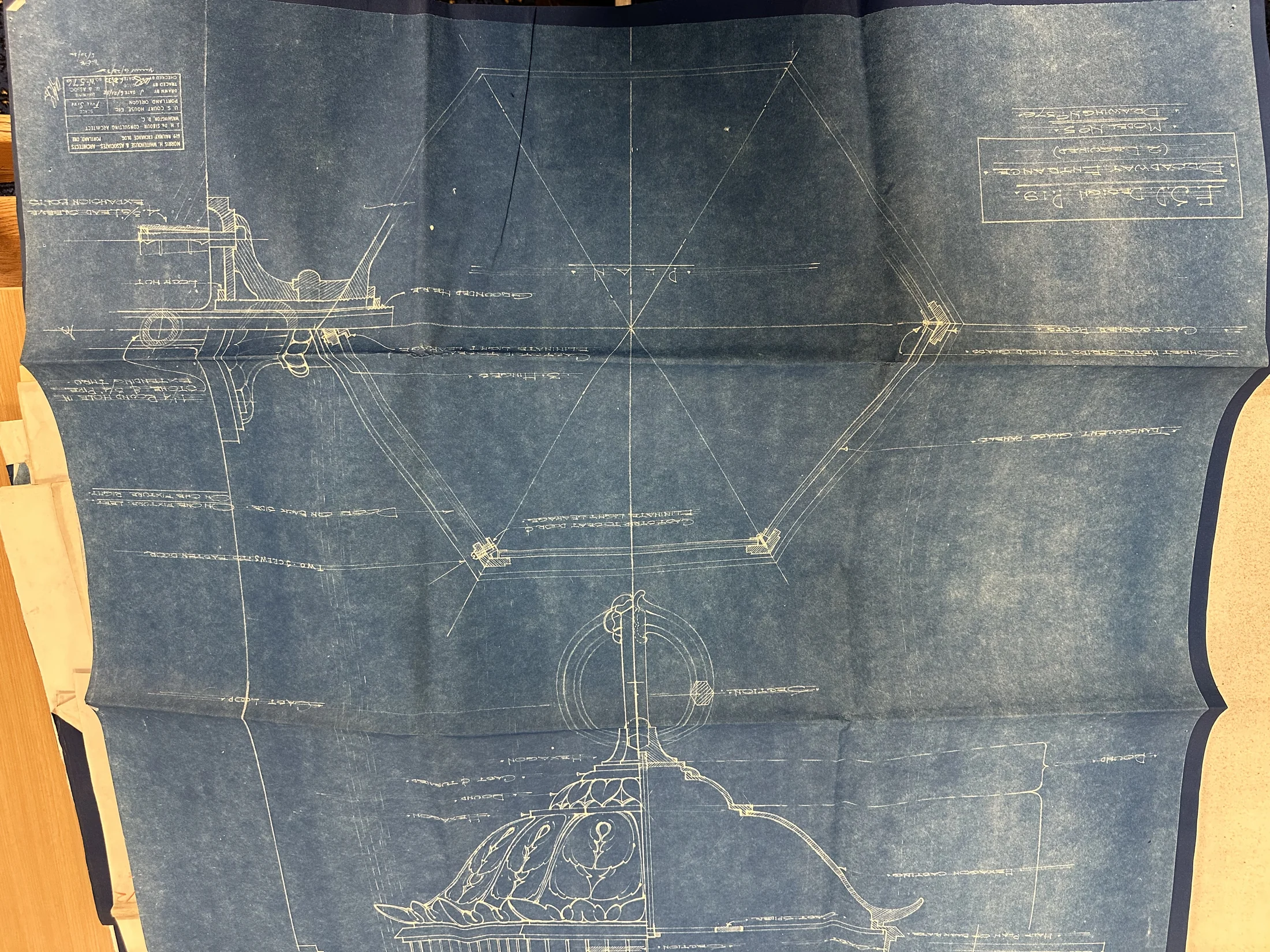

IMG_1023 · Locate on drawing ↗

Drawing notation: TRANSLUCENT GLASS PANELS

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established.

parallel-img1023-lanternverified · printed

corner_post_construction

CAST CORNER POSTS

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established.

IMG_1023 · Locate on drawing ↗

Drawing notation: CAST CORNER POSTS

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established.

parallel-img1023-lanternverified · printed

door_hinges

Door on one side; concealed hinges

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established.

IMG_1023 · Locate on drawing ↗

Drawing notation: Door on one side; concealed hinges

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established.

parallel-img1023-lanternverified · printed

latch_components

CAST LOOP

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established.

IMG_1023 · Locate on drawing ↗

Drawing notation: CAST LOOP

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established.

parallel-img1023-lanternunreviewed · printed

hub_joint

GROUNDED HUB

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established. Review correction review-correction-20261013r-parallel-img1023-lantern-m005: Same IMG1023 plan/section leader native raw crop reads GROUNDED HERE; HERE locates seam beneath plan corner. Earlier HUB noun is a transcription candidate, not a historical revision. Preserve earlier record.

IMG_1023 · Locate on drawing ↗

Drawing notation: GROUNDED HUB

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established.

parallel-img1023-lanternverified · printed

printed_model_mark

MODEL No 3

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established.

IMG_1023 · Locate on drawing ↗

Drawing notation: MODEL No 3

Selected visible evidence from sequential access-image review; partial extraction. Type/detail-level only; installed instance counts and room geometry are not established.

parallel-img1023-lanternverified · printed

model_mark_conflicting_reading

MODEL No 5

Close-up title reads No 5; conflicts with prior package No 3. Preserve both, no silent replacement.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: MODEL No 5

Close-up title reads No 5; conflicts with prior package No 3. Preserve both, no silent replacement.

parallel-img1023-lanternverified · printed

door_screw_quantity

TWO SCREWS TO EACH DOOR

2 screws

Per access-door fixing quantity; physical doors unresolved.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: TWO SCREWS TO EACH DOOR

Per access-door fixing quantity; physical doors unresolved.

parallel-img1023-lanternneeds-review · printed

door_light_leakage_note

CAST ON TO EACH DOOR ELIMINATE LIGHT LEAKAGE

Door-edge sealing construction note; first phrase partly faint.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: CAST ON TO EACH DOOR ELIMINATE LIGHT LEAKAGE

Door-edge sealing construction note; first phrase partly faint.

parallel-img1023-lanternverified · printed

sheet_metal_attachment

SHEET METAL STRIPS TO HOLD GLASS

Glass retention strips, distinct from cast corner posts.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: SHEET METAL STRIPS TO HOLD GLASS

Glass retention strips, distinct from cast corner posts.

parallel-img1023-lanternverified · printed

door_side_relationship

DOOR ON DARK SIDE ... ON ONE FIXTURE LEFT / ON OTHER FIXTURE RIGHT

Handing relationship for paired fixtures; not room geometry.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: DOOR ON DARK SIDE ... ON ONE FIXTURE LEFT / ON OTHER FIXTURE RIGHT

Handing relationship for paired fixtures; not room geometry.

parallel-img1023-lanternverified · printed

expansion_bolt_quantity

4-3/8 LEAD SLEEVE EXPANSION BOLTS

4 bolts

Quantity of fixing bolts in lower bracket detail; separate diameter below.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: 4-3/8 LEAD SLEEVE EXPANSION BOLTS

Quantity of fixing bolts in lower bracket detail; separate diameter below.

parallel-img1023-lanternverified · printed

expansion_bolt_diameter

4-3/8 LEAD SLEEVE EXPANSION BOLTS

0.375 in

3/8-inch bolt designation; sleeve dimensions not established.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: 4-3/8 LEAD SLEEVE EXPANSION BOLTS

3/8-inch bolt designation; sleeve dimensions not established.

parallel-img1023-lanternneeds-review · printed

wall_mount_pipe_hole

ROUND HOLE IN ... [fraction] PIPE ... EXTENDING THRU

Numeric value unresolved

Pipe opening fraction unresolved; no value adopted.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: ROUND HOLE IN ... [fraction] PIPE ... EXTENDING THRU

Pipe opening fraction unresolved; no value adopted.

parallel-img1023-lanternverified · printed

model_mark_resolution

MODEL No 5

5 model-number

Targeted title crop confirms digit 5. Model type mark, not installed quantity. Retain earlier No 3 record as superseded reading candidate.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: MODEL No 5

Targeted title crop confirms digit 5. Model type mark, not installed quantity. Retain earlier No 3 record as superseded reading candidate.

parallel-img1023-lanternverified · printed

drawing_reference_resolution

DRAWING No 576

576 drawing-number

Title reference confirms 576; W prefix derives from sheet title block previously registered as W-576.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: DRAWING No 576

Title reference confirms 576; W prefix derives from sheet title block previously registered as W-576.

parallel-img1023-lanternverified · printed

door_hinge_quantity

3 HINGES

3 hinges

Printed quantity applies to depicted lantern access door. Does not establish physical fixture count.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: 3 HINGES

Printed quantity applies to depicted lantern access door. Does not establish physical fixture count.

lightglass1013r-img1023-glass-retainer-interfaceverified · observed

glass_retainer_corner_post_relationship

Observed plan corner: glass-panel line pair terminates at cast-corner-post profile; sheet-metal strip leader points to overlapping edge at panel/post interface.

Source-local type/detail, original printed layer; no installed quantity, room/floor assignment, world coordinate or accepted geometry. Plan interface only; prior strip/post/glass printed identifications reused. No thickness, clearance, fixing size or physical installed section.

IMG_1023 · Locate on drawing ↗

Drawing notation: Observed plan corner: glass-panel line pair terminates at cast-corner-post profile; sheet-metal strip leader points to overlapping edge at panel/post interface.

Source-local type/detail, original printed layer; no installed quantity, room/floor assignment, world coordinate or accepted geometry. Plan interface only; prior strip/post/glass printed identifications reused. No thickness, clearance, fixing size or physical installed section.

Calculated from: detail-20261011g-img1023-4, parallel-img1023-lantern-m002, parallel-img1023-lantern-m001

parallel-img1023-lanternverified · printed

grounded_here_joint_note_resolved

GROUNDED HERE

Source-local type/detail, original printed layer; no installed quantity, room/floor assignment, world coordinate or accepted geometry. HERE is location word after GROUNDED; leader at bracket/hub-interface seam beneath plan corner. No electrical grounding specification or hub dimension inferred.

IMG_1023 · Locate on drawing ↗

Drawing notation: GROUNDED HERE

Source-local type/detail, original printed layer; no installed quantity, room/floor assignment, world coordinate or accepted geometry. HERE is location word after GROUNDED; leader at bracket/hub-interface seam beneath plan corner. No electrical grounding specification or hub dimension inferred.

Calculated from: parallel-img1023-lantern-m005

lightglass1013r-img1023-door-bracket-interfaceverified · observed

door_hinge_corner_relationship

Observed 3 HINGES leader terminates at door-side corner junction beside bracket/hub section.

Source-local type/detail, original printed layer; no installed quantity, room/floor assignment, world coordinate or accepted geometry. Plan/section interface only. Prior three-hinge quantity and paired left/right-door instruction reused; no new quantity, hinge size, swing radius or installed side.

IMG_1023 · Locate on drawing ↗

Drawing notation: Observed 3 HINGES leader terminates at door-side corner junction beside bracket/hub section.

Source-local type/detail, original printed layer; no installed quantity, room/floor assignment, world coordinate or accepted geometry. Plan/section interface only. Prior three-hinge quantity and paired left/right-door instruction reused; no new quantity, hinge size, swing radius or installed side.

Calculated from: detail-20261011x-img1023-3, detail-20261011g-img1023-5

parallel-img1023-lanternverified · printed

door_light_leakage_note_resolution

CAST LIPS TO EACH DOOR & / ELIMINATE LIGHT LEAKAGE

Door-edge leader calls for cast lips to eliminate light leakage. Resolves noun and instruction in prior same-image note; no lip width, depth or installed door count established.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: CAST LIPS TO EACH DOOR & / ELIMINATE LIGHT LEAKAGE

Door-edge leader calls for cast lips to eliminate light leakage. Resolves noun and instruction in prior same-image note; no lip width, depth or installed door count established.

Calculated from: detail-20261011g-img1023-3

parallel-img1023-lanternverified · printed

wall_mount_stone_hole_diameter

1 1/4 ROUND HOLE IN / STONE & 3/4 PIPE / EXTENDING THRU.

1.25 in

1 1/4 is the round opening in stone in this full-size local mounting detail. Separate from the 3/4 pipe designation. Source-local inch convention, not surveyed installed diameter.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: 1 1/4 ROUND HOLE IN / STONE & 3/4 PIPE / EXTENDING THRU.

1 1/4 is the round opening in stone in this full-size local mounting detail. Separate from the 3/4 pipe designation. Source-local inch convention, not surveyed installed diameter.

Calculated from: detail-20261011g-img1023-9

parallel-img1023-lanternverified · printed

wall_mount_pipe_nominal_designation

1 1/4 ROUND HOLE IN / STONE & 3/4 PIPE / EXTENDING THRU.

0.75 in

3/4 PIPE is the local pipe designation; it is not outside diameter, wall thickness, crown diameter or the 1 1/4 stone opening.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: 1 1/4 ROUND HOLE IN / STONE & 3/4 PIPE / EXTENDING THRU.

3/4 PIPE is the local pipe designation; it is not outside diameter, wall thickness, crown diameter or the 1 1/4 stone opening.

Calculated from: detail-20261011g-img1023-9

parallel-img1023-lanternverified · printed

wall_mount_opening_host_material

STONE

Stone is the stated hole host in the wall mount note; stone type, thickness and installed elevation remain unspecified.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: STONE

Stone is the stated hole host in the wall mount note; stone type, thickness and installed elevation remain unspecified.

Calculated from: poleornament1013n-img_1023-stone-round-hole

parallel-img1023-lanternverified · printed

wall_mount_pipe_through_relationship

3/4 PIPE / EXTENDING THRU.

Pipe extends through the stated round hole in stone. Penetration length and connection to installed electrical wiring remain open.

IMG_1023 · W-576 · Locate on drawing ↗

Drawing notation: 3/4 PIPE / EXTENDING THRU.

Pipe extends through the stated round hole in stone. Penetration length and connection to installed electrical wiring remain open.

Calculated from: poleornament1013n-img_1023-stone-round-hole, poleornament1013n-img_1023-wall-pipe-designation
