Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review of public/archive/drawings/complete-upright/IMG_1016.webp. Regions use unrotated access-image normalized coordinates; rotationDegrees is clockwise correction for readable text. Selected evidence only; no model geometry authorized. Partial timed visual review: Source-local drawing evidence; all new properties excluded from architectural authoring. Partial timed visual review: undefined Partial timed visual review: Selected local fabrication and note evidence only; prior verified readings reused. Partial timed visual review: Depicted shop-drawing assembly only; no exact room geometry, installed quantity, historical room assignment or accepted model placement. Partial timed visual review: Appeals clerk desk slip-box annotation only; source-local reference, no installed geometry.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible source evidence; partial review. Applies only to depicted assembly.

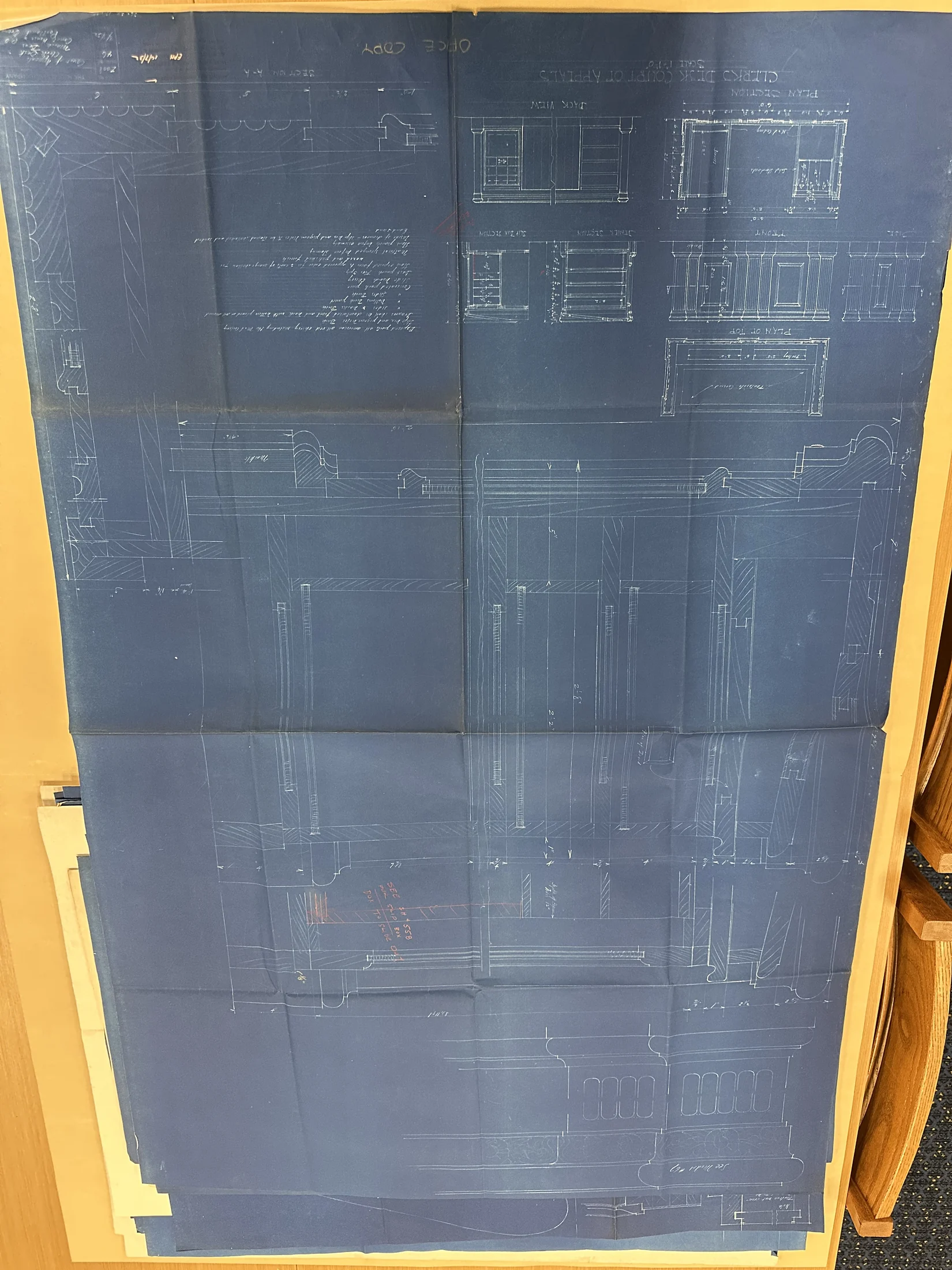

Drawing notation: CLERKS DESK COURT OF APPEALS
Selected visible source evidence; partial review. Applies only to depicted assembly.
Multiple separately labeled views; fine schedules and dimensions remain unextracted.
Drawing notation: PLAN SECTION; BACK VIEW; FRONT; PLAN OF TOP; SLIP BOX SECTION; SECTION A-A
Multiple separately labeled views; fine schedules and dimensions remain unextracted.
Selected visible source evidence; partial review. Applies only to depicted assembly.
Drawing notation: SCALE 1"=1'-0"
Selected visible source evidence; partial review. Applies only to depicted assembly.
Selected visible source evidence; partial review. Applies only to depicted assembly.
Drawing notation: OFFICE COPY
Selected visible source evidence; partial review. Applies only to depicted assembly.
Colored reference W-558 readable; remainder requires close review.
Drawing notation: SEE W-558 ...
Colored reference W-558 readable; remainder requires close review.
Observed geometry only. Drawer count, profile dimensions and material text unresolved at this derivative scale.
Drawing notation: Full-size moulded desk cross-sections and drawer/guide construction
Observed geometry only. Drawer count, profile dimensions and material text unresolved at this derivative scale.
First two lines of colored annotation above its separating rule. Small raised H follows S; literal SH retained without expansion. The final line below the rule is excluded and remains unresolved. Conflicting earlier W-558 transcription is preserved for primary review.
Drawing notation: SEE SH 558 FOR SLIP BOX
First two lines of colored annotation above its separating rule. Small raised H follows S; literal SH retained without expansion. The final line below the rule is excluded and remains unresolved. Conflicting earlier W-558 transcription is preserved for primary review.
Conflicting readings: closure1011aa-img_1016-revision-slipbox
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Drawing notation: Exposed parts all American all red cherry including the M & V carving
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Drawing notation: Drawer sides dovetailed front and back with bottom panel grooved
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Drawing notation: sides & backs Birch
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Drawing notation: Solid Panels Cherry
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Drawing notation: Door panels Fir Ply
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Drawing notation: Inside of drawers slip box and pigeon holes to be stained shellacked and waxed
Clerk-desk specification note only. Material/finish applicability to the named component; grade, thickness and complete hardware remain unresolved.
Red note in full-size section requires W-558 slip-box companion. Includes further direction about pad to slip-box top, retained as unresolved below. Review correction review-correction-20261014m-slipbox-reference: Native reinspection of the same IMG1016 colored annotation distinguishes S with a raised H before558: SEE SH558 FOR SLIP BOX, not W-558. Preserve the earlier literal wording and withdraw verified use of that transcription. The distinct final line, companion identity/authority and installed construction remain unresolved; this does not select a historical revision.
Drawing notation: SEE W-558 FOR SLIP BOX
Red note in full-size section requires W-558 slip-box companion. Includes further direction about pad to slip-box top, retained as unresolved below.
No numeric pad dimension accepted from this annotation.
Drawing notation: PAD TO SLIP BOX [remaining direction unresolved]
No numeric pad dimension accepted from this annotation.
Depicted shop-drawing assembly only; no exact room geometry, installed quantity, historical room assignment or accepted model placement.
Drawing notation: Bottoms Oak panel
Depicted shop-drawing assembly only; no exact room geometry, installed quantity, historical room assignment or accepted model placement.
Depicted shop-drawing assembly only; no exact room geometry, installed quantity, historical room assignment or accepted model placement.
Drawing notation: Slides Birch
Depicted shop-drawing assembly only; no exact room geometry, installed quantity, historical room assignment or accepted model placement.
Depicted shop-drawing assembly only; no exact room geometry, installed quantity, historical room assignment or accepted model placement.
Drawing notation: [additional material, finish, drawer and hardware notes not fully resolved]
Depicted shop-drawing assembly only; no exact room geometry, installed quantity, historical room assignment or accepted model placement.
Targeted readable crop shows TO SCALE more plausibly than prior PAD TO SLIP BOX wording. Leading and final words remain uncertain. No pad dimension, scaling-derived length or directive authority accepted.
Drawing notation: [PUT?] TO SCALE [OUT?]
Targeted readable crop shows TO SCALE more plausibly than prior PAD TO SLIP BOX wording. Leading and final words remain uncertain. No pad dimension, scaling-derived length or directive authority accepted.
