Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

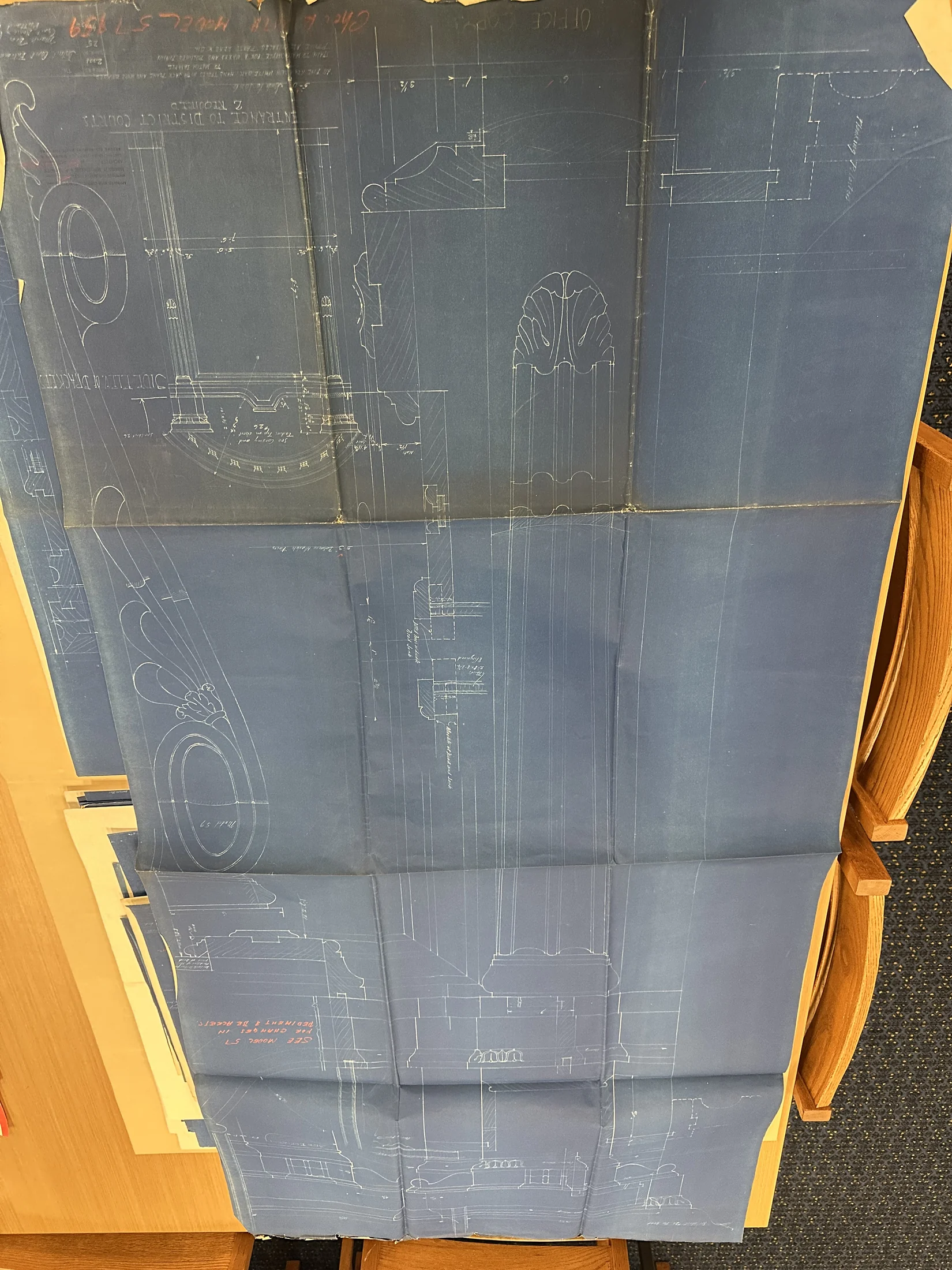

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review of public/archive/drawings/complete-upright/IMG_1014.webp. Regions use unrotated access-image normalized coordinates; rotationDegrees is clockwise correction for readable text. Selected evidence only; no model geometry authorized. Partial timed visual review: Source-local drawing evidence; all new properties excluded from architectural authoring. Partial timed visual review: undefined Partial timed visual review: Depicted shop-drawing assembly only; no exact room geometry, installed quantity, historical room assignment or accepted model placement. Partial timed visual review: District Courts entrance pediment/bracket ornament revision only; does not establish installed room geometry or implementation of revision.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible source evidence; partial review. Applies only to depicted assembly.
Drawing notation: ENTRANCE TO DISTRICT COURTS
Selected visible source evidence; partial review. Applies only to depicted assembly.
2 count
Selected visible source evidence; partial review. Applies only to depicted assembly.
Drawing notation: 2 REQUIRED
Selected visible source evidence; partial review. Applies only to depicted assembly.
Colored review annotation; model references do not establish final profile.
Drawing notation: Check with MODEL 57 & 59
Colored review annotation; model references do not establish final profile.
Partial colored note; full change wording and affected carving require crop reconciliation.
Drawing notation: SEE MODEL 57 FOR CHANGE IN ...
Partial colored note; full change wording and affected carving require crop reconciliation.
Observed depiction only; no inferred dimensions/material from appearance.
Drawing notation: Fluted pilaster with leaf carving and moulded base
Observed depiction only; no inferred dimensions/material from appearance.
Same red Model57 annotation: ampersand followed by BRACKETS; no preceding bracket initials are securely evidenced. Closes this source wording question only. Model57 governing status and physical bracket applicability remain open.
Drawing notation: & BRACKETS
Same red Model57 annotation: ampersand followed by BRACKETS; no preceding bracket initials are securely evidenced. Closes this source wording question only. Model57 governing status and physical bracket applicability remain open.
Calculated from: platform1012t-1014-bracket-revision, platform1012t-1014-revision-model
Complete colored note at the same pediment/bracket locus as prior partial transcriptions. Model57 is a reference identifier, not a quantity; this does not establish governing revision or installed execution.
Drawing notation: SEE MODEL 57 FOR CHANGES IN PEDIMENT & BRACKETS.
Complete colored note at the same pediment/bracket locus as prior partial transcriptions. Model57 is a reference identifier, not a quantity; this does not establish governing revision or installed execution.
Depicted shop-drawing assembly only; no exact room geometry, installed quantity, historical room assignment or accepted model placement. Review annotation/stamp does not establish accepted construction.
Drawing notation: SEE MODEL 57 FOR CHANGE IN [remaining ornamental wording unresolved]
Depicted shop-drawing assembly only; no exact room geometry, installed quantity, historical room assignment or accepted model placement. Review annotation/stamp does not establish accepted construction.
57 model-reference
Printed model reference in red annotation; 57 is a model identifier, not physical quantity.
Drawing notation: SEE MODEL 57 FOR CHANGES IN PEDIMENT & [initials unclear] BRACKETS
Printed model reference in red annotation; 57 is a model identifier, not physical quantity.
Legible pediment scope in annotation; applicability requires companion Model 57, no final construction assumed.
Drawing notation: FOR CHANGES IN PEDIMENT
Legible pediment scope in annotation; applicability requires companion Model 57, no final construction assumed.
Bracket noun is legible; preceding initials not confidently resolved. Do not expand initials or select a bracket instance.
Drawing notation: & [initials unclear] BRACKETS
Bracket noun is legible; preceding initials not confidently resolved. Do not expand initials or select a bracket instance.
