Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass sequential visual review of public/archive/drawings/complete-upright/IMG_1004.webp after catalogue and OCR. Regions are displayed access-image coordinates. No exact room geometry or modeling inference. Partial timed visual review: Bounded source-local shop detail/type evidence. No accepted geometry, complete extraction, installed quantity or inferred floor assignment. Partial timed visual review: undefined Partial timed visual review: Additive detailed follow-up after OCR and prior package comparison. Nine sequential access derivative inspections; IMG_1003 existing specification readings reused without duplication. Coordinates refer to unrotated access image. Only selected readable evidence; no model geometry or full-extraction claim. Partial timed visual review: Bounded fine-detail review; access-image coordinates remain normalized before actual stated clockwise rotation. Prior verified readings reused without duplicate extraction. Partial timed visual review: Targeted fraction review; source-local readings only.
Loading the selected drawing…

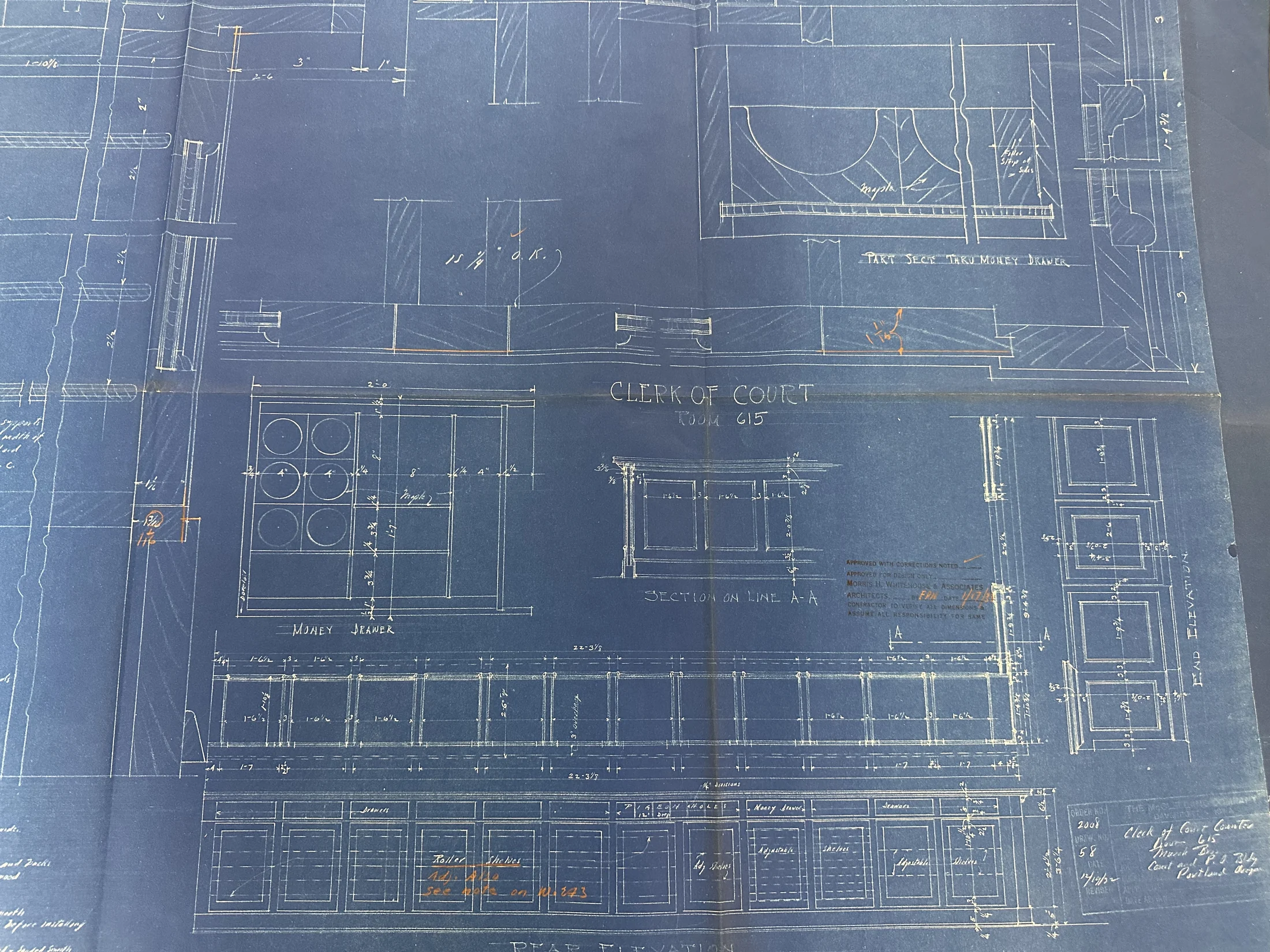

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
615 identifier
Selected visually read printed evidence; partial review; assembly-local scope.
Drawing notation: ROOM 615
Selected visually read printed evidence; partial review; assembly-local scope.
24 in
Selected visually read printed evidence; partial review; assembly-local scope.
Drawing notation: 2'-0"
Selected visually read printed evidence; partial review; assembly-local scope.
Selected visually read printed evidence; partial review; assembly-local scope.
Drawing notation: Maple
Selected visually read printed evidence; partial review; assembly-local scope.
4 in
Selected visually read printed evidence; partial review; assembly-local scope.
Drawing notation: 4"
Selected visually read printed evidence; partial review; assembly-local scope.
Numeric value unresolved
Unresolved or tentative lettering; numeric reading withheld. Partial source review.
Drawing notation: [vertical depth fraction unresolved]
Unresolved or tentative lettering; numeric reading withheld. Partial source review.
Numeric value unresolved
Unresolved or tentative lettering; numeric reading withheld. Partial source review.
Drawing notation: 22'-3⅛ [fraction unclear]
Unresolved or tentative lettering; numeric reading withheld. Partial source review.
Selected visually read printed evidence; partial review; assembly-local scope.
Drawing notation: Roller Shelves / Adv. shelves / See note on M.643
Selected visually read printed evidence; partial review; assembly-local scope.
Selected visually read printed evidence; partial review; assembly-local scope.
Drawing notation: PART SECT THRU MONEY DRAWER
Selected visually read printed evidence; partial review; assembly-local scope.
2008 order-number
Selected visually read printed evidence; partial review; assembly-local scope.
Drawing notation: 2008
Selected visually read printed evidence; partial review; assembly-local scope.
58 drawing-number
Selected visually read printed evidence; partial review; assembly-local scope.
Drawing notation: 58
Selected visually read printed evidence; partial review; assembly-local scope.
13.375 in
Printed vertical dimension beside the member profile at the right of PART SECT THRU MONEY DRAWER. Dimension applies between its marked profile stations; it is not money-drawer clear depth or overall counter height.
Drawing notation: 1′-1⅜″
Printed vertical dimension beside the member profile at the right of PART SECT THRU MONEY DRAWER. Dimension applies between its marked profile stations; it is not money-drawer clear depth or overall counter height.
Calculated from: parallel-img1004-m008
Exact literal code at prior long-chain locus. No explicit foot/inch marks verified here; no numeric length conversion and no dimensional source-question closure.
Drawing notation: 22-3⅛
Exact literal code at prior long-chain locus. No explicit foot/inch marks verified here; no numeric length conversion and no dimensional source-question closure.
19 in
Vertical overall plan depth; resolves prior unresolved money-drawer depth.
Drawing notation: 1′-7″
Vertical overall plan depth; resolves prior unresolved money-drawer depth.
6 count
Six circles drawn in money drawer plan, counted as layout features only; not six installed drawers.
Six circles drawn in money drawer plan, counted as layout features only; not six installed drawers.
8 in
Horizontal clear dimension in central maple compartment of plan.
Drawing notation: 8″
Horizontal clear dimension in central maple compartment of plan.
4 in
Horizontal clear dimension in right compartment of plan.
Drawing notation: 4″
Horizontal clear dimension in right compartment of plan.
Leader in money drawer section; filler thickness unresolved.
Drawing notation: Filler strip at sides
Leader in money drawer section; filler thickness unresolved.
Numeric value unresolved
New review still insufficient to resolve fraction; earlier null retained.
Drawing notation: 22′-3⅛ [fraction unresolved]
New review still insufficient to resolve fraction; earlier null retained.
267.125 in
Repeated overall counter dimension in targeted chain crop; printed length excludes inferred installed placement.
Drawing notation: 22′-3⅛″
Repeated overall counter dimension in targeted chain crop; printed length excludes inferred installed placement.
18.5 in
Left panel clear dimension in front elevation; one depicted panel bay, no assignment to all bays.
Drawing notation: 1′-6½″
Left panel clear dimension in front elevation; one depicted panel bay, no assignment to all bays.
3 in
Left stile dimension between adjacent panel bays in chain crop.
Drawing notation: 3″
Left stile dimension between adjacent panel bays in chain crop.
30.5 in
Vertical dimension of selected front elevation panel field; not counter total height.
Drawing notation: 2′-6½″
Vertical dimension of selected front elevation panel field; not counter total height.
0.25 in
Horizontal plan-chain thickness at coin-pocket/central-compartment divider; not assigned to every divider.
Drawing notation: ¼″
Horizontal plan-chain thickness at coin-pocket/central-compartment divider; not assigned to every divider.
3.75 in
First small central compartment below the upper maple compartment; plan clear dimension.
Drawing notation: 3¾″
First small central compartment below the upper maple compartment; plan clear dimension.
3.75 in
Lower small central compartment; independent printed dimension.
Drawing notation: 3¾″
Lower small central compartment; independent printed dimension.
0.25 in
Printed separator dimension between the two small central compartments in plan.
Drawing notation: ¼″
Printed separator dimension between the two small central compartments in plan.
