The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_1003 · Folder 193

Counter Too Cores W.P. Paplan Or Chestnat Not Oger Imider

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass sequential visual review of public/archive/drawings/complete-upright/IMG_1003.webp after catalogue and OCR. Regions are displayed access-image coordinates. No exact room geometry or modeling inference. Partial timed visual review: Bounded source-local shop detail/type evidence. No accepted geometry, complete extraction, installed quantity or inferred floor assignment. Partial timed visual review: Additive detailed follow-up after OCR and prior package comparison. Nine sequential access derivative inspections; IMG_1003 existing specification readings reused without duplication. Coordinates refer to unrotated access image. Only selected readable evidence; no model geometry or full-extraction claim. Partial timed visual review: No new image inspection; prior verified complete specification transcriptions reused. Thickness, slot spacing and materials not duplicated; physical component assignment and all companion/revision checks remain open. Partial timed visual review: Existing text reused; no new visual inspection or duplicated measurements.

Unresolved extraction work

all remaining fine notes, dimension chains, revisions and callouts
full-sheet completeness
floor and instance registration
unreviewed: Upper blocking/profile dimensions and full fabrication context
illegible: No new irrecoverable illegibility established; remaining upper fraction review pending
cropped: Native selected specification crop omits lower finish rows and upper profile
companion: Counter source/type membership and installed room association unresolved; W.P. abbreviation not expanded beyond evidence
Targeted high-resolution fraction/leader review
All regional dimensions and component marks
Companion-sheet/source registration
No modeling/checking performed

Download OCR observations (unverified)

Loading the selected drawing…

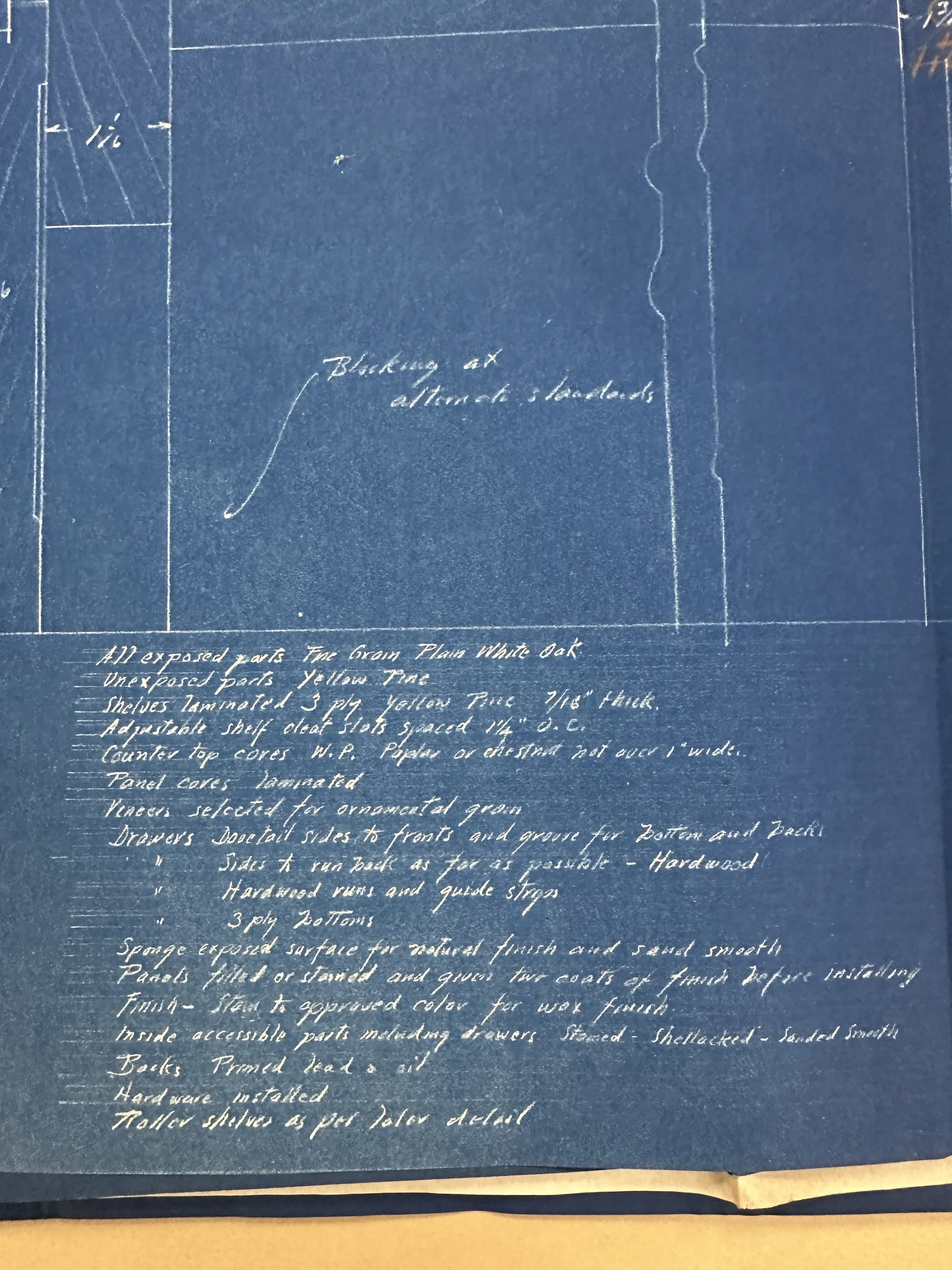

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
