Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass sequential visual review of public/archive/drawings/complete-upright/IMG_1001.webp after catalogue and OCR. Regions are displayed access-image coordinates. No exact room geometry or modeling inference. Partial timed visual review: undefined Partial timed visual review: Additive detailed follow-up after OCR and prior package comparison. Nine sequential access derivative inspections; IMG_1003 existing specification readings reused without duplication. Coordinates refer to unrotated access image. Only selected readable evidence; no model geometry or full-extraction claim. Partial timed visual review: Bounded fine-detail review; access-image coordinates remain normalized before actual stated clockwise rotation. Prior verified readings reused without duplicate extraction. Partial timed visual review: Existing text reused; no new visual inspection or duplicated measurements. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visually read printed evidence; partial review; assembly-local scope.

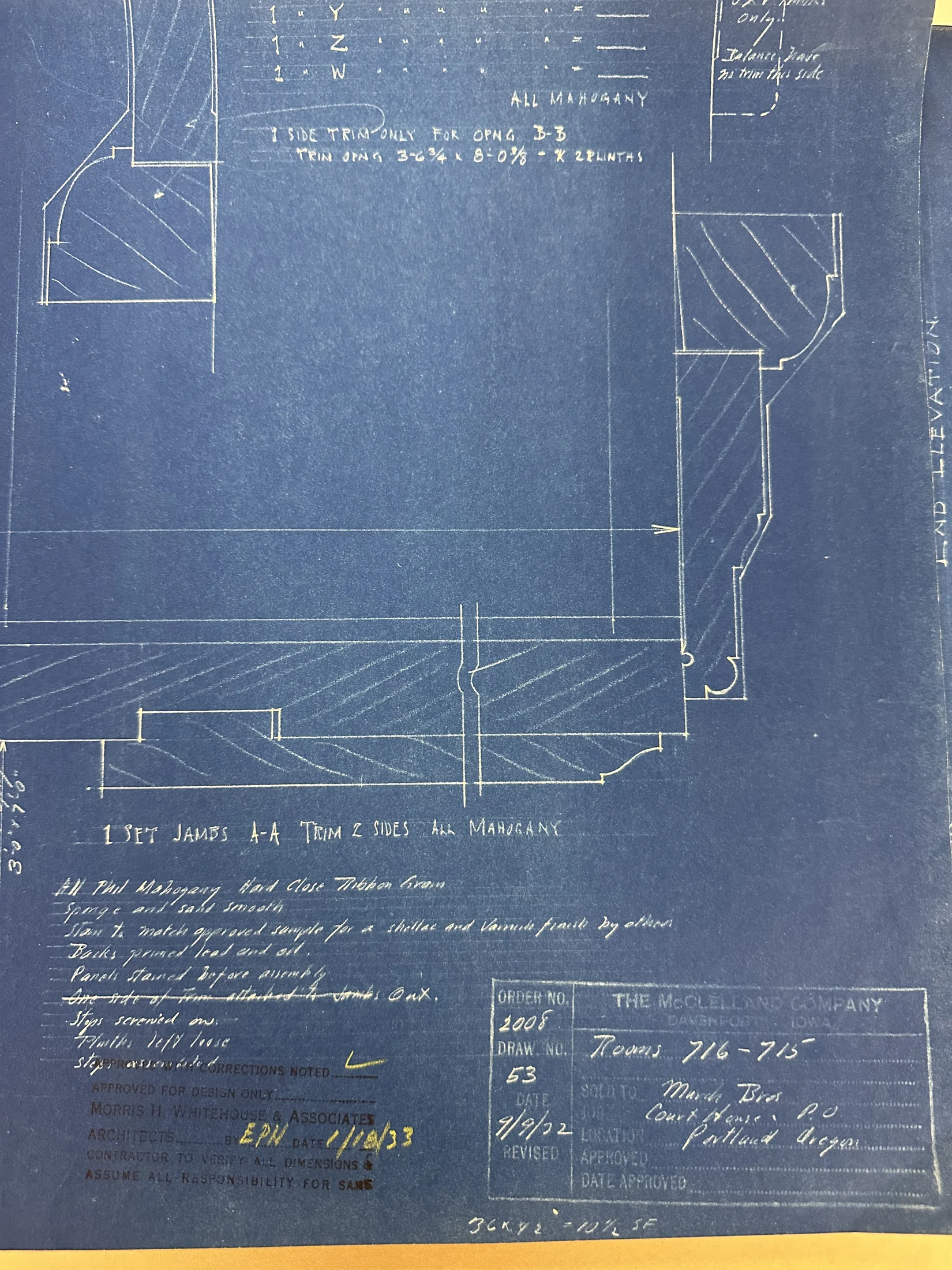

Drawing notation: Rooms 716-715
