The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

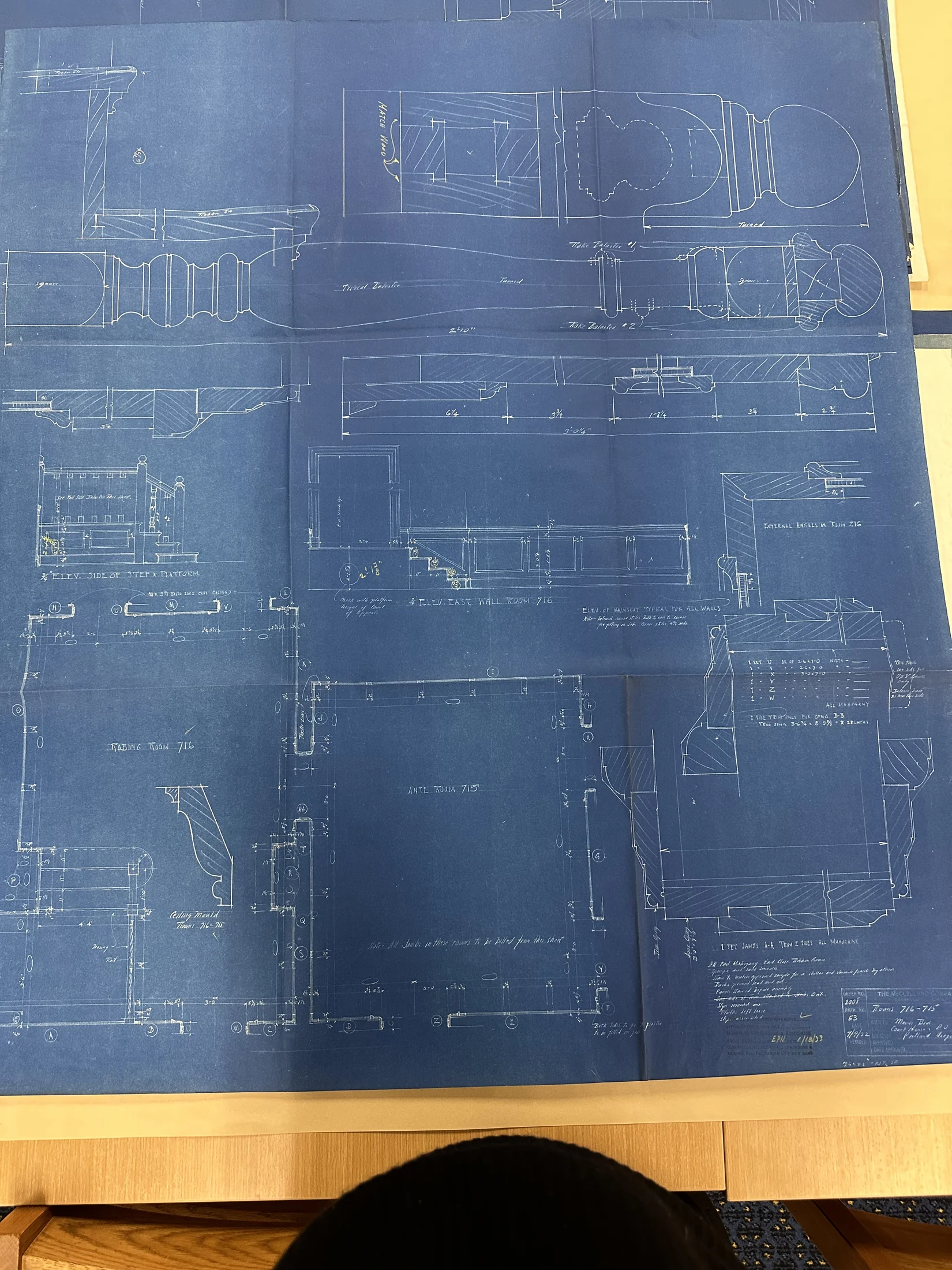

IMG_0999 · Folder 193

#Ellv. Fast Wall Room 716

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass visual review of public/archive/drawings/complete-upright/IMG_0999.webp after catalogue and OCR. Coordinates are normalized access-image coordinates before any rotation. Actual access image requires 0 degrees rotation to read. Selected evidence only; no geometry/modeling inference. Cropped companion sheets visible behind foreground drawing are excluded. Partial timed visual review: undefined Partial timed visual review: Additive detailed follow-up after OCR and prior package comparison. Nine sequential access derivative inspections; IMG_1003 existing specification readings reused without duplication. Coordinates refer to unrotated access image. Only selected readable evidence; no model geometry or full-extraction claim. Partial timed visual review: Bounded fine-detail review; access-image coordinates remain normalized before actual stated clockwise rotation. Prior verified readings reused without duplicate extraction. Partial timed visual review: Targeted fraction review; source-local readings only.

Unresolved extraction work

Complete small-dimension and callout transcription
Review handwritten revisions and faint annotations
Identify all instances and companion detail relationships
Register detail geometry against building locations
Complete other newel/baluster/wainscot controls and room registration remain open.
Targeted high-resolution fraction/leader review
All regional dimensions and component marks
Companion-sheet/source registration
No modeling/checking performed

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

18 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img0999-robing-room-wainscotverified · printed

robing_room_assignment

Robing Room 716

716 room-number

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: Robing Room 716

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

ante_room_assignment

Ante Room 715

715 room-number

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: Ante Room 715

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

wainscot_applicability

Elev. of wainscot typical for all walls

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: Elev. of wainscot typical for all walls

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

east_wall_elevation_assignment

Elev. east wall room 716

716 room-number

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: Elev. east wall room 716

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

stool_source

Note all stools in these rooms to be billed from this sheet

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: Note all stools in these rooms to be billed from this sheet

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

jamb_trim_material

1 set jambs A-A trim 2 sides all mahogany

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: 1 set jambs A-A trim 2 sides all mahogany

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

trim_sides_quantity

Trim 2 sides

2 count

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: Trim 2 sides

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

baluster_length

2'-10"

34 in

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: 2'-10"

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

baluster_profile

Typical baluster; take baluster +2

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: Typical baluster; take baluster +2

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

approval_date

EPN 1/18/33

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: EPN 1/18/33

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

external_angle_scope

External angles in room 716

716 room-number

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: External angles in room 716

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

master_wood_annotation

Master wood

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0999 · 53 · Locate on drawing ↗

Drawing notation: Master wood

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0999-robing-room-wainscotverified · printed

baluster_turning

Turned

Central baluster shaft carries turning instruction; species not derived.

IMG_0999 · Locate on drawing ↗

Drawing notation: Turned

Central baluster shaft carries turning instruction; species not derived.

parallel-img0999-robing-room-wainscotverified · printed

newel_turning

Turned

Top newel terminal dimension line carries turning instruction.

IMG_0999 · Locate on drawing ↗

Drawing notation: Turned

Top newel terminal dimension line carries turning instruction.

parallel-img0999-robing-room-wainscotverified · printed

baluster_end_form

Square

Left baluster end is explicitly square.

IMG_0999 · Locate on drawing ↗

Drawing notation: Square

Left baluster end is explicitly square.

parallel-img0999-robing-room-wainscotverified · printed

step_platform_elevation

ELEV. SIDE OF STEP & PLATFORM

Caption establishes drawing view, not platform installed dimensions.

IMG_0999 · Locate on drawing ↗

Drawing notation: ELEV. SIDE OF STEP & PLATFORM

Caption establishes drawing view, not platform installed dimensions.

parallel-img0999-robing-room-wainscotunreviewed · printed

newel_base_overall_width_unresolved

3′-0[fraction]″

Numeric value unresolved

Horizontal dimension under enlarged top newel/base detail; fraction requires dedicated crop.

IMG_0999 · Locate on drawing ↗

Drawing notation: 3′-0[fraction]″

Horizontal dimension under enlarged top newel/base detail; fraction requires dedicated crop.

parallel-img0999-robing-room-wainscotverified · printed

newel_base_overall_width_resolution

3′-0¼″

36.25 in

Overall horizontal dimension below enlarged newel/base profile; source-local width only.

IMG_0999 · Locate on drawing ↗

Drawing notation: 3′-0¼″

Overall horizontal dimension below enlarged newel/base profile; source-local width only.

Calculated from: detail-20261011aa-milldoor-13
