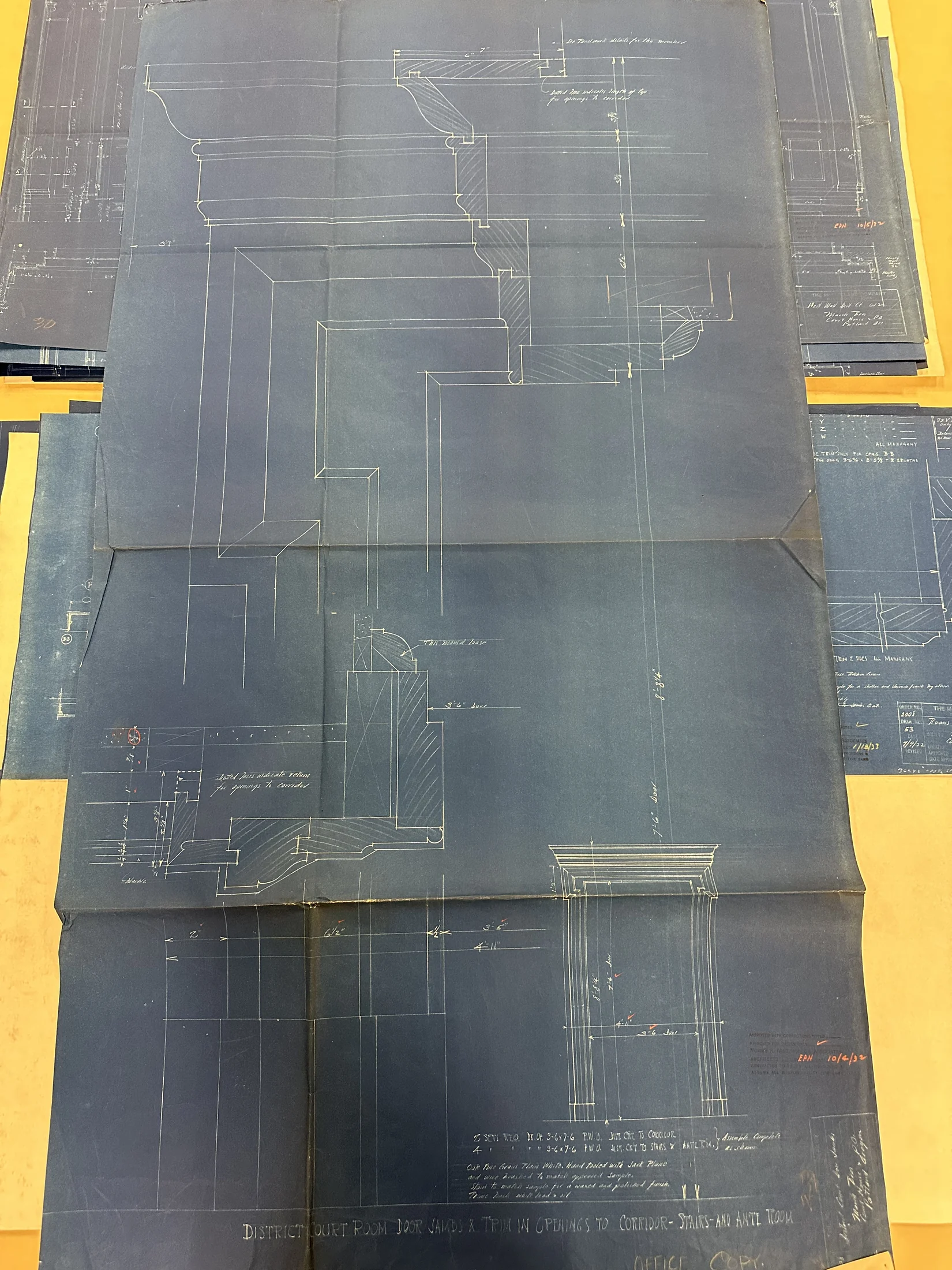

IMG_0998 · Folder 193

District Durt Room Door Vanda Trin Openings To Corridor - Stairs-And Ante Toom

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass visual review of public/archive/drawings/complete-upright/IMG_0998.webp after catalogue and OCR. Coordinates are normalized access-image coordinates before any rotation. Actual access image requires 0 degrees rotation to read. Selected evidence only; no geometry/modeling inference. Cropped companion sheets visible behind foreground drawing are excluded. Partial timed visual review: undefined Partial timed visual review: Additive detailed follow-up after OCR and prior package comparison. Nine sequential access derivative inspections; IMG_1003 existing specification readings reused without duplication. Coordinates refer to unrotated access image. Only selected readable evidence; no model geometry or full-extraction claim. Partial timed visual review: Bounded fine-detail review; access-image coordinates remain normalized before actual stated clockwise rotation. Prior verified readings reused without duplicate extraction. Partial timed visual review: Targeted fraction review; source-local readings only.

Unresolved extraction work
  • Complete small-dimension and callout transcription
  • Review handwritten revisions and faint annotations
  • Identify all instances and companion detail relationships
  • Register detail geometry against building locations
  • Complete remaining dimensions, notes and revisions; physical endpoint and opening registration remain open.
  • Targeted high-resolution fraction/leader review
  • All regional dimensions and component marks
  • Companion-sheet/source registration
  • No modeling/checking performed

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

16 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img0998-court-door-jamb-trimverified · printed

door_height

7'-6" Door

90 in

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0998 · Locate on drawing ↗

Drawing notation: 7'-6" Door

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0998-court-door-jamb-trimverified · printed

door_width

3'-6" Door

42 in

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0998 · Locate on drawing ↗

Drawing notation: 3'-6" Door

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0998-court-door-jamb-trimverified · printed

trim_overall_width

4'-11"

59 in

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0998 · Locate on drawing ↗

Drawing notation: 4'-11"

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0998-court-door-jamb-trimverified · printed

jamb_detail_depth

6½"

6.5 in

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0998 · Locate on drawing ↗

Drawing notation: 6½"

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0998-court-door-jamb-trimverified · printed

wood_species

Oak fine grain plain white

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0998 · Locate on drawing ↗

Drawing notation: Oak fine grain plain white

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0998-court-door-jamb-trimverified · printed

surface_tooling

Hand tooled with jack plane

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0998 · Locate on drawing ↗

Drawing notation: Hand tooled with jack plane

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0998-court-door-jamb-trimverified · printed

marble_base

Marble

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0998 · Locate on drawing ↗

Drawing notation: Marble

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0998-court-door-jamb-trimverified · printed

approval_date

EPN 10/4/32

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0998 · Locate on drawing ↗

Drawing notation: EPN 10/4/32

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0998-court-door-jamb-trimunreviewed · printed

corridor_return

omit this ... return for openings to corridor

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0998 · Locate on drawing ↗

Drawing notation: omit this ... return for openings to corridor

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0998-court-door-jamb-trimverified · printed

corridor_jamb_set_quantity

2 SETS REQ. ... TO CORRIDOR

2 sets

Printed billing quantity for corridor jamb sets; no individual opening locations established.

IMG_0998 · Locate on drawing ↗

Drawing notation: 2 SETS REQ. ... TO CORRIDOR

Printed billing quantity for corridor jamb sets; no individual opening locations established.

parallel-img0998-court-door-jamb-trimverified · printed

stairs_ante_jamb_set_quantity

4 ... TO STAIRS & ANTE RM

4 sets

Printed billing quantity for stairs and ante-room jamb sets; physical instance assignment unresolved.

IMG_0998 · Locate on drawing ↗

Drawing notation: 4 ... TO STAIRS & ANTE RM

Printed billing quantity for stairs and ante-room jamb sets; physical instance assignment unresolved.

parallel-img0998-court-door-jamb-trimverified · printed

corridor_return_omission

omit this moulded return for openings to corridor

Resolves wording of earlier tentative corridor-return note only.

IMG_0998 · Locate on drawing ↗

Drawing notation: omit this moulded return for openings to corridor

Resolves wording of earlier tentative corridor-return note only.

parallel-img0998-court-door-jamb-trimverified · printed

marble_base_relationship

To marble base

Leader at base termination references marble base.

IMG_0998 · Locate on drawing ↗

Drawing notation: To marble base

Leader at base termination references marble base.

parallel-img0998-court-door-jamb-trimverified · printed

cornice_horizontal_member_dimension

7″

7 in

Uppermost horizontal dimension of cornice section; full member identity and endpoints need registration.

IMG_0998 · Locate on drawing ↗

Drawing notation: 7″

Uppermost horizontal dimension of cornice section; full member identity and endpoints need registration.

parallel-img0998-court-door-jamb-trimunreviewed · printed

outer_trim_height_unresolved

8′-8[fraction]″

Numeric value unresolved

Tall outer-height chain seen on right of enlarged jamb detail; fraction/endpoint class not resolved at derivative resolution.

IMG_0998 · Locate on drawing ↗

Drawing notation: 8′-8[fraction]″

Tall outer-height chain seen on right of enlarged jamb detail; fraction/endpoint class not resolved at derivative resolution.

parallel-img0998-court-door-jamb-trimverified · printed

outer_trim_height_resolution

8′-8¼″

104.25 in

Tall outside-height chain adjacent to enlarged jamb; resolves fraction only. Exact physical endpoint class still requires companion registration.

IMG_0998 · Locate on drawing ↗

Drawing notation: 8′-8¼″

Tall outside-height chain adjacent to enlarged jamb; resolves fraction only. Exact physical endpoint class still requires companion registration.

Calculated from: detail-20261011aa-milldoor-12
