464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

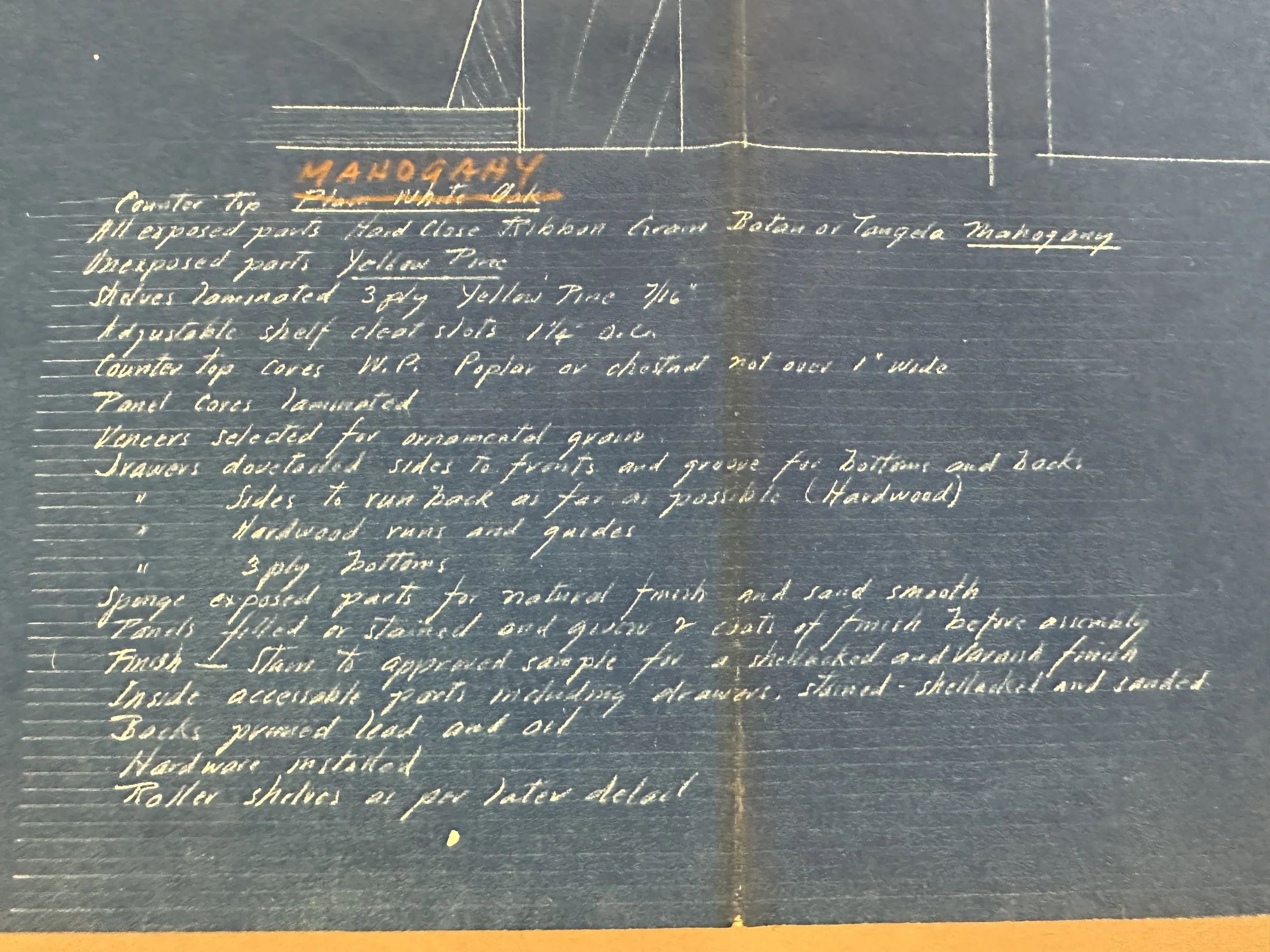

IMG_0996 · Folder 193

Counter Top Cores W.P. Poplar Or Choad Not Over I Wade

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass visual review of public/archive/drawings/complete-upright/IMG_0996.webp after catalogue and OCR. Coordinates are normalized access-image coordinates before any rotation. Actual access image requires 0 degrees rotation to read. Selected evidence only; no geometry/modeling inference. Cropped companion sheets visible behind foreground drawing are excluded. Partial timed visual review: undefined Partial timed visual review: Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Partial timed visual review: undefined

Unresolved extraction work
  • Complete small-dimension and callout transcription
  • Review handwritten revisions and faint annotations
  • Identify all instances and companion detail relationships
  • Register detail geometry against building locations
  • Installed instances, quantities and source-to-building registration remain unestablished.
  • Complete dimensions, machining profiles, companion sheets and governing revision authority remain open.
  • Species spelling unresolved; core recipe reused without new assembly geometry.
  • Remaining fine dimensions and handwritten revisions require targeted higher-resolution evidence
  • Companion registration and physical instance mapping remain unresolved
  • Governing revision approval and material sample
  • Room/type assignment absent; source drawing above notes is cropped away
  • Bataan/Tangile spelling remains unreviewed; no source-silent species substitution
  • Nominal grain/material recipes do not establish assembly geometry
  • Actual drawer clear envelope, veneer thickness, grooves and part quantities
  • Later roller shelf detail unidentified; hardware only initialled
  • No finish color/sample or room assignment
  • Non-numeric species spelling issue remains in detail-metal-20261011f-996-m1
  • Whole-image extraction remains partial; uninspected or illegible fine notes/profiles are not certified closed
  • No model, renderer or architectural acceptance changed

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

26 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img0996-counter-specificationverified · printed

countertop_material_original

Counter Top Plain White Oak (crossed out)

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Counter Top Plain White Oak (crossed out)

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

countertop_material_revision

MAHOGANY

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: MAHOGANY

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

exposed_wood_species

All exposed parts Hard Close Ribbon Grain Bataan or Tangile Mahogany

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: All exposed parts Hard Close Ribbon Grain Bataan or Tangile Mahogany

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

unexposed_wood_species

Unexposed parts Yellow Pine

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Unexposed parts Yellow Pine

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

stave_construction

Staves laminated 3 ply

3 plies

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Staves laminated 3 ply

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

stave_species

Yellow Pine

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Yellow Pine

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

stave_thickness

7/16"

0.4375 in

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: 7/16"

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

shelf_cleat_slot_spacing

1¼" o.c.

1.25 in

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: 1¼" o.c.

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

countertop_core_species

W.P. Poplar or chestnut

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: W.P. Poplar or chestnut

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

countertop_core_max_width

not over 1" wide

1 in

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: not over 1" wide

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

panel_core_construction

Panel cores laminated

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Panel cores laminated

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

veneer_selection

Veneers selected for ornamental grain

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Veneers selected for ornamental grain

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

drawer_joinery

Drawers dovetailed sides to fronts and groove for bottoms and backs

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Drawers dovetailed sides to fronts and groove for bottoms and backs

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

drawer_side_extension

Sides to run back as far as possible (Hardwood)

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Sides to run back as far as possible (Hardwood)

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

drawer_runs_guides_material

Hardwood runs and guides

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Hardwood runs and guides

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

drawer_bottom_construction

3 ply bottoms

3 plies

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: 3 ply bottoms

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

exposed_surface_preparation

Sponge exposed parts for natural finish and sand smooth

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Sponge exposed parts for natural finish and sand smooth

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

preassembly_finish_coats

2 coats of finish before assembly

2 coats

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: 2 coats of finish before assembly

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

panel_sealing

Panels filled or stained and given 2 coats of finish before assembly

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Panels filled or stained and given 2 coats of finish before assembly

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

finish

Stain to approved sample; dull rubbed and varnish finish

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Stain to approved sample; dull rubbed and varnish finish

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

inaccessible_surface_finish

Inside inaccessible parts including drawers stained, shellacked and sanded

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Inside inaccessible parts including drawers stained, shellacked and sanded

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

back_priming

Backs primed lead and oil

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Backs primed lead and oil

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

hardware

Hardware installed

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Hardware installed

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationverified · printed

roller_shelf_reference

Roller shelves as per later detail

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0996 · Locate on drawing ↗

Drawing notation: Roller shelves as per later detail

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0996-counter-specificationunreviewed · observed

wood_species_literal_spelling_candidate

Batan or Tangela Mahogany [literal candidate; middle/terminal letters uncertain]

Fresh native text crop does not independently confirm prior Bataan/Tangile spelling. Candidate appearance is Batan/Tangela, but uncertain cursive letters remain unresolved. No botanical substitution or revision choice. Original top note and colored MAHOGANY revision remain separate.

IMG_0996 · Locate on drawing ↗

Drawing notation: Batan or Tangela Mahogany [literal candidate; middle/terminal letters uncertain]

Fresh native text crop does not independently confirm prior Bataan/Tangile spelling. Candidate appearance is Batan/Tangela, but uncertain cursive letters remain unresolved. No botanical substitution or revision choice. Original top note and colored MAHOGANY revision remain separate.

Conflicting readings: detail-metal-20261011f-996-m1 parallel-img0996-counter-specification-m003

parallel-img0996-counter-specificationunreviewed · printed

wood-species-spelling-review

Bataan or Tangile Mahogany

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Existing transcription retained; handwriting resembles Bataan/Tangile, spelling needs independent verification. No replacement species invented.

IMG_0996 · Locate on drawing ↗

Drawing notation: Bataan or Tangile Mahogany

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Existing transcription retained; handwriting resembles Bataan/Tangile, spelling needs independent verification. No replacement species invented.
