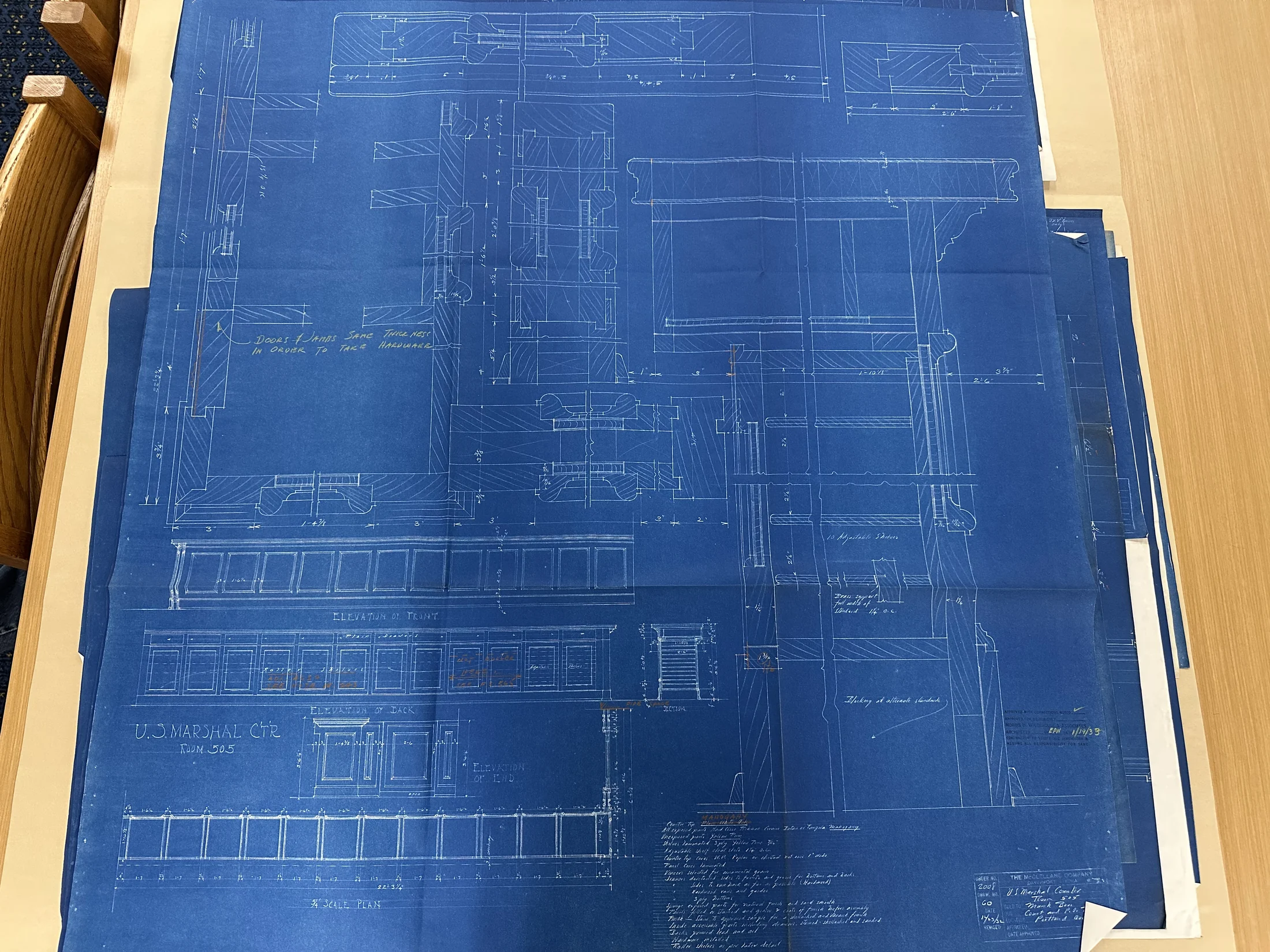

IMG_0994 · Folder 193

3 Sale Plan

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass visual review of public/archive/drawings/complete-upright/IMG_0994.webp after catalogue and OCR. Coordinates are normalized access-image coordinates before any rotation. Actual access image requires 0 degrees rotation to read. Selected evidence only; no geometry/modeling inference. Cropped companion sheets visible behind foreground drawing are excluded. Partial timed visual review: undefined Partial timed visual review: Bounded hardware, profile and support note review; no building placement or accepted geometry. Partial timed visual review: Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Partial timed visual review: undefined

Unresolved extraction work
  • Complete small-dimension and callout transcription
  • Review handwritten revisions and faint annotations
  • Identify all instances and companion detail relationships
  • Register detail geometry against building locations
  • Installed instances, quantities and source-to-building registration remain unestablished.
  • Complete dimensions, machining profiles, companion sheets and governing revision authority remain open.
  • Length units of fresh fractions, precise support/component assignment and original/revision profile authority remain open.
  • Remaining section and profile dimensions and witness endpoints
  • Companion revision authority, installed instance registration and quantities
  • Remaining fine dimensions and handwritten revisions require targeted higher-resolution evidence
  • Companion registration and physical instance mapping remain unresolved
  • illegible: lower profile thickness fractions and circled original/revised value
  • unreviewed: hardware identities, all other profile controls and view endpoints
  • awaiting-companion: Room505 physical registration and companion revision authority

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

16 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img0994-marshal-counterverified · printed

room_assignment

U.S. Marshal Ctr Room 505

505 room-number

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: U.S. Marshal Ctr Room 505

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0994-marshal-counterverified · printed

door_jamb_thickness_relation

Doors & jambs same thickness in order to take hardware

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: Doors & jambs same thickness in order to take hardware

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0994-marshal-counterverified · printed

approval_date

EPN 1/19/33

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: EPN 1/19/33

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0994-marshal-counterverified · printed

adjustable_shelf_quantity

10 adjustable shelves

10 count

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: 10 adjustable shelves

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0994-marshal-counterverified · printed

blocking_standard

Blocking at alternate standards

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: Blocking at alternate standards

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0994-marshal-counterverified · printed

plan_scale

¾ scale plan

0.75 in/ft

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: ¾ scale plan

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0994-marshal-counterverified · printed

elevation_views

Elevation of front; elevation of back; elevation of end

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: Elevation of front; elevation of back; elevation of end

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0994-marshal-counterverified · observed

support_note_same_locus_literal

Brass support / full width of / Standard 1¼ o.c.

Same lower-section note previously called Drawer supports/14 inches. Native crop visibly reads Brass support and a stacked quarter after 1. The unit is not independently witnessed; no inch character is inserted. The note is located immediately left of the lower horizontal thickness leader. Previous readings remain intact.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: Brass support / full width of / Standard 1¼ o.c.

Same lower-section note previously called Drawer supports/14 inches. Native crop visibly reads Brass support and a stacked quarter after 1. The unit is not independently witnessed; no inch character is inserted. The note is located immediately left of the lower horizontal thickness leader. Previous readings remain intact.

Conflicting readings: detail-metal-20261011f-994-m1 closure1011aa-img994-support-note-resolution roomshop1013m-img_0994-drawer-support-spacing-resolution

parallel-img0994-marshal-counterverified · observed

support_spacing_numeric_glyph

1¼ o.c.

1.25 unlabeled-number

Numeric glyph within the exact same note as old 14-inch readings: a whole 1 followed by vertically set 1/4, not the integer 14. This records a source glyph, not inch spacing. No same-value confirmation is possible.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: 1¼ o.c.

Numeric glyph within the exact same note as old 14-inch readings: a whole 1 followed by vertically set 1/4, not the integer 14. This records a source glyph, not inch spacing. No same-value confirmation is possible.

Calculated from: witness1014k-0994-support-note-literal

Conflicting readings: detail-metal-20261011f-994-m1 closure1011aa-img994-support-note-resolution roomshop1013m-img_0994-drawer-support-spacing-resolution

parallel-img0994-marshal-counterverified · observed

lower_section_horizontal_thickness_numeric_glyph

1 1/16

1.0625 unlabeled-number

Native crop resolves the same lower horizontal thickness leader targeted by roomshop lower-profile-control-null. The fraction is one sixteenth. No inch mark is independently identified; the old null inch property remains open pending units, endpoints and component interpretation.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: 1 1/16

Native crop resolves the same lower horizontal thickness leader targeted by roomshop lower-profile-control-null. The fraction is one sixteenth. No inch mark is independently identified; the old null inch property remains open pending units, endpoints and component interpretation.

Conflicting readings: roomshop1013m-img_0994-lower-profile-control-null

parallel-img0994-marshal-counterunreviewed · printed

drawer_support_spacing_reading_resolution

Drawer supports full width of standard 14" o.c.

Source-local detail only. Access crop confirms prior 14-inch candidate and full-width-of-standard note; reuses numeric reading instead of copying it. Review correction review-correction-20261014k-counter-support-note: Same IMG0994 original lower-section note reads Brass support / full width of / Standard1¼ o.c., not Drawer supports /14in. Preserve the old text and withdraw its verified status; neither unit convention nor precise component linkage is established by the new literal reading.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: Drawer supports full width of standard 14" o.c.

Source-local detail only. Access crop confirms prior 14-inch candidate and full-width-of-standard note; reuses numeric reading instead of copying it.

parallel-img0994-marshal-counterunreviewed · printed

drawer-support-spacing

Drawer supports full width … standard 14" o.c.

14 in

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. 14 inch spacing appears legible but note wording and exact support target need crop verification.

IMG_0994 · 60 · Locate on drawing ↗

Drawing notation: Drawer supports full width … standard 14" o.c.

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. 14 inch spacing appears legible but note wording and exact support target need crop verification.

parallel-img0994-marshal-counterunreviewed · printed

drawer support spacing

Drawer supports full width of standard 14″ o.c.

14 in

Master crop verifies local 14-inch on-centre support note. Scope excludes counter bay spacing or installed support count. Review correction review-correction-20261014k-counter-support-spacing: Native reinspection of the same IMG0994 lower-section note separates whole1 and stacked quarter, not integer14, and reads Brass support rather than Drawer supports. The new1.25 glyph has no established unit. Withdraw the previous14in interpretation while retaining value and notation; no replacement inch spacing or installed support array is authorized.

IMG_0994 · Locate on drawing ↗

Drawing notation: Drawer supports full width of standard 14″ o.c.

Master crop verifies local 14-inch on-centre support note. Scope excludes counter bay spacing or installed support count.

Calculated from: detail-metal-20261011f-994-m1, closure1011aa-img994-support-note-resolution

parallel-img0994-marshal-counterverified · printed

upper right section rebate control

7/16

0.4375 in

Small horizontal control at upper right moulded section, separate from sash rebate at716.

IMG_0994 · Locate on drawing ↗

Drawing notation: 7/16

Small horizontal control at upper right moulded section, separate from sash rebate at716.

parallel-img0994-marshal-counterverified · printed

upper right section moulded-edge horizontal control

13/16

0.8125 in

Adjacent printed 13/16 horizontal control to right of rebate. No complete moulding profile inferred.

IMG_0994 · Locate on drawing ↗

Drawing notation: 13/16

Adjacent printed 13/16 horizontal control to right of rebate. No complete moulding profile inferred.

parallel-img0994-marshal-counterillegible · printed

lower section thickness fraction unresolved

1 [fraction]

Numeric value unresolved

Right lower section horizontal thickness fraction remains uncertain in crop. No comparison-based substitution from left side.

IMG_0994 · Locate on drawing ↗

Drawing notation: 1 [fraction]

Right lower section horizontal thickness fraction remains uncertain in crop. No comparison-based substitution from left side.
