The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

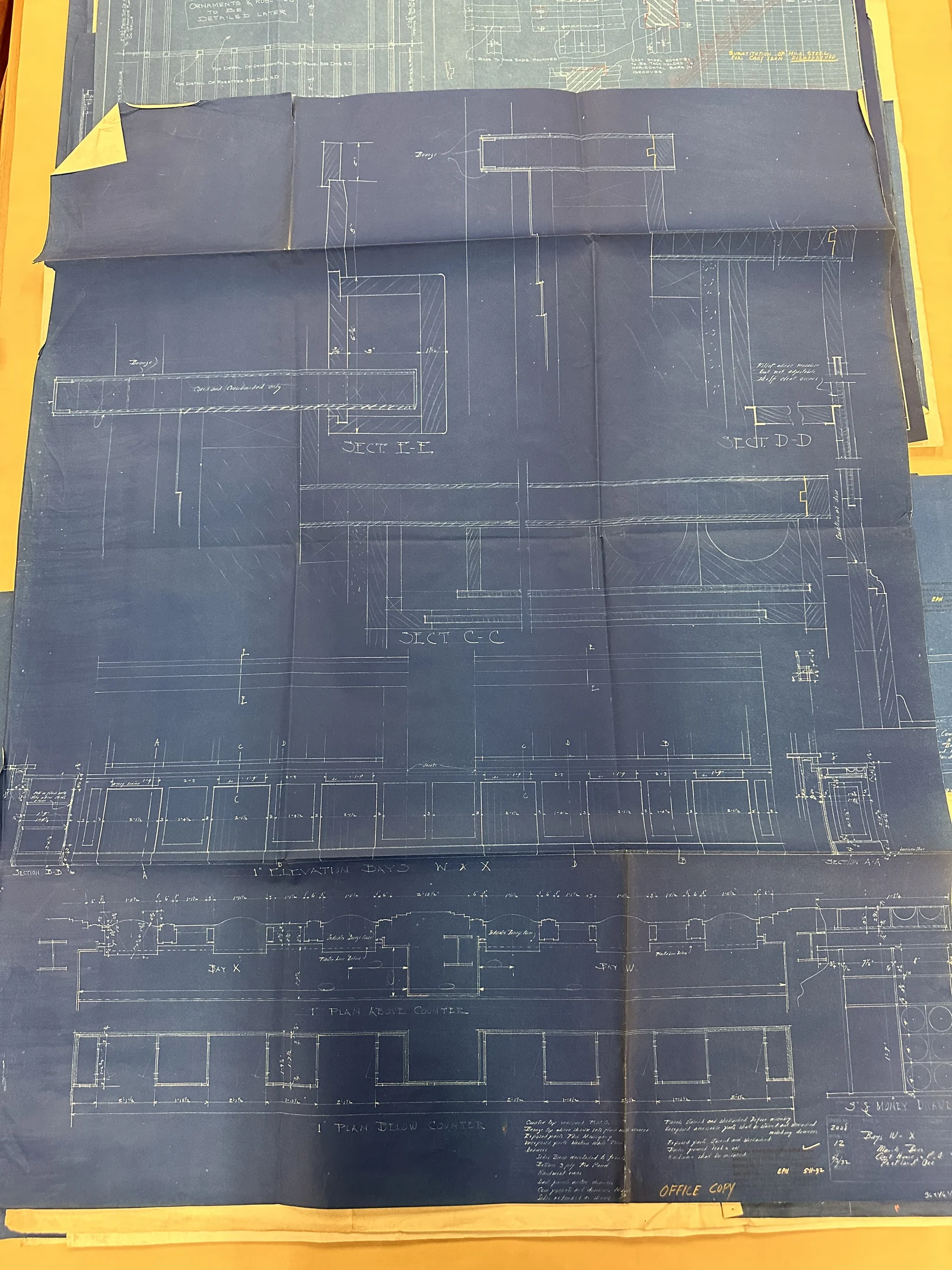

IMG_0993 · Folder 193

I Plan Arove Counter

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass visual review of public/archive/drawings/complete-upright/IMG_0993.webp after catalogue and OCR. Coordinates are normalized access-image coordinates before any rotation. Actual access image requires 0 degrees rotation to read. Selected evidence only; no geometry/modeling inference. Cropped companion sheets visible behind foreground drawing are excluded. Partial timed visual review: undefined Partial timed visual review: Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Partial timed visual review: undefined

Unresolved extraction work
  • Complete small-dimension and callout transcription
  • Review handwritten revisions and faint annotations
  • Identify all instances and companion detail relationships
  • Register detail geometry against building locations
  • Installed instances, quantities and source-to-building registration remain unestablished.
  • Complete dimensions, machining profiles, companion sheets and governing revision authority remain open.
  • Remaining fine dimensions and handwritten revisions require targeted higher-resolution evidence
  • Companion registration and physical instance mapping remain unresolved
  • illegible: counter-top abbreviation and adjacent fine specification text
  • unreviewed: remaining dimensions, hardware names and all other sections
  • cropped: right title and chain endpoint
  • awaiting-companion: counter room/agency/installed instance assignment

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

16 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img0993-counter-bays-wxverified · printed

bay_marks

Bay X; Bay W

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: Bay X; Bay W

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0993-counter-bays-wxverified · printed

section_marks

Sect. C-C; Sect. D-D; Sect. E-E

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: Sect. C-C; Sect. D-D; Sect. E-E

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0993-counter-bays-wxverified · printed

money_drawer_detail

Money drawer

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: Money drawer

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0993-counter-bays-wxverified · printed

plan_above_label

1" Plan Above Counter

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: 1" Plan Above Counter

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0993-counter-bays-wxverified · printed

plan_below_label

1" Plan Below Counter

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: 1" Plan Below Counter

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0993-counter-bays-wxverified · printed

counter_surface_material

Bronze

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: Bronze

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0993-counter-bays-wxverified · printed

approval_mark

EPN 5/11/32

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: EPN 5/11/32

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0993-counter-bays-wxunreviewed · observed

bottom-specification-transcription-unresolved

Unresolved

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Two lower note blocks visible; fine handwriting cannot be reliably transcribed from access derivative. Higher-resolution crops required.

IMG_0993 · 12 · Locate on drawing ↗

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Two lower note blocks visible; fine handwriting cannot be reliably transcribed from access derivative. Higher-resolution crops required.

parallel-img0993-counter-bays-wxverified · printed

drawer side material

Sides Birch

Drawer construction note only; no counter-frame species inferred.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: Sides Birch

Drawer construction note only; no counter-frame species inferred.

parallel-img0993-counter-bays-wxverified · printed

drawer side/front joint

Sides Birch dovetailed to front

Local drawer note specifies dovetail side-to-front connection.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: Sides Birch dovetailed to front

Local drawer note specifies dovetail side-to-front connection.

parallel-img0993-counter-bays-wxverified · printed

drawer bottom material

Bottom 3 ply Fir Panel

Local drawer bottom specification; thickness unprinted in selected text.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: Bottom 3 ply Fir Panel

Local drawer bottom specification; thickness unprinted in selected text.

parallel-img0993-counter-bays-wxverified · printed

drawer bottom ply count

3 ply

3 plies

Layer count only, not sheet thickness or drawer quantity.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: 3 ply

Layer count only, not sheet thickness or drawer quantity.

parallel-img0993-counter-bays-wxverified · printed

drawer run material

Hardwood Runs

Run material class, species and run cross section unresolved.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: Hardwood Runs

Run material class, species and run cross section unresolved.

parallel-img0993-counter-bays-wxverified · printed

counter panel preassembly finish

Panels Stained and Shellacked before assembly

Specification applies to panels in this BayW/BayX counter sheet, separate from Robing716 original/revised finish notes.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: Panels Stained and Shellacked before assembly

Specification applies to panels in this BayW/BayX counter sheet, separate from Robing716 original/revised finish notes.

parallel-img0993-counter-bays-wxverified · printed

counter exposed-parts finish

Exposed parts Stained and Shellacked

Counter exposed-parts local finish note; stain colour and approved sample authority unresolved.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: Exposed parts Stained and Shellacked

Counter exposed-parts local finish note; stain colour and approved sample authority unresolved.

parallel-img0993-counter-bays-wxverified · printed

counter back priming

Backs primed lead & oil

Back priming only; no exposed finish substitution.

IMG_0993 · 12 · Locate on drawing ↗

Drawing notation: Backs primed lead & oil

Back priming only; no exposed finish substitution.
