The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

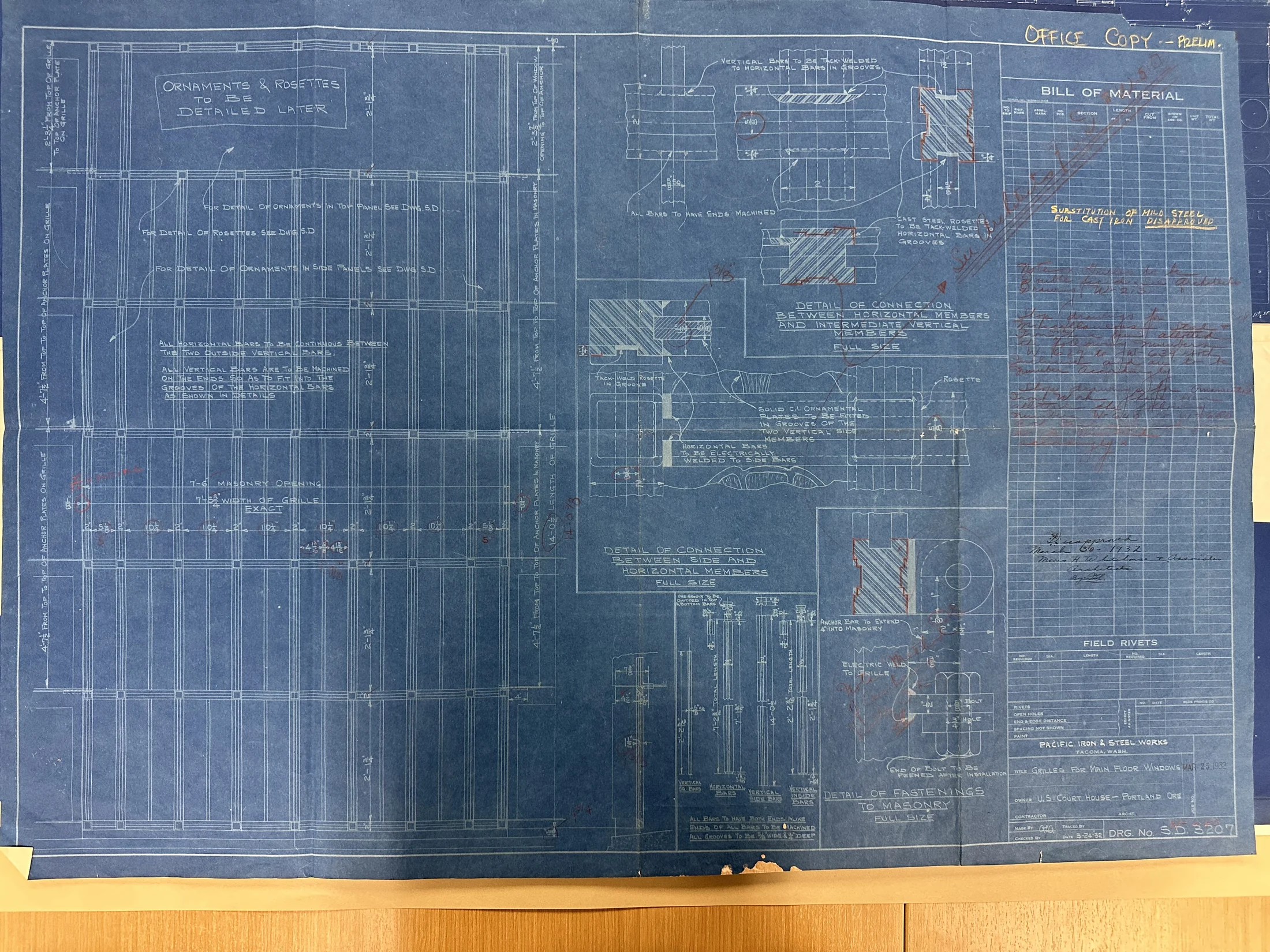

IMG_0992 · Folder 193

Ornaments & Rosettes

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass visual review of public/archive/drawings/complete-upright/IMG_0992.webp after catalogue and OCR. Coordinates are normalized access-image coordinates before any rotation. Actual access image requires 0 degrees rotation to read. Selected evidence only; no geometry/modeling inference. Cropped companion sheets visible behind foreground drawing are excluded. Partial timed visual review: undefined Partial timed visual review: Bounded hardware, profile and support note review; no building placement or accepted geometry. Partial timed visual review: Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Partial timed visual review: Depicted type/component, shop order or source-local assembly only. Components and grille order quantities do not create installed fixtures or establish electrical outlet-to-type assignments.

Unresolved extraction work
  • Complete small-dimension and callout transcription
  • Review handwritten revisions and faint annotations
  • Identify all instances and companion detail relationships
  • Register detail geometry against building locations
  • Installed instances, quantities and source-to-building registration remain unestablished.
  • Complete dimensions, machining profiles, companion sheets and governing revision authority remain open.
  • Full red bill and profile revision transcription remains unresolved.
  • Remaining section and profile dimensions and witness endpoints
  • Companion revision authority, installed instance registration and quantities
  • Remaining fine dimensions and handwritten revisions require targeted higher-resolution evidence
  • Companion registration and physical instance mapping remain unresolved
  • Remaining fine fractions, outline profiles, machining endpoints and marginal handwriting require targeted master review.
  • Full companion and revision authority audit remains open.
  • Installed instance quantities, room/floor placement, hosts and source-to-building registration are unestablished.
  • Allexistingwidth/continuity/machiningnotes reused; referenceprompts notfilled withprintedcompanionnumbers. Minorlength/membermarks open.
  • Known2infaces,1½depth,⅝groove and¼depth reused. Originalcaststeel/CI retained; redprofile revisions separate.
  • 4inmasonryembedment andpeenedbolts reused. Finemachining/memberlengths remainopen.
  • Printedbillblanknotzero; mildsteelsubstitution disapproval known. Rednotes notcompletelytranscribed orauthorized.
  • Preliminarydate/status retained separately fromlaterLidgerwood640; no revisionmergedaway.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

30 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img0992-grille-preliminaryverified · printed

status

Office copy—prelim.

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: Office copy—prelim.

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

ornament_status

Ornaments & rosettes to be detailed later

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: Ornaments & rosettes to be detailed later

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

horizontal_members_continuity

All horizontal bars to be continuous between the two outside vertical bars

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: All horizontal bars to be continuous between the two outside vertical bars

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

vertical_bar_end_machining

All vertical bars are to be machined on the ends so as to fit into the grooves of the horizontal bars

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: All vertical bars are to be machined on the ends so as to fit into the grooves of the horizontal bars

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

bar_end_machining

All bars to have ends machined

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: All bars to have ends machined

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

vertical_bar_welding

Vertical bars to be tack-welded to horizontal bars in grooves

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: Vertical bars to be tack-welded to horizontal bars in grooves

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

side_connection_welding

Horizontal bars to be electrically welded to side bars

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: Horizontal bars to be electrically welded to side bars

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

ornamental_plate_material

Solid C.I. ornamental plates

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: Solid C.I. ornamental plates

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

rosette_material_original

Cast steel rosettes

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: Cast steel rosettes

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

material_revision

Substitution of mild steel for cast iron disapproved

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: Substitution of mild steel for cast iron disapproved

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

anchor_embedment

Anchor bar to extend 4" into masonry

4 in

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: Anchor bar to extend 4" into masonry

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

anchor_attachment

Electric weld to grille

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: Electric weld to grille

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

bolt_end_requirement

End of bolt to be peened after installation

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: End of bolt to be peened after installation

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

sheet_date

3-24-32

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: 3-24-32

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

masonry_opening_width

7'-6" masonry opening

90 in

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: 7'-6" masonry opening

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryverified · printed

grille_width

7'-5¾" width of grille exact

89.75 in

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: 7'-5¾" width of grille exact

Selected visible printed or handwritten source evidence; partial review. Detail/type-level property only; do not infer an installed room geometry or count from photograph repetition.

parallel-img0992-grille-preliminaryillegible · observed

red_bill_annotation_partial_witness

[red annotation: Note ...; Shop drawings for ...; remaining handwriting unresolved]

Targeted native master bill crop confirms separate red handwriting over the original blank schedule. A few words can be recognized but sentences, drawing numbers and authority cannot be transcribed reliably. This supplements rather than closes the broad handwritten revision question.

IMG_0992 · S.D.3207 · Locate on drawing ↗

Drawing notation: [red annotation: Note ...; Shop drawings for ...; remaining handwriting unresolved]

Targeted native master bill crop confirms separate red handwriting over the original blank schedule. A few words can be recognized but sentences, drawing numbers and authority cannot be transcribed reliably. This supplements rather than closes the broad handwritten revision question.

Conflicting readings: fabrication1013j-img0992-044-handwritten_bill_revision_notes_unresolved

parallel-img0992-grille-preliminaryverified · printed

rosette-attachment

CAST STEEL ROSETTES TO BE TACK-WELDED TO HORIZONTAL BARS IN GROOVES

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: CAST STEEL ROSETTES TO BE TACK-WELDED TO HORIZONTAL BARS IN GROOVES

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.

parallel-img0992-grille-preliminaryverified · printed

ornamental-plate-groove-relationship

SOLID C.I. ORNAMENTAL PLATES TO BE FITTED IN GROOVES OF THE TWO VERTICAL SIDE MEMBERS

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: SOLID C.I. ORNAMENTAL PLATES TO BE FITTED IN GROOVES OF THE TWO VERTICAL SIDE MEMBERS

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.

parallel-img0992-grille-preliminaryverified · printed

manufacturer-preliminary-sheet

PACIFIC IRON & STEEL WORKS TACOMA WASH.

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: PACIFIC IRON & STEEL WORKS TACOMA WASH.

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.

parallel-img0992-grille-preliminaryverified · printed

preliminary-drawing-number

S.D. 3207

3207 drawing-number

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.

IMG_0992 · S.D. 3207 · Locate on drawing ↗

Drawing notation: S.D. 3207

Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.

parallel-img0992-grille-preliminaryverified · observed

bill_material_cells_status

BILL OF MATERIAL [no printed item rows entered]

Depicted type/component or shop-order row only; no installed quantity or accepted physical geometry. Observed blank printed bill cells under later handwritten notes; blank is not zero.

IMG_0992 · S.D.3207 · Locate on drawing ↗

Drawing notation: BILL OF MATERIAL [no printed item rows entered]

Depicted type/component or shop-order row only; no installed quantity or accepted physical geometry. Observed blank printed bill cells under later handwritten notes; blank is not zero.

parallel-img0992-grille-preliminaryverified · printed

ornament_companion_numbers_unentered

FOR DETAIL OF ORNAMENTS IN TOP PANEL SEE DWG. S.D. / FOR DETAIL OF ROSETTES SEE DWG. S.D. / FOR DETAIL OF ORNAMENTS IN SIDE PANELS SEE DWG. S.D.

Depicted type/component or shop-order row only; no installed quantity or accepted physical geometry. Reference prompts lack printed drawing numbers in this preliminary view; do not invent them.

IMG_0992 · S.D.3207 · Locate on drawing ↗

Drawing notation: FOR DETAIL OF ORNAMENTS IN TOP PANEL SEE DWG. S.D. / FOR DETAIL OF ROSETTES SEE DWG. S.D. / FOR DETAIL OF ORNAMENTS IN SIDE PANELS SEE DWG. S.D.

Depicted type/component or shop-order row only; no installed quantity or accepted physical geometry. Reference prompts lack printed drawing numbers in this preliminary view; do not invent them.

parallel-img0992-grille-preliminaryunreviewed · observed

handwritten_bill_revision_notes_unresolved

[red handwritten notes over bill and profile revisions; incomplete transcription]

Depicted type/component or shop-order row only; no installed quantity or accepted physical geometry. Handwritten revision layer kept separate from original blank schedule; authority and text await targeted master crops.

IMG_0992 · S.D.3207 · Locate on drawing ↗

Drawing notation: [red handwritten notes over bill and profile revisions; incomplete transcription]

Depicted type/component or shop-order row only; no installed quantity or accepted physical geometry. Handwritten revision layer kept separate from original blank schedule; authority and text await targeted master crops.
