Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review of public/archive/drawings/complete-upright/IMG_0988.webp. Access-image normalized coordinates are unrotated derivative coordinates; rotationDegrees records clockwise correction needed for readable text. No model geometry authorized by this evidence. Partial timed visual review: undefined Partial timed visual review: Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Partial timed visual review: Depicted type/component, shop order or source-local assembly only. Components and grille order quantities do not create installed fixtures or establish electrical outlet-to-type assignments.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.

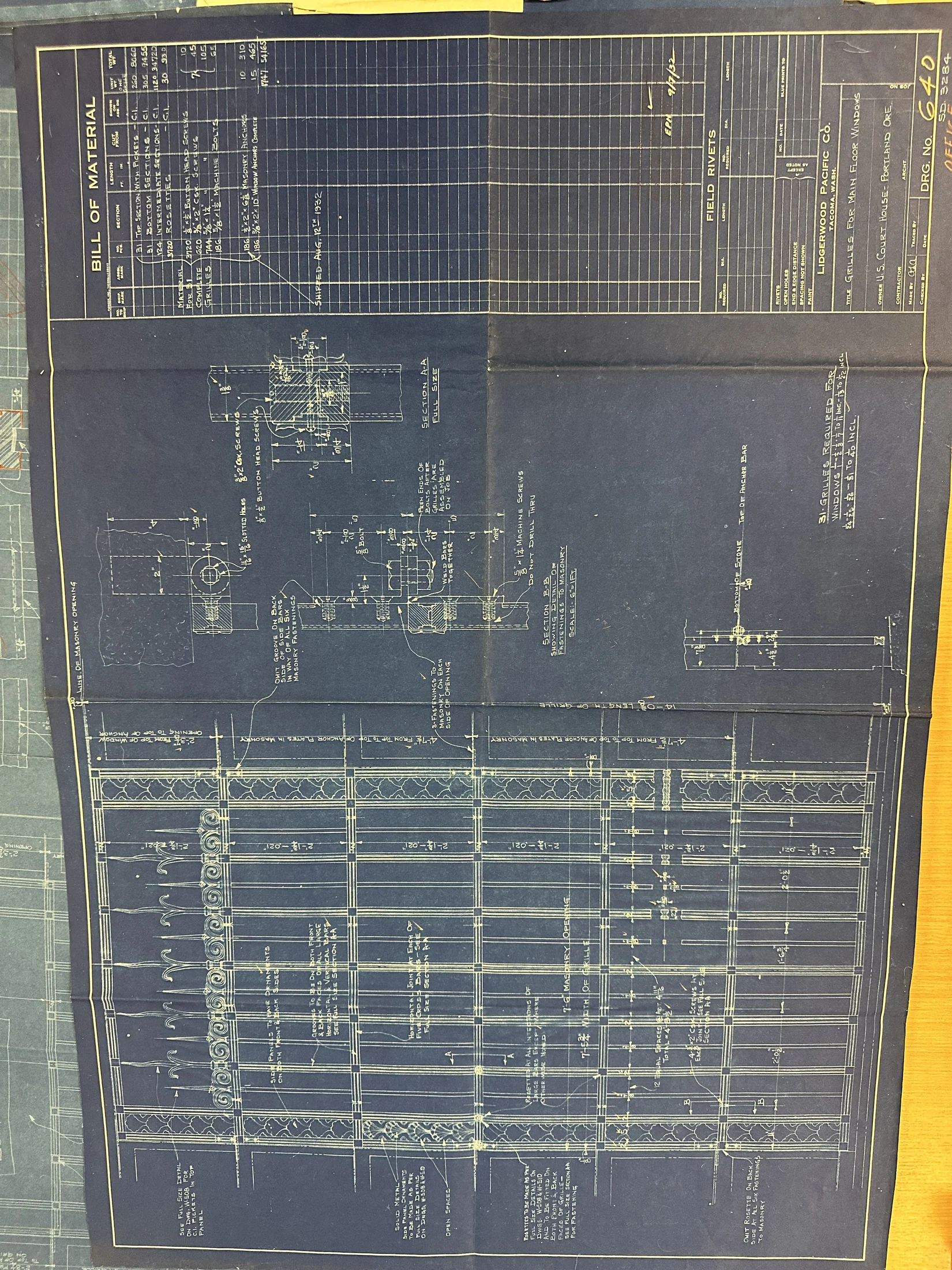

Drawing notation: GRILLES FOR MAIN FLOOR WINDOWS
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: LIDGERWOOD PACIFIC CO. TACOMA WASH.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
31 sections
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 31 TOP SECTION WITH PICKETS
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
31 sections
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 31 BOTTOM SECTIONS
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
124 sections
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 124 INTERMEDIATE SECTIONS
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
3720 rosettes
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 3720 ROSETTES
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
186 anchors
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 186 ... WINDOW ANCHORS COMPLETE
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
186 anchors
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 186 ... MASONRY ANCHORS
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
186 bolts
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 186 ... MACHINE BOLTS
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
3720 screws
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 3720 ... BUTTON HEAD SCREWS
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
620 screws
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 620 ... MACHINE SCREWS
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: SHIPPED AUG. 12TH 1932
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
168 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building. Review correction review-correction-20261013j-parallel-img0988-m013: The IMG_0988 length leader includes 3/8 following 14-0; the prior 168 in transcription omitted that fraction. The distinct IMG_0990 companion does not alone establish this correction.
Drawing notation: 14'-0 LENGTH OF GRILLE
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
3 per-side
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 3 FASTENINGS TO MASONRY ON EACH SIDE OF OPENING
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: SOLID METAL
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: ROSETTES ALL IN FRONT OF PICKETS
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: HORIZONTAL JOINT ... FULL SIZE SEE SECTION A-A
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: DO NOT DRILL THRU
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: STONE
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Multiple ranges and individual numbers; full roster not transcribed from sideways derivative.
Drawing notation: WINDOWS ... 13 TO 22 INCL ...31 TO40 INCL
Multiple ranges and individual numbers; full roster not transcribed from sideways derivative.
Numeric value unresolved
Retain uncertain fraction null rather than assuming nominal masonry/grille equality.
Drawing notation: 7'-6 [fraction unclear]
Retain uncertain fraction null rather than assuming nominal masonry/grille equality.
The note is the same window-assignment witness as prior m020. Slash transcription preserves vertically stacked numerator 1 and denominator window identifiers; these are literal marks, not lengths or mathematical fractions. First line begins 31 GRILLES REQUIRED FOR. No physical window objects or installed quantity accepted.
Drawing notation: WINDOWS 1/1 - 1/2 - 1/3 - 1/7 TO 1/11 INCL. - 1/13 TO 1/22 INCL. / 1/24 - 1/25 - 1/26 - 1/31 TO 1/40 INCL.
The note is the same window-assignment witness as prior m020. Slash transcription preserves vertically stacked numerator 1 and denominator window identifiers; these are literal marks, not lengths or mathematical fractions. First line begins 31 GRILLES REQUIRED FOR. No physical window objects or installed quantity accepted.
Conflicting readings: parallel-img0988-m020
0.5 unlabeled-number
First size glyph in masonry-anchor bill row. A quote is clear after 2; no independently certain quote for the first glyph is asserted. Source numeric glyph only; unit remains open.
Drawing notation: 186 ½ × 2" × 6⅛ MASONRY ANCHORS
First size glyph in masonry-anchor bill row. A quote is clear after 2; no independently certain quote for the first glyph is asserted. Source numeric glyph only; unit remains open.
Conflicting readings: detail-metal-20261011f-988-m18
6.125 unlabeled-number
Last size glyph is six and one eighth in the same bill row. Exact unit mark is not independently established; previous width reading and notation are retained. Does not close the prior composite inch-profile question.
Drawing notation: 186 ½ × 2" × 6⅛ MASONRY ANCHORS
Last size glyph is six and one eighth in the same bill row. Exact unit mark is not independently established; previous width reading and notation are retained. Does not close the prior composite inch-profile question.
Conflicting readings: detail-metal-20261011f-988-m18
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: C.I.
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: C.I.
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: C.I.
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: C.I.
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
260 null
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: 260
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
8060 null
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: 8060
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
305 null
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: 305
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
9455 null
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: 9455
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
1120 null
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: 1120
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
34720 null
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: 34720
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
30 null
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: 30
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
930 null
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: 930
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
54165 null
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
Drawing notation: 54165
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred. Bill column heading WT is visible; unit and weight basis are unresolved. Raw printed weight numerals are not converted or multiplied.
744 screws
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.
Drawing notation: 744 5/16 × 1¼
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.
0.125 in
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.
Drawing notation: 1/8 × 1/2 BUTTON HEAD SCREWS
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.
0.5 in
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.
Drawing notation: 1/8 × 1/2 BUTTON HEAD SCREWS
Source-local depicted assembly or specification only. No installed quantities, accepted floor geometry or model placement inferred.
