Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review of public/archive/drawings/complete-upright/IMG_0986.webp. Access-image normalized coordinates are unrotated derivative coordinates; rotationDegrees records clockwise correction needed for readable text. No model geometry authorized by this evidence. Partial timed visual review: Targeted lower-panel original and orange witness review; explicit rotation improves legibility but original circled fraction remains uncertain. Existing verified orange height and 7/9 glyph records are reused with separate original/revision layers. Partial timed visual review: Additive remaining-region review; source regions use original access derivative coordinates. Reuse prior verified evidence; preserve conflicts separately. No physical geometry inference. Partial timed visual review: Targeted master crop resolves revision mechanism; retains individual endpoint/old-fraction uncertainties. Orange dimensions apply to different elevation and plan chains. Partial timed visual review: undefined Partial timed visual review: undefined
Loading the selected drawing…

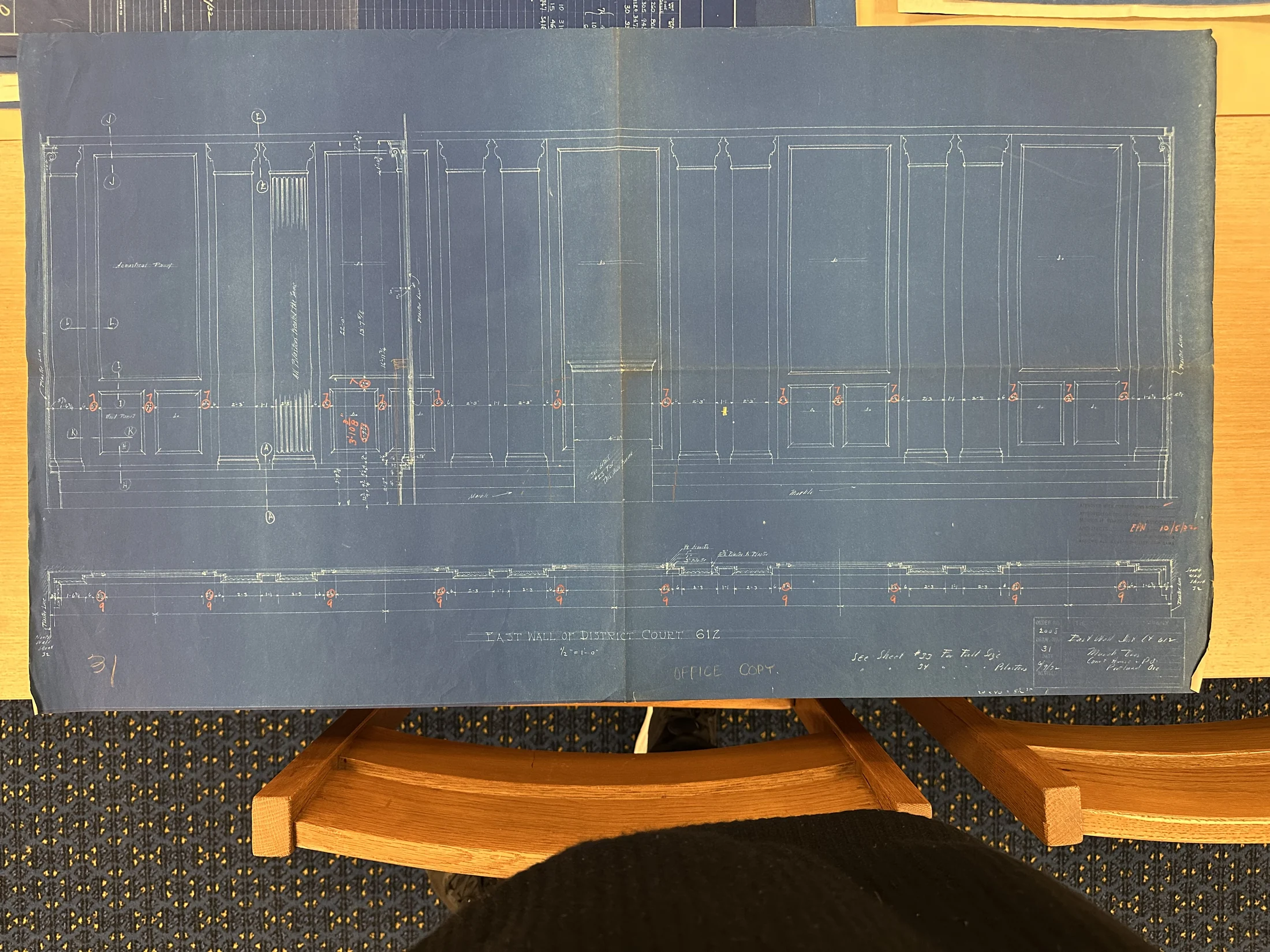

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
612 room-number
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: EAST WALL OF DISTRICT COURT 612
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
0.5 in/ft
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: ½"=1'-0"
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: See Sheet #33 For Full Size
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Sheet 24 appears to be companion plinth reference; intermediate ditto marks need verification.
Drawing notation: 24 ... Plinths
Sheet 24 appears to be companion plinth reference; intermediate ditto marks need verification.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: Marble
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Alternating tall framed panels and pilaster pairs with small lower panels, one fluted zone at left and central interrupted panel/pedestal form; no quantities inferred for installed room.
Alternating tall framed panels and pilaster pairs with small lower panels, one fluted zone at left and central interrupted panel/pedestal form; no quantities inferred for installed room.
Numeric value unresolved
Orange dimension revisions and marks must be read individually and reconciled with original dimension chain.
Orange dimension revisions and marks must be read individually and reconciled with original dimension chain.
Numeric value unresolved
After rotating the targeted crop clockwise90, original white 3-9 prefix can be separated from orange 3′-10⅜″. The original terminal fraction and marks remain ambiguous; no original height admitted or historical revision selected.
Drawing notation: 3-9[fraction unresolved; unit marks not established]
After rotating the targeted crop clockwise90, original white 3-9 prefix can be separated from orange 3′-10⅜″. The original terminal fraction and marks remain ambiguous; no original height admitted or historical revision selected.
Calculated from: roomshop1013m-img_0986-circled-original-height-null
Conflicting readings: roomshop1013m-img_0986-orange-height-resolution
Printed label applies to depicted large wall panel; material composition not specified.
Drawing notation: Acoustical Panel
Printed label applies to depicted large wall panel; material composition not specified.
24 sheet-number
Reference to sheet 24 for plinths; ditto repeats See Sheet from line above.
Drawing notation: 24 [ditto marks] Plinths
Reference to sheet 24 for plinths; ditto repeats See Sheet from line above.
Calculated from: parallel-img0986-m004
Central lower projecting framed element interrupts base line; function and dimensions unresolved.
Central lower projecting framed element interrupts base line; function and dimensions unresolved.
Numeric value unresolved
Revision numeral 7 appears repeatedly above circled original annotations; endpoints and units not sufficiently clear to normalize.
Drawing notation: 7 [orange revision marks]
Revision numeral 7 appears repeatedly above circled original annotations; endpoints and units not sufficiently clear to normalize.
Calculated from: parallel-img0986-m007
Numeric value unresolved
Plan revision numeral 9 retained separately from elevation numeral 7; no reconciliation or exact geometry asserted.
Drawing notation: 9 [orange revision marks]
Plan revision numeral 9 retained separately from elevation numeral 7; no reconciliation or exact geometry asserted.
Calculated from: parallel-img0986-m007
7 null
Repeated orange 7 values directly replace circled original short segments along elevation chain at lower panels. Numeral resolved; explicit unit, every endpoint and circled fractions not resolved. Do not normalize as inches or merge with plan 9.
Drawing notation: 7 [orange, above circled original values]
Repeated orange 7 values directly replace circled original short segments along elevation chain at lower panels. Numeral resolved; explicit unit, every endpoint and circled fractions not resolved. Do not normalize as inches or merge with plan 9.
Calculated from: parallel-img0986-m007, detail-0986q-orange_elevation_dimension_conflict
9 null
Repeated orange 9 values replace circled original short segments in separate plan chain. Numeral resolved; unit and per-instance endpoint allocation remain null. Difference from elevation 7 is not itself a conflict because chains depict different relationships.
Drawing notation: 9 [orange, below circled original values]
Repeated orange 9 values replace circled original short segments in separate plan chain. Numeral resolved; unit and per-instance endpoint allocation remain null. Difference from elevation 7 is not itself a conflict because chains depict different relationships.
Calculated from: parallel-img0986-m007, detail-0986q-orange_plan_dimension_conflict
Numeric value unresolved
Circled original short fractions and orange vertical alteration left of central projecting panel remain ambiguous at reviewed crop resolution. Further narrow native-resolution crops required; not declared irrecoverable from collection.
Circled original short fractions and orange vertical alteration left of central projecting panel remain ambiguous at reviewed crop resolution. Further narrow native-resolution crops required; not declared irrecoverable from collection.
Calculated from: parallel-img0986-m007
Numeric value unresolved
Crop locates orange vertical revision at lower panel immediately right of fluted field. Fraction and overwritten original remain uncertain; retain separate from repeated orange 7 elevation and 9 plan numerals. No approved revision geometry.
Drawing notation: 3′-10 [fraction]
Crop locates orange vertical revision at lower panel immediately right of fluted field. Fraction and overwritten original remain uncertain; retain separate from repeated orange 7 elevation and 9 plan numerals. No approved revision geometry.
Calculated from: detail-0986t-revision_old_values_gap
Numeric value unresolved
Circled white original beside orange revised height immediately right of fluted field remains unreadable; no historical revision selected.
Drawing notation: [circled white original: unreadable]
Circled white original beside orange revised height immediately right of fluted field remains unreadable; no historical revision selected.
Calculated from: detail-0986t-revision_old_values_gap
Conflicting readings: roomshop1013m-img_0986-orange-height-resolution
46.375 in
Master crop resolves 3/8 fraction in orange vertical note on lower panel immediately right of fluted field. Source revision reading only; circled original retained null and revision authority/physical endpoints remain open.
Drawing notation: 3′-10⅜″
Master crop resolves 3/8 fraction in orange vertical note on lower panel immediately right of fluted field. Source revision reading only; circled original retained null and revision authority/physical endpoints remain open.
Calculated from: detail-20261012g-986-001
Conflicting readings: roomshop1013m-img_0986-circled-original-height-null
27 in
White local span above fluted field area to left of reviewed lower panel; applies only to the two drawn witnesses at this station. Orange circled end offsets are separate revisions.
Drawing notation: 2′-3″
White local span above fluted field area to left of reviewed lower panel; applies only to the two drawn witnesses at this station. Orange circled end offsets are separate revisions.
13 in
White pilaster interval between adjacent witnesses at left side of fluted field. Not a room bay or repeated installed quantity.
Drawing notation: 1′-1″
White pilaster interval between adjacent witnesses at left side of fluted field. Not a room bay or repeated installed quantity.
