Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review of public/archive/drawings/complete-upright/IMG_0985.webp. Access-image normalized coordinates are unrotated derivative coordinates; rotationDegrees records clockwise correction needed for readable text. No model geometry authorized by this evidence. Partial timed visual review: Text-only reuse; same-sash relationship is not independent dimensional authority, and no new image inspection was needed. Partial timed visual review: Additive remaining-region review; source regions use original access derivative coordinates. Reuse prior verified evidence; preserve conflicts separately. No physical geometry inference. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
110.25 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 9'-2¼ Jamb Opng
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
81.5 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 6'-9½ Jamb Opng
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
24 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 2'-0"
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
24 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 2'-0"
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
4.75 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: 4¾
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
24.75 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: All Sash 2'-0¾ x 2'-0¾
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
24.75 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: All Sash 2'-0¾ x 2'-0¾
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: V.G. FIR
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.
Drawing notation: PAINTED TO MATCH CEILING SEE W.243
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole building.

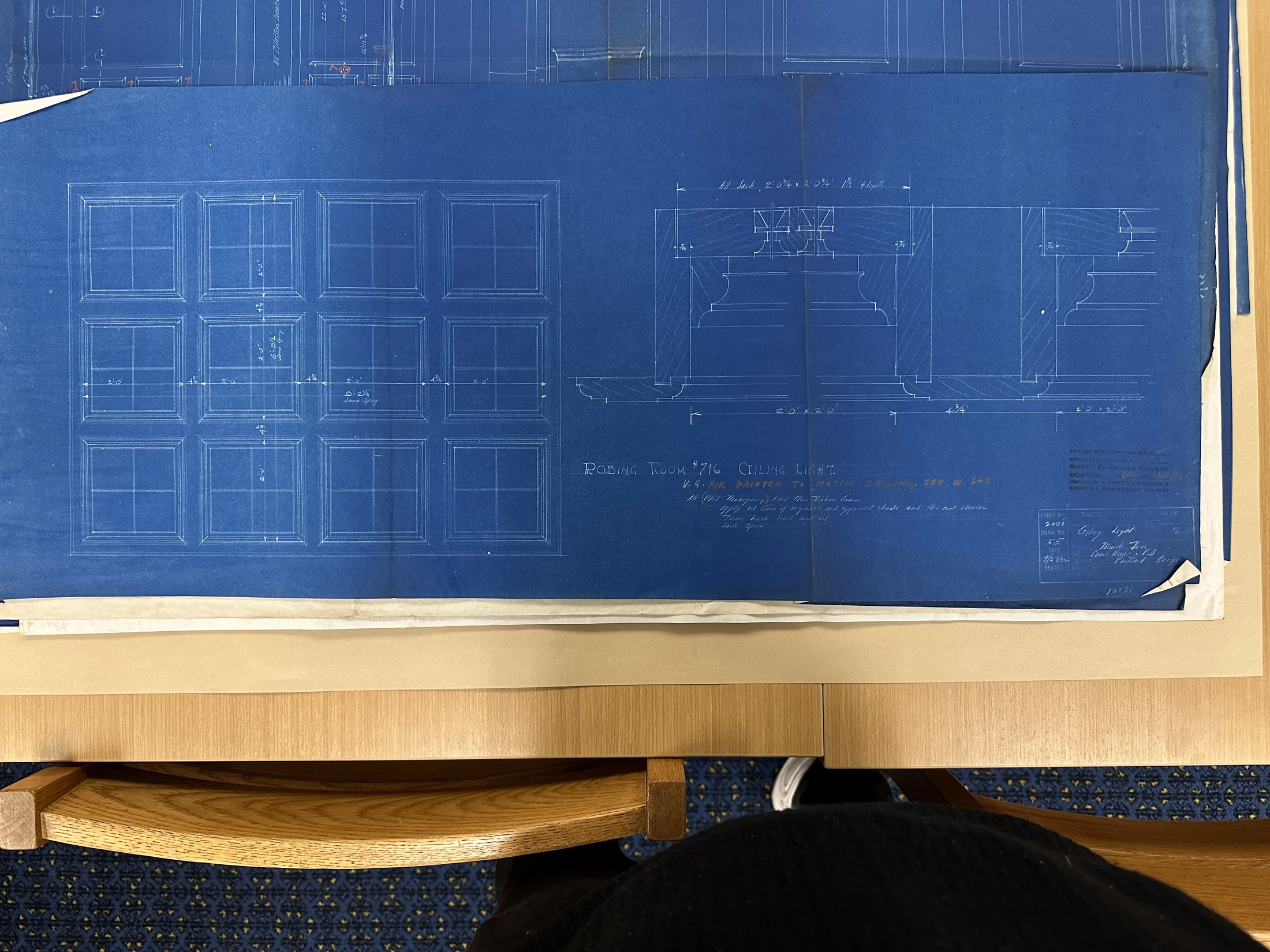

Full sheet combines plan close-up IMG_0984 and section close-up IMG_0983; catalogue lighting category does not establish bronze or electric fixture material.
Full sheet combines plan close-up IMG_0984 and section close-up IMG_0983; catalogue lighting category does not establish bronze or electric fixture material.
Overlapping background east-wall sheet is not part of ceiling-light drawing; excluded from extraction.
Overlapping background east-wall sheet is not part of ceiling-light drawing; excluded from extraction.
Same sash-size notation as IMG_0983; reuse closer view's thickness reading, not an independent precise verification.
Same sash-size notation as IMG_0983; reuse closer view's thickness reading, not an independent precise verification.
Calculated from: detail-0983q-sash_thickness_followup
0.4375 in
Printed horizontal control at left edge of adjacent opening in full sheet section, beyond the two edge controls separately extracted from IMG0983. Source-local profile only.
Drawing notation: 7/16
Printed horizontal control at left edge of adjacent opening in full sheet section, beyond the two edge controls separately extracted from IMG0983. Source-local profile only.
