Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review of public/archive/drawings/complete-upright/IMG_0973.webp. Actual orientation recorded; source regions refer to displayed access-image coordinates. No modeling or exact room geometry inference. Partial timed visual review: Additive selected remaining-region review; prior queue, OCR and packages consulted. Prior verified readings reused without duplication. Partial extraction only; no modeling. Partial timed visual review: Bounded additive remaining-region review; prior queue, OCR and reports consulted. No full coverage or modeling. Partial timed visual review: Bounded additive regional inventory; historical room/type marks remain separate from stable dataset object IDs. Partial timed visual review: Text-only crosswalk to registered earlier verified source readings; no new source-image inspection or raw-frame transform asserted.
Loading the selected drawing…

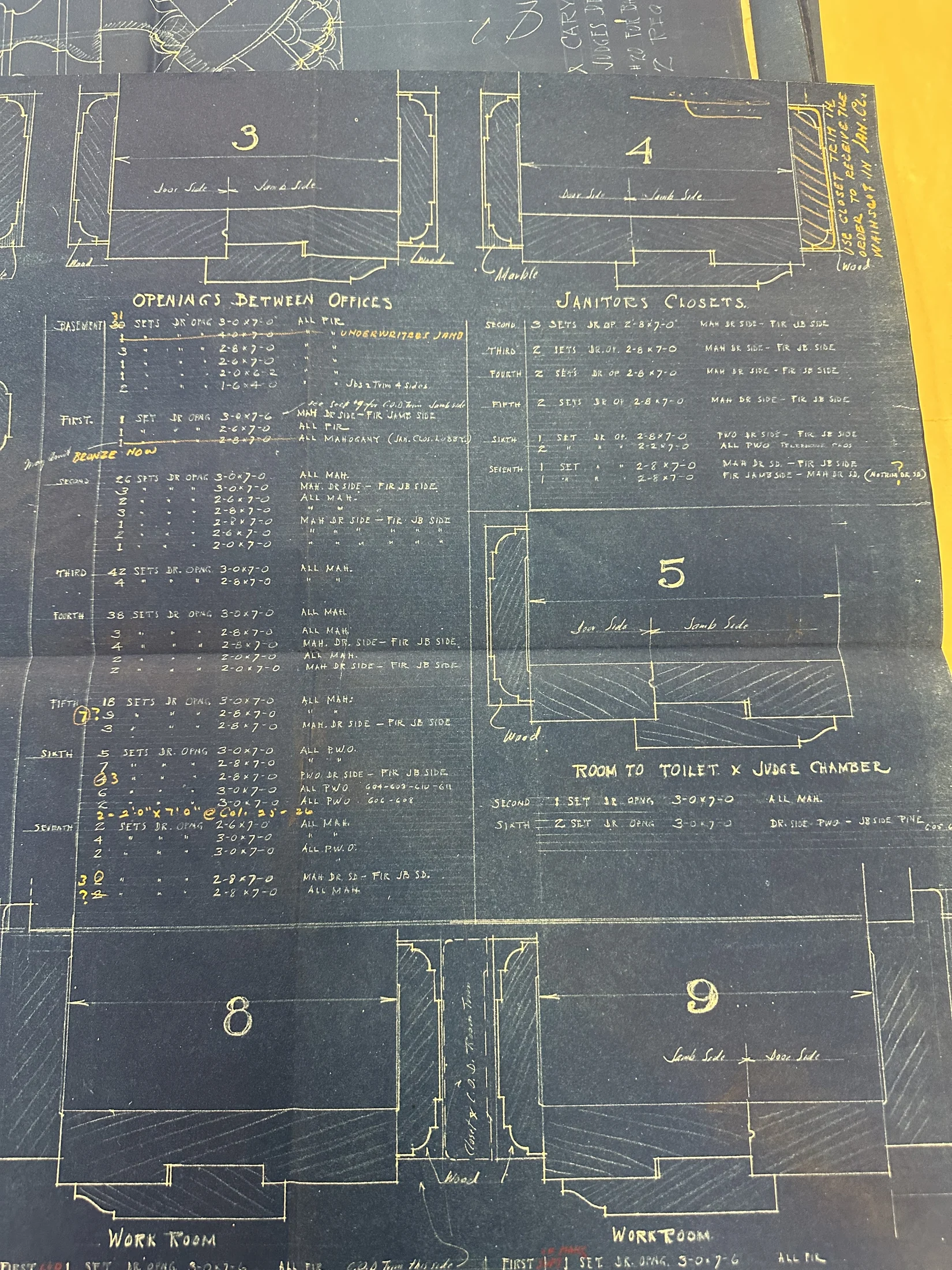

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected printed source evidence; partial review.
Drawing notation: OPENINGS BETWEEN OFFICES
Selected printed source evidence; partial review.
42 sets
Selected printed source evidence; partial review.
Drawing notation: THIRD 42 SETS
Selected printed source evidence; partial review.
38 sets
Selected printed source evidence; partial review.
Drawing notation: FOURTH 38 SETS
Selected printed source evidence; partial review.
18 sets
Selected printed source evidence; partial review.
Drawing notation: FIFTH 18 SETS
Selected printed source evidence; partial review.
36 in
Selected printed source evidence; partial review.
Drawing notation: DR OPNG 3'-0"
Selected printed source evidence; partial review.
84 in
Selected printed source evidence; partial review.
Drawing notation: 7'-0"
Selected printed source evidence; partial review.
Selected printed source evidence; partial review.
Drawing notation: ALL MAH.
Selected printed source evidence; partial review.
Selected printed source evidence; partial review.
Drawing notation: JANITORS CLOSETS
Selected printed source evidence; partial review.
3 sets
Selected printed source evidence; partial review.
Drawing notation: SECOND 3 SETS
Selected printed source evidence; partial review.
2 sets
Selected printed source evidence; partial review.
Drawing notation: THIRD 2 SETS
Selected printed source evidence; partial review.
2 sets
Selected printed source evidence; partial review.
Drawing notation: FOURTH 2 SETS
Selected printed source evidence; partial review.
2 sets
Selected printed source evidence; partial review.
Drawing notation: FIFTH 2 SETS
Selected printed source evidence; partial review.
32 in
Selected printed source evidence; partial review.
Drawing notation: 2'-8"
Selected printed source evidence; partial review.
84 in
Selected printed source evidence; partial review.
Drawing notation: 7'-0"
Selected printed source evidence; partial review.
Selected printed source evidence; partial review.
Drawing notation: MAH DR SIDE - FIR JB SIDE
Selected printed source evidence; partial review.
Selected printed source evidence; partial review.
Drawing notation: ROOM TO TOILET x JUDGE CHAMBER
Selected printed source evidence; partial review.
1 sets
Selected printed source evidence; partial review.
Drawing notation: SECOND 1 SET
Selected printed source evidence; partial review.
36 in
Selected printed source evidence; partial review.
Drawing notation: 3'-0"
Selected printed source evidence; partial review.
84 in
Selected printed source evidence; partial review.
Drawing notation: 7'-0"
Selected printed source evidence; partial review.
Selected printed source evidence; partial review.
Drawing notation: ALL MAH.
Selected printed source evidence; partial review.
2 sets
Selected printed source evidence; partial review.
Drawing notation: SIXTH 2 SETS
Selected printed source evidence; partial review.
Selected printed source evidence; partial review.
Drawing notation: DR SIDE PWO - JB SIDE PINE
Selected printed source evidence; partial review.
Retain separate revisions; base/revised quantities require closer reconciliation.
Drawing notation: Yellow handwritten changes to counts and opening sizes
Retain separate revisions; base/revised quantities require closer reconciliation.
4 count
White third-floor secondary row, not primary42-set row.
Drawing notation: 4
White third-floor secondary row, not primary42-set row.
32 in
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: 2′-8″
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
84 in
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: 7′-0″
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Ditto marks carry mahogany from preceding primary row.
Drawing notation: ALL MAH.
Ditto marks carry mahogany from preceding primary row.
1 count
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: 1 SET
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
32 in
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: 2′-8″
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
84 in
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: 7′-0″
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Printed abbreviations preserved; PWO expansion not independently established here.
Drawing notation: PWO DR SIDE - FIR JB SIDE
Printed abbreviations preserved; PWO expansion not independently established here.
2 count
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: 2
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
26 in
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: 2′-2″
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
84 in
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: 7′-0″
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: ALL PWO (TELEPHONE CLOS.)
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Vertical handwritten note adjacent to type4 section; field instance unregistered.
Drawing notation: USE CLOSET TRIM IN ORDER TO RECEIVE THE WAINSCOT IN JAN. CL.
Vertical handwritten note adjacent to type4 section; field instance unregistered.
Numeric value unresolved
White20 struck/corrected by yellow31-looking numeral; counts preserved separately from any assumed final schedule.
Drawing notation: 20 / 31
White20 struck/corrected by yellow31-looking numeral; counts preserved separately from any assumed final schedule.
Yellow leader attaches to struck first-floor row; original all-mahogany remains separate.
Drawing notation: BRONZE NOW
Yellow leader attaches to struck first-floor row; original all-mahogany remains separate.
1 sets
Seventh-floor janitors-closets schedule row; side-specific materials preserved, individual opening identity unresolved.
Drawing notation: 1
Seventh-floor janitors-closets schedule row; side-specific materials preserved, individual opening identity unresolved.
32 in
Seventh-floor janitors-closets schedule row; side-specific materials preserved, individual opening identity unresolved.
Drawing notation: 2′-8″
Seventh-floor janitors-closets schedule row; side-specific materials preserved, individual opening identity unresolved.
