Both sides of profile10 labelled marble; no stone thickness inferred.
Drawing notation: Marble
Both sides of profile10 labelled marble; no stone thickness inferred.
Wood label beside profile11; species unresolved.
Drawing notation: Wood
Wood label beside profile11; species unresolved.
Yellow tick is aligned with corrections-noted line.
Drawing notation: APPROVED WITH CORRECTIONS NOTED
Yellow tick is aligned with corrections-noted line.
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: 5-13-32
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
1 count
Typical group quantity only; no installed door identity.
Drawing notation: BASEMENT 1 SET
Typical group quantity only; no installed door identity.
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: ALL FIR
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
2 count
Schedule group only.
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: ALL P.W.O.
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
1 sets
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: 1 [ditto from1 SET]
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
36 in
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: 3′-0″
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
84 in
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: 7′-0″
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: ALL MAH.
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
1 sets
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: 1 [ditto from1 SET]
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
36 in
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: 3′-0″
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
84 in
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: 7′-0″
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: ALL MAH.
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
1 sets
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: 1 [ditto from1 SET]
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
36 in
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: 3′-0″
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
84 in
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: 7′-0″
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Drawing notation: ALL MAH.
Corridor-to-toilet printed schedule group; floor association only, installed opening identity unresolved.
Numeric value unresolved
Fraction and endpoints require crop; type 11 is not installed opening ID.
Fraction and endpoints require crop; type 11 is not installed opening ID.
Numeric value unresolved
Two-axis size fractions unresolved.
Two-axis size fractions unresolved.
Numeric value unresolved
Two-axis fractions unresolved; set count/material already closed.
Two-axis fractions unresolved; set count/material already closed.
First-pass property only; remaining detail and endpoint/component associations require review.

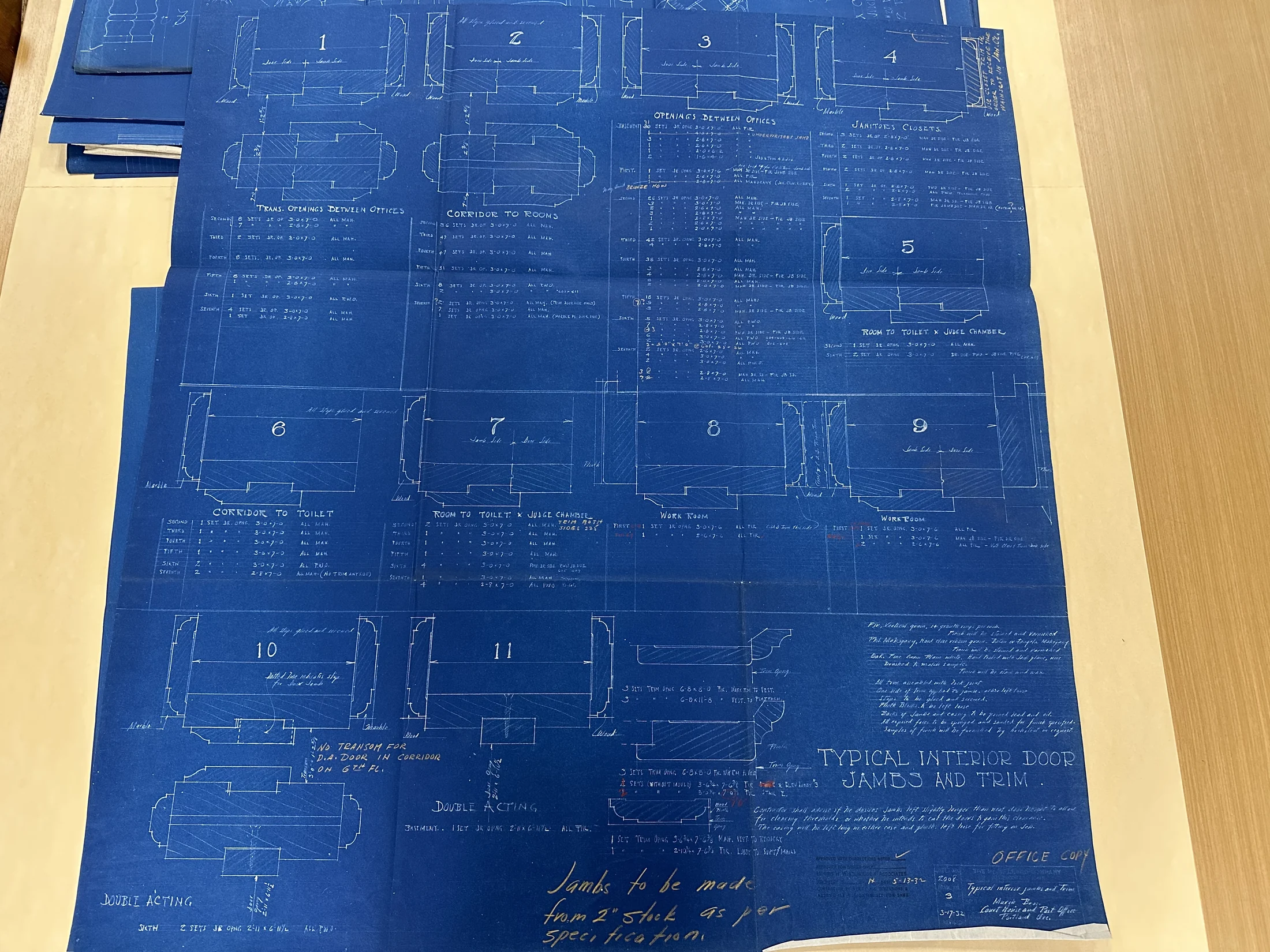

Drawing notation: TYPICAL INTERIOR DOOR JAMBS AND TRIM
First-pass property only; remaining detail and endpoint/component associations require review.
2 in
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: Jambs to be made from 2″ stock as per specification
First-pass property only; remaining detail and endpoint/component associations require review.
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: CORRIDOR TO TOILET
First-pass property only; remaining detail and endpoint/component associations require review.
1 sets
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: SECOND 1 SET DR. OPNG 3′-0″ × 7′-0″ ALL MAH
First-pass property only; remaining detail and endpoint/component associations require review.
36 in
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: 3′-0″
First-pass property only; remaining detail and endpoint/component associations require review.
84 in
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: 7′-0″
First-pass property only; remaining detail and endpoint/component associations require review.
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: ALL MAH
First-pass property only; remaining detail and endpoint/component associations require review.
1 sets
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: FIRST 1 SET DR. OPNG 3′-0″ × 7′-6″ ALL FIR
First-pass property only; remaining detail and endpoint/component associations require review.
36 in
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: 3′-0″
First-pass property only; remaining detail and endpoint/component associations require review.
90 in
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: 7′-6″
First-pass property only; remaining detail and endpoint/component associations require review.
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: ALL FIR
First-pass property only; remaining detail and endpoint/component associations require review.
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: NO TRANSOM FOR D.A. DOOR IN CORRIDOR ON 6TH FL.
First-pass property only; remaining detail and endpoint/component associations require review.
White basement double acting row; records literal width/height code only. Count and ALL FIR are reused from older verified properties. No inch marks visible on size code; plausible door sizes do not supply units.
Drawing notation: BASEMENT. 1 SET DR OPNG 2-11 x 6-11½ ALL FIR.
White basement double acting row; records literal width/height code only. Count and ALL FIR are reused from older verified properties. No inch marks visible on size code; plausible door sizes do not supply units.
Separate white sixth-floor double acting row; preserves literal two-axis code. Existing count and material remain separate, no unit inference or physical opening geometry.
Drawing notation: SIXTH 2 SETS DR OPNG 2-11 x 6-11½ ALL P.W.O.
Separate white sixth-floor double acting row; preserves literal two-axis code. Existing count and material remain separate, no unit inference or physical opening geometry.
