50 drawing-number
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: 50
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.
Drawing notation: M.E.C. 10/5/32
Selected printed property of depicted assembly or schedule group; no physical room geometry or installed instance assignment.

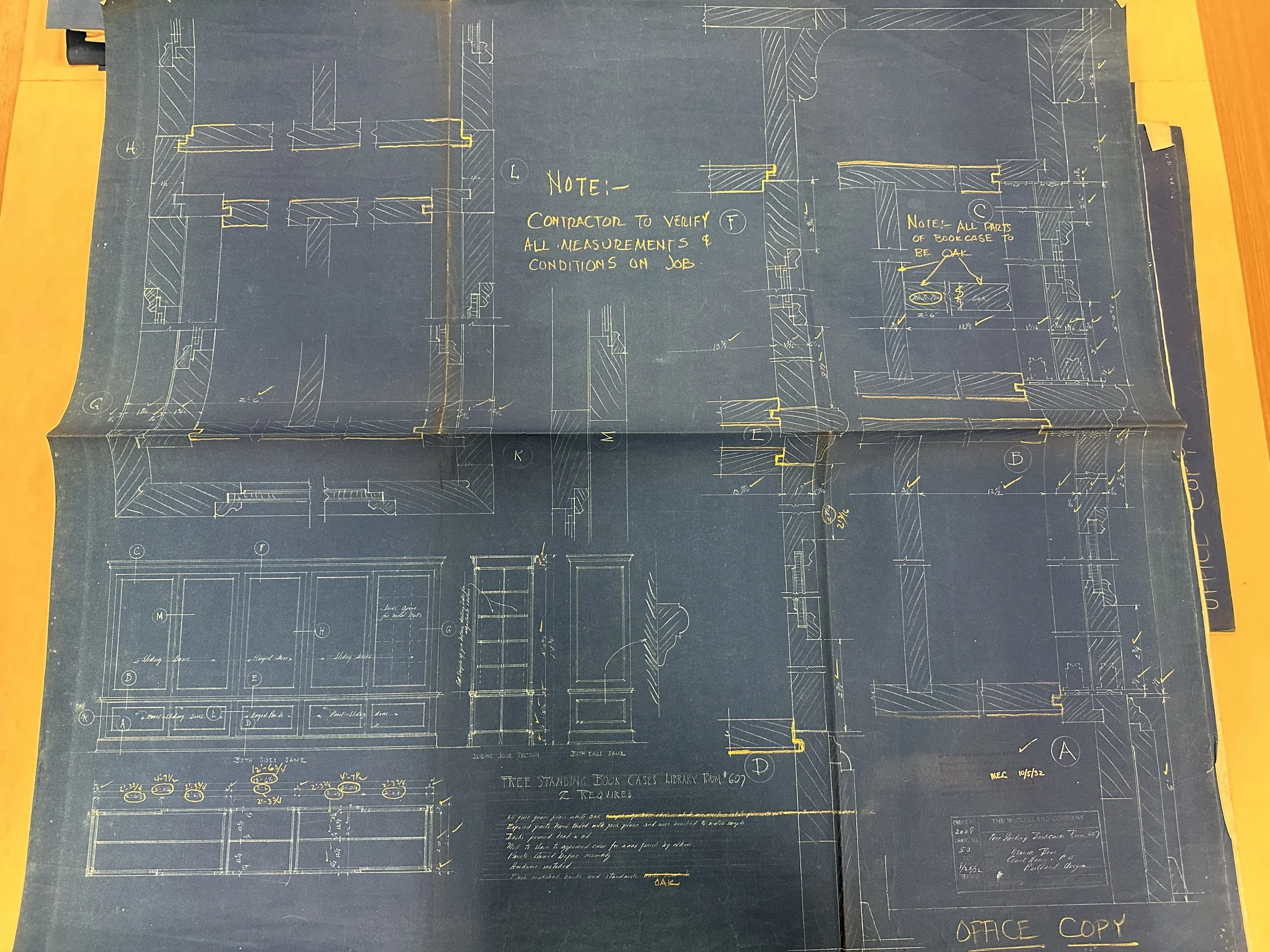

Four sliding-door leaves are depicted over the lower panelled base; depiction only, not installed count.
Four sliding-door leaves are depicted over the lower panelled base; depiction only, not installed count.
150.75 in
Yellow plan total; additive revision to prior unresolved 12′-6¾ reading. Separate white chain values retained; not room width.
Drawing notation: 12′-6¾″
Yellow plan total; additive revision to prior unresolved 12′-6¾ reading. Separate white chain values retained; not room width.
Oak instruction arrows identify section stock and override circled white species labels locally; previous printed species text remains unresolved.
Oak instruction arrows identify section stock and override circled white species labels locally; previous printed species text remains unresolved.
Lettered elevation/plan references correspond to enlarged member profiles; geometric registration not yet calibrated.
Drawing notation: A B C D E F G H K L M
Lettered elevation/plan references correspond to enlarged member profiles; geometric registration not yet calibrated.
30 in
White local G section dimension; endpoints belong to bookcase, not room.
Drawing notation: 2′-6″
White local G section dimension; endpoints belong to bookcase, not room.
Enlarged H/L profiles show rebated opposed meeting edges and yellow corrections; groove depths unresolved.
Enlarged H/L profiles show rebated opposed meeting edges and yellow corrections; groove depths unresolved.
607 identifier
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: LIBRARY ROOM 607
First-pass property only; remaining detail and endpoint/component associations require review.
2 count
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: 2 REQUIRED
First-pass property only; remaining detail and endpoint/component associations require review.
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: NOTE: ALL PARTS OF BOOKCASE TO BE OAK
First-pass property only; remaining detail and endpoint/component associations require review.
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: CONTRACTOR TO VERIFY ALL MEASUREMENTS & CONDITIONS ON JOB
First-pass property only; remaining detail and endpoint/component associations require review.
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: SLIDING DOOR SECTION
First-pass property only; remaining detail and endpoint/component associations require review.
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: BOTH SIDES SAME
First-pass property only; remaining detail and endpoint/component associations require review.
Numeric value unresolved
First-pass property only; remaining detail and endpoint/component associations require review.
Drawing notation: 12′-6¾ [uncertain]
First-pass property only; remaining detail and endpoint/component associations require review.
Original white lettering within left portion of C lower horizontal-member detail. Yellow oval/arrows and all-parts-oak note alter species requirement; preserve original and annotation separately, with revision authority unresolved.
Drawing notation: White Pine
Original white lettering within left portion of C lower horizontal-member detail. Yellow oval/arrows and all-parts-oak note alter species requirement; preserve original and annotation separately, with revision authority unresolved.
Calculated from: parallel03-img_0968-casework-property-03
13.375 in
White F-section horizontal witness between local extension lines. Source-local sectional member depth/control; precise finish-face/member ownership and yellow checkmark authority unresolved.
Drawing notation: 13⅜"
White F-section horizontal witness between local extension lines. Source-local sectional member depth/control; precise finish-face/member ownership and yellow checkmark authority unresolved.
Numeric value unresolved
C lower-section internal horizontal witness; numerator/denominator not asserted from this crop. Pending targeted native pixel glyph and endpoint inspection.
Drawing notation: 12 [fraction unresolved]
C lower-section internal horizontal witness; numerator/denominator not asserted from this crop. Pending targeted native pixel glyph and endpoint inspection.
12.125 unlabeled-number
White C local horizontal witness reads12⅛. No readable final inch mark or independently verified general convention is supplied, so12.125 is an unlabeled source number, not an inch dimension; prior in null stays open.
Drawing notation: 12⅛
White C local horizontal witness reads12⅛. No readable final inch mark or independently verified general convention is supplied, so12.125 is an unlabeled source number, not an inch dimension; prior in null stays open.
