Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Additive remaining-region review 2026-10-11; prior packages, queue and OCR read before sequential derivative inspection. Regions in native derivative coordinates. Ten inspections including one notes crop across this batch. Partial extraction only; no model changes. Partial timed visual review: Source-local printed construction property; no room geometry, installed quantity or accepted model inference. Partial timed visual review: Bounded follow-up on selected source witnesses only. Partial timed visual review: Partial first-pass review; catalogue, OCR and existing research search preceded sequential visual inspection. Access derivative visibly upside down; native coordinates retained. Title/quantity and companion-reference text only. No modeling; all images remain incomplete.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Source-local component property; no whole-room geometry inference.
Drawing notation: Exposed Parts Mahogany
Source-local component property; no whole-room geometry inference.
Finish sequence in notes crop; exact small qualifiers remain unreadable.
Drawing notation: one coat oil stain / one coat shellac / one coat varnish
Finish sequence in notes crop; exact small qualifiers remain unreadable.
Partly legible note; preserve ambiguity.
Drawing notation: ALL EXPOSED SURFACES SPONGED AND SANDED TO RECEIVE [final?] COAT
Partly legible note; preserve ambiguity.
Observed profile only; no traced lengths.
Drawing notation: F: decorative moulded member with central rectangular field
Observed profile only; no traced lengths.
180 deg
Earlier doors-03 package reports rotation 0 despite upside-down description; separate corrected source orientation.
Drawing notation: Derivative requires 180° clockwise rotation for upright reading
Earlier doors-03 package reports rotation 0 despite upside-down description; separate corrected source orientation.
0.6875 in
Source-local printed construction property; no room geometry, installed quantity or accepted model inference.
Drawing notation: 11/16
Source-local printed construction property; no room geometry, installed quantity or accepted model inference.
0.6875 in
Source-local printed construction property; no room geometry, installed quantity or accepted model inference.
Drawing notation: 11/16
Source-local printed construction property; no room geometry, installed quantity or accepted model inference.
0.6875 in
Source-local printed construction property; no room geometry, installed quantity or accepted model inference.
Drawing notation: 11/16
Source-local printed construction property; no room geometry, installed quantity or accepted model inference.
0.6875 in
Source-local printed construction property; no room geometry, installed quantity or accepted model inference.
Drawing notation: 11/16
Source-local printed construction property; no room geometry, installed quantity or accepted model inference.
Same three-line original low-partition finish sequence. Prior one-coat varnish candidate is retained historically; visible last line says TWO COATS VARNISH. Coatings are distinct properties below; no application responsibility inferred.
Drawing notation: Work will be finished ONE COAT OIL STAIN / ONE COAT SHELLAC / TWO COATS VARNISH
Same three-line original low-partition finish sequence. Prior one-coat varnish candidate is retained historically; visible last line says TWO COATS VARNISH. Coatings are distinct properties below; no application responsibility inferred.
1 coats
Count printed in its own coating line; room-specific physical applicability and finish authority unestablished.
Drawing notation: ONE COAT OIL STAIN
Count printed in its own coating line; room-specific physical applicability and finish authority unestablished.
Calculated from: directorywitness1014h-img_0960-finish-sequence
1 coats
Count printed in its own coating line; room-specific physical applicability and finish authority unestablished.
Drawing notation: ONE COAT SHELLAC
Count printed in its own coating line; room-specific physical applicability and finish authority unestablished.
Calculated from: directorywitness1014h-img_0960-finish-sequence
2 coats
Count printed in its own coating line; room-specific physical applicability and finish authority unestablished.
Drawing notation: TWO COATS VARNISH
Count printed in its own coating line; room-specific physical applicability and finish authority unestablished.
Calculated from: directorywitness1014h-img_0960-finish-sequence
Final coat qualifier and application responsibility cannot be securely established at this native crop resolution. Exact prior final-finish question remains open.
Drawing notation: WORK TO RECEIVE A [PRIMING?] COAT / ALL EXPOSED SURFACES SPONGED AND SANDED TO RECEIVE [PRIMING?] COAT
Final coat qualifier and application responsibility cannot be securely established at this native crop resolution. Exact prior final-finish question remains open.
Selected visible note only; does not establish complete assembly geometry.

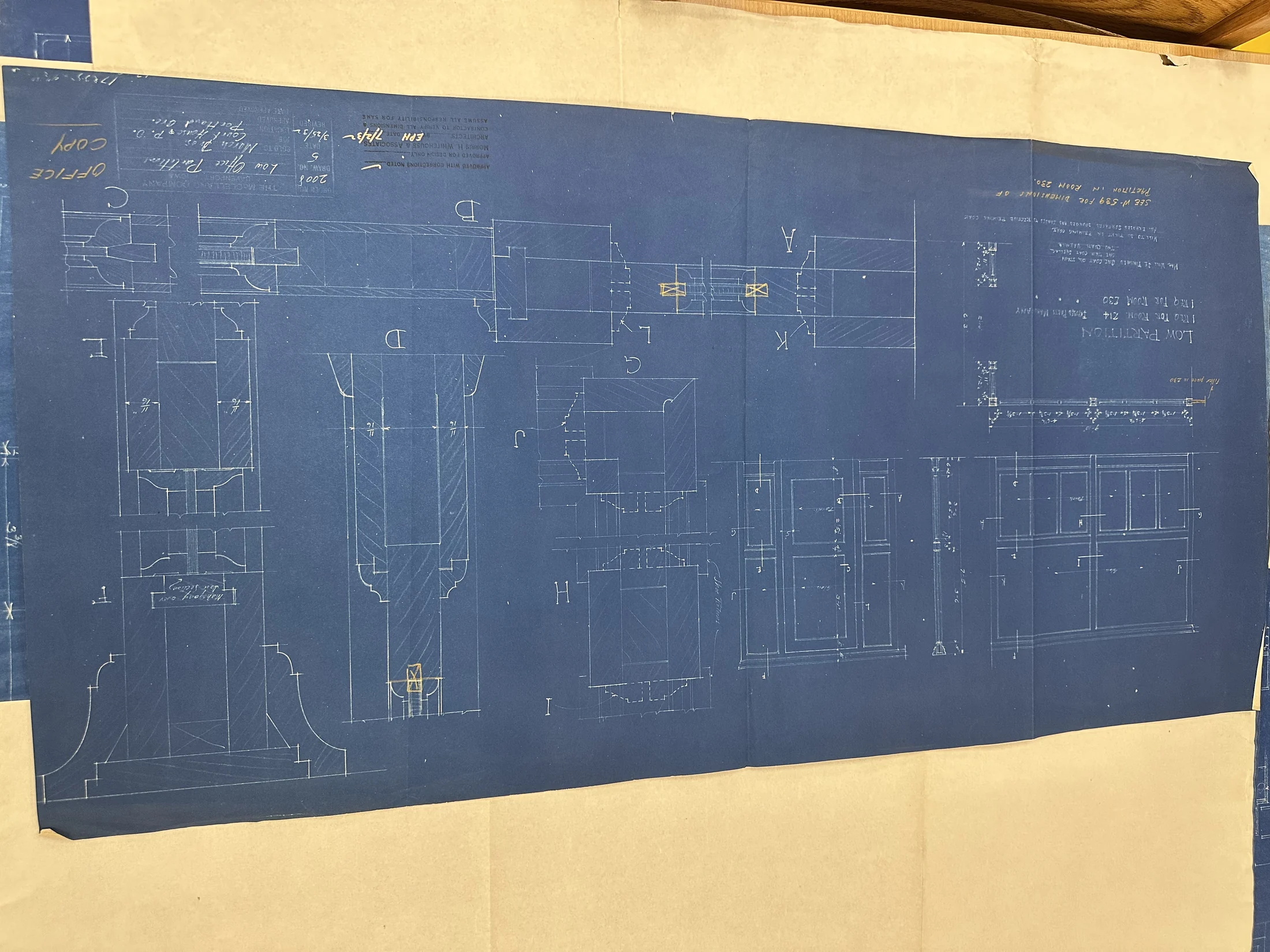

Drawing notation: LOW PARTITION
Selected visible note only; does not establish complete assembly geometry.
1 count
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: 1 REQ FOR ROOM 214
Selected visible note only; does not establish complete assembly geometry.
1 count
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: 1 REQ FOR ROOM 230
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: SEE W-539 FOR DIMENSIONS OF PARTITION IN ROOM 230
Selected visible note only; does not establish complete assembly geometry.
