Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Queue, OCR and prior doors-03/counter-03 packages searched before ten sequential single-image inspections. Additive selected remaining-region review of complete-upright derivative. Existing verified evidence reused, not duplicated. No modeling or full coverage claim. Prior level-7 floor assignment not independently established by title. Partial timed visual review: Selected left removable-panel vertical chain and title-block drawing number only. Prior horizontal spans/materials/coatings and competing heights reused without duplication. Partial timed visual review: Reuse canonical text/properties only; no new visual coverage claimed. Partial timed visual review: Bounded additive regional inventory; historical room/type marks remain separate from stable dataset object IDs. Partial timed visual review: Partial first-pass review; catalogue, OCR and existing research search preceded sequential visual inspection. Access derivative upright; quantity/material/finish note and two legible spans reviewed. Title block shows drawing number 43; sheet identity is not globally resolved. No modeling; all images remain incomplete.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
146.625 in
Circled white prior notation; preserved alongside prior package red 12′-3″ (147 in) revision. Not final height.
Drawing notation: 12′-2⅝″
Circled white prior notation; preserved alongside prior package red 12′-3″ (147 in) revision. Not final height.
25.25 in
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 2′-1¼″
Selected source span or note only; not room geometry or full assembly dimensions.
25.25 in
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 2′-1¼″
Selected source span or note only; not room geometry or full assembly dimensions.
1.625 in
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 1⅝″
Selected source span or note only; not room geometry or full assembly dimensions.
1.625 in
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 1⅝″
Selected source span or note only; not room geometry or full assembly dimensions.
5 in
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 5″
Selected source span or note only; not room geometry or full assembly dimensions.
6 in
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 6″
Selected source span or note only; not room geometry or full assembly dimensions.
6 in
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 6″
Selected source span or note only; not room geometry or full assembly dimensions.
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 7/12/32
Selected source span or note only; not room geometry or full assembly dimensions.
Colored check aligned to design-only line; contractor dimension verification still required.
Drawing notation: APPROVED FOR DESIGN ONLY
Colored check aligned to design-only line; contractor dimension verification still required.
4 in
Short vertical segment at top of targeted chain, above 3 inch segment; no height total calculated.
Drawing notation: 4″
Short vertical segment at top of targeted chain, above 3 inch segment; no height total calculated.
3 in
Printed segment immediately above left removable panel outer upper edge in chain.
Drawing notation: 3″
Printed segment immediately above left removable panel outer upper edge in chain.
6.375 in
Dimension between inner upper and lower moulding witnesses of left removable panel; independent printed evidence, not a traced or calculated height.
Drawing notation: 6⅜″
Dimension between inner upper and lower moulding witnesses of left removable panel; independent printed evidence, not a traced or calculated height.
3 in
Chain segment between left panel lower outer edge and next lower boundary.
Drawing notation: 3″
Chain segment between left panel lower outer edge and next lower boundary.

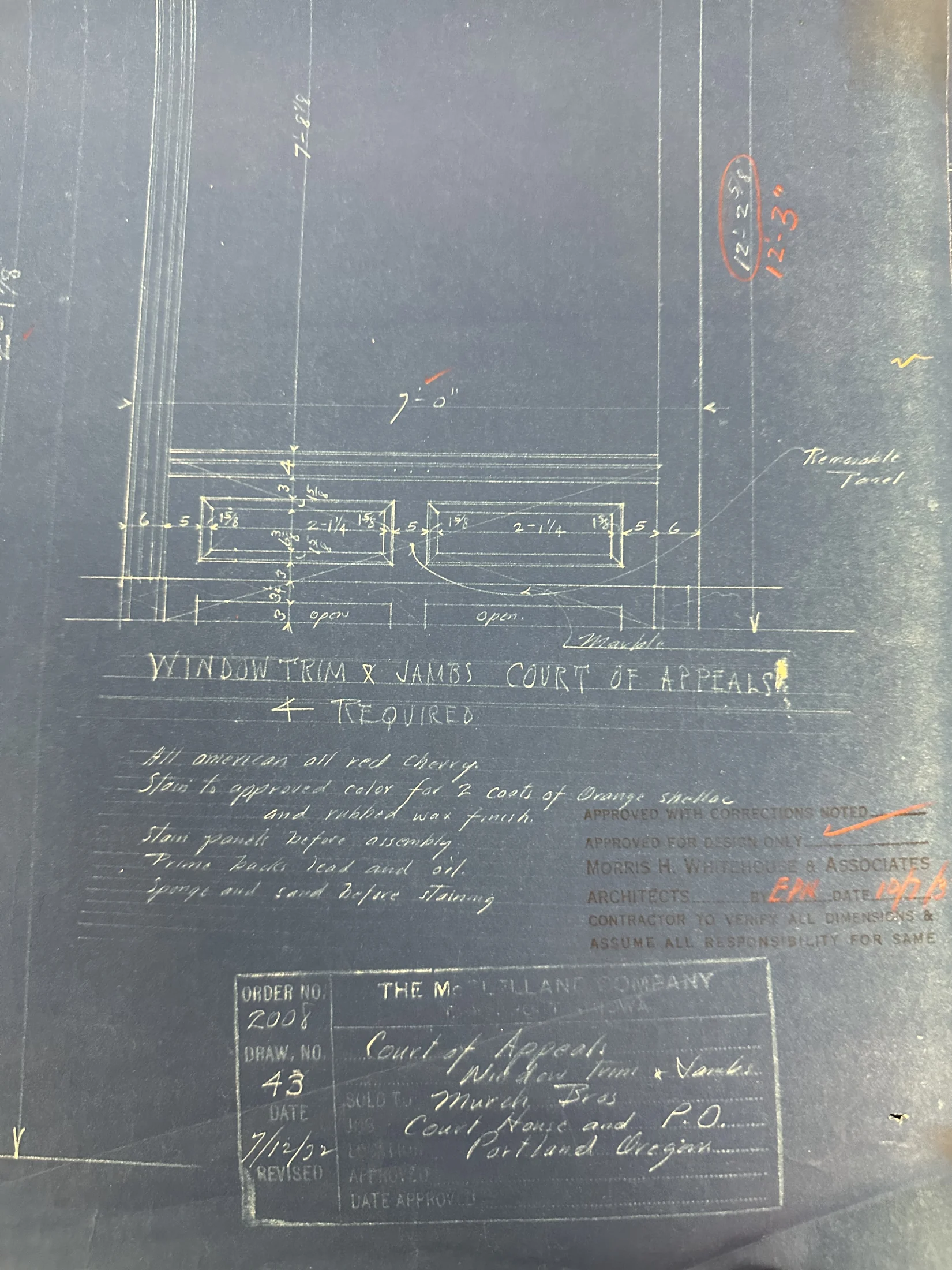

43 drawing-number
Title-block drawing number, not a historical physical element identifier.
Drawing notation: 43
Title-block drawing number, not a historical physical element identifier.
Label below lower open bays identifies depicted marble adjacency, not material for all trim.
Drawing notation: Marble
Label below lower open bays identifies depicted marble adjacency, not material for all trim.
Selected source-local property only; no installed instance or building coordinates.
Drawing notation: CONTRACTOR TO VERIFY ALL DIMENSIONS & ASSUME ALL RESPONSIBILITY FOR SAME
Selected source-local property only; no installed instance or building coordinates.
2008 identifier
Selected source-local property only; no installed instance or building coordinates.
Drawing notation: 2008
Selected source-local property only; no installed instance or building coordinates.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: WINDOW TRIM & JAMBS COURT OF APPEALS
Selected visible note only; does not establish complete assembly geometry.
4 count
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: 4 REQUIRED
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: All american all red Cherry
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: Stain to approved color for 2 coats of Orange shellac
Selected visible note only; does not establish complete assembly geometry.
2 count
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: 2 coats
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: and rubbed wax finish
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: Stain panels before assembly
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: Prime backs lead and oil
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: Sponge and sand before staining
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: Removable Panel
Selected visible note only; does not establish complete assembly geometry.
84 in
Span across tall central opening between jamb reference lines.
Drawing notation: 7′-0″
Span across tall central opening between jamb reference lines.
147 in
Red revision adjacent to circled earlier fractional dimension; earlier reading deferred, not overwritten.
Drawing notation: 12′-3″
Red revision adjacent to circled earlier fractional dimension; earlier reading deferred, not overwritten.
