Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Queue, OCR and prior doors-03/counter-03 packages searched before ten sequential single-image inspections. Additive selected remaining-region review of complete-upright derivative. Existing verified evidence reused, not duplicated. No modeling or full coverage claim. Partial timed visual review: Bounded additive regional inventory; historical room/type marks remain separate from stable dataset object IDs. Partial timed visual review: Partial first-pass review; catalogue, OCR and existing research search preceded sequential visual inspection. Upright close-up with legible specifications. Floor unknown; current crop does not supply room numbers. No modeling; all images remain incomplete. Partial timed visual review: Assigned source disposition and selected source-local witnesses only; historical missing work retained. Reuse rectangles are documentary crosswalks, not exhaustive inspected coverage.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
36 in
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 3′-0″
Selected source span or note only; not room geometry or full assembly dimensions.
36 in
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 3′-0″
Selected source span or note only; not room geometry or full assembly dimensions.
5 in
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 5″
Selected source span or note only; not room geometry or full assembly dimensions.
5 in
Selected source span or note only; not room geometry or full assembly dimensions.
Drawing notation: 5″
Selected source span or note only; not room geometry or full assembly dimensions.
Functional relationship only; historical room number not asserted.

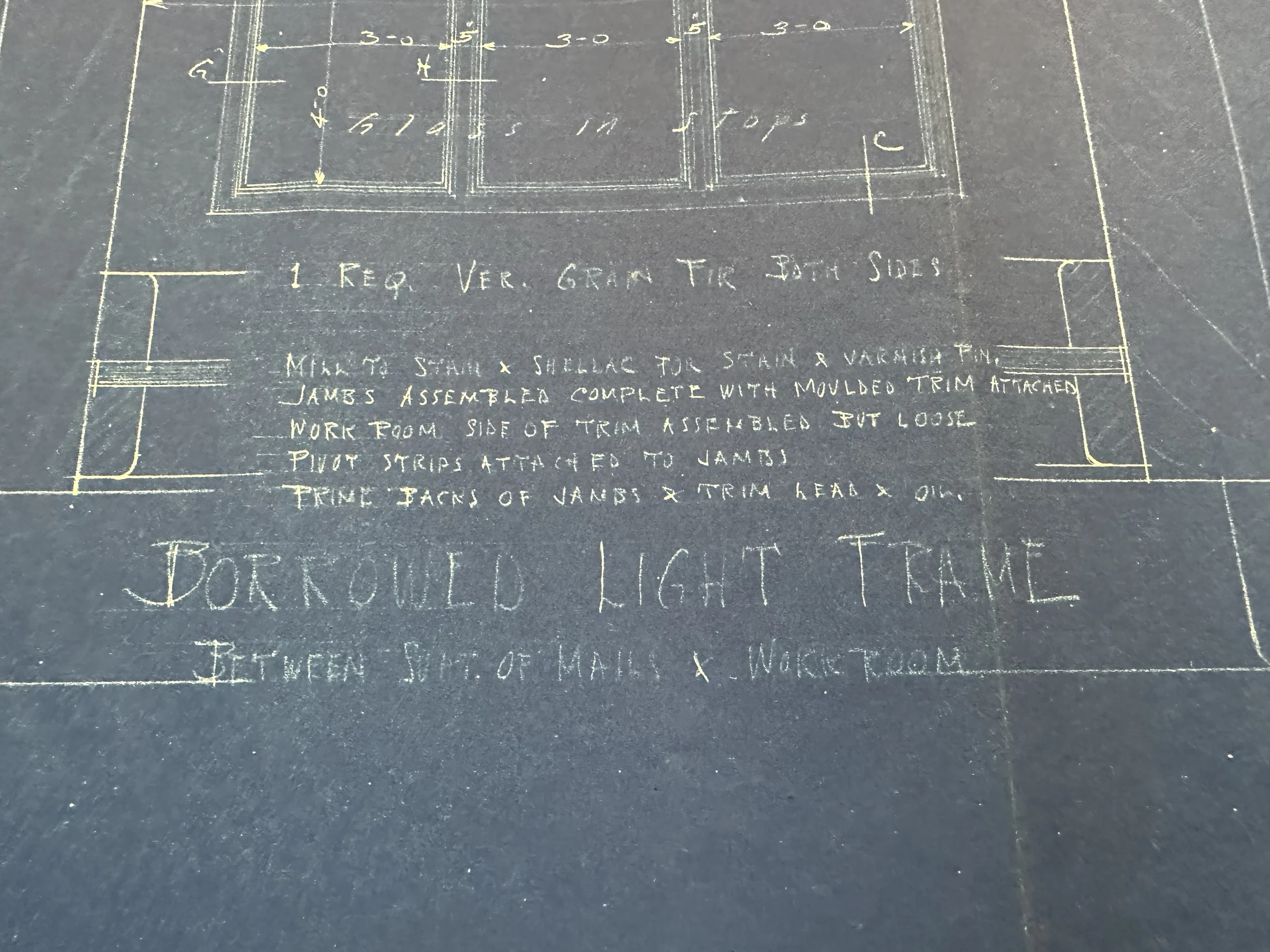

Drawing notation: BETWEEN SUPT. OF MAILS & WORK ROOM
Functional relationship only; historical room number not asserted.
Selected source-local property only; no installed instance or building coordinates.
Drawing notation: BORROWED LIGHT FRAME
Selected source-local property only; no installed instance or building coordinates.
Numeric value unresolved
Visible unnumbered outline requires companion profile detail; pivot-strip note does not establish mechanism.
Visible unnumbered outline requires companion profile detail; pivot-strip note does not establish mechanism.
1 count
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: 1 REQ.
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: VER. GRAIN FIR BOTH SIDES
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: MILL TO STAIN & SHELLAC FOR STAIN & VARNISH FIN.
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: JAMBS ASSEMBLED COMPLETE WITH MOULDED TRIM ATTACHED
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: WORK ROOM SIDE OF TRIM ASSEMBLED BUT LOOSE
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: PIVOT STRIPS ATTACHED TO JAMBS
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: PRIME BACKS OF JAMBS & TRIM LEAD & OIL
Selected visible note only; does not establish complete assembly geometry.
Selected visible note only; does not establish complete assembly geometry.
Drawing notation: GLASS IN STOPS
Selected visible note only; does not establish complete assembly geometry.
36 in
One left bay only; do not derive overall width.
Drawing notation: 3′-0″
One left bay only; do not derive overall width.
48 in
Vertical dimension within cropped left lower-light bay.
Drawing notation: 4′-0″
Vertical dimension within cropped left lower-light bay.
Rounded return profile outline and hatched horizontal strip are visible; no numeric labels or explicit units read in selected crop. Outline does not resolve the unknown profile dimensions or establish pivot mechanism.
Rounded return profile outline and hatched horizontal strip are visible; no numeric labels or explicit units read in selected crop. Outline does not resolve the unknown profile dimensions or establish pivot mechanism.
