Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
parallel-img_0954-assemblyverified · printed
required-assembly-count
1 REQ.1 count
Printed required quantity for borrowed-light-frame drawing type. This is a documentary required type quantity, not a survey of installed openings; no floor/room instance count inferred.
IMG_0954 · Locate on drawing ↗Drawing notation: 1 REQ.
Printed required quantity for borrowed-light-frame drawing type. This is a documentary required type quantity, not a survey of installed openings; no floor/room instance count inferred.
parallel-img_0954-assemblyverified · printed
frame-original-material
VER. GRAIN FIR BOTH SIDESWhite specification beside 1 REQ. at central elevation. Whole-frame drawing note retained separately from local colored Section A SOLID MAHOGANY instruction and its unresolved P744 reference; final revision authority remains unresolved.
IMG_0954 · Locate on drawing ↗Drawing notation: VER. GRAIN FIR BOTH SIDES
White specification beside 1 REQ. at central elevation. Whole-frame drawing note retained separately from local colored Section A SOLID MAHOGANY instruction and its unresolved P744 reference; final revision authority remains unresolved.
parallel-img_0954-assemblyverified · printed
jamb-shop-assembly
JAMBS ASSEMBLED COMPLETE WITH MOULDED TRIM ATTACHEDSelected white assembly sentence below central elevation; spelling retained as printed. Does not establish every trim member instance or installed placement.
IMG_0954 · Locate on drawing ↗Drawing notation: JAMBS ASSEMBLED COMPLETE WITH MOULDED TRIM ATTACHED
Selected white assembly sentence below central elevation; spelling retained as printed. Does not establish every trim member instance or installed placement.
parallel-img_0954-assemblyverified · printed
workroom-trim-delivery
WORK ROOM SIDE OF TRIM ASSEMBLED BUT LOOSESelected white assembly sentence distinguishes loose workroom-side trim from attached jamb moulded trim; no construction revision chronology assumed.
IMG_0954 · Locate on drawing ↗Drawing notation: WORK ROOM SIDE OF TRIM ASSEMBLED BUT LOOSE
Selected white assembly sentence distinguishes loose workroom-side trim from attached jamb moulded trim; no construction revision chronology assumed.
parallel-img_0954-assemblyunreviewed · printed
trim-strip-attachment
TRIM STRIPS ATTACHED TO JAMBSSelected white attachment instruction below loose-trim sentence; member boundaries, quantities and profile dimensions remain unresolved. Review correction review-correction-20261014g-pivot-strips: Same IMG0954 white attachment sentence and target, prior access rectangle[.535,.729,.661,.740] within new access-equivalent[.535,.729,.665,.744]. Native crop reads PIVOT STRIPS ATTACHED TO JAMBS, not TRIM STRIPS. Preserve historical text; source-local instruction does not establish profiles, quantities, installed hardware or governing issue.
IMG_0954 · Locate on drawing ↗Drawing notation: TRIM STRIPS ATTACHED TO JAMBS
Selected white attachment instruction below loose-trim sentence; member boundaries, quantities and profile dimensions remain unresolved.
parallel-img_0954-assemblyunreviewed · printed
jamb-trim-back-primer
PRIME BACKS OF JAMBS & TRIM LEAD & OILCandidate final specification line read at derivative scale; exact conjunction/terminal wording needs targeted master. Not a verified material/finish override.
IMG_0954 · Locate on drawing ↗Drawing notation: PRIME BACKS OF JAMBS & TRIM LEAD & OIL
Candidate final specification line read at derivative scale; exact conjunction/terminal wording needs targeted master. Not a verified material/finish override.
parallel-img_0954-assemblyverified · printed
upper D-to-E span
3′-0″36 in
Selected source span or note only; not room geometry or full assembly dimensions.
parallel-img_0954-assemblyverified · printed
lower G-to-H span
3′-0″36 in
Selected source span or note only; not room geometry or full assembly dimensions.
parallel-img_0954-assemblyverified · printed
joinery relationship
Below Centre / Above CentreLabels accompany offset mortise/tenon sketches between D and E; not universal construction rule.
IMG_0954 · Locate on drawing ↗Drawing notation: Below Centre / Above Centre
Labels accompany offset mortise/tenon sketches between D and E; not universal construction rule.
parallel-img_0954-assemblyverified · printed
drawing number
77 drawing-number
Selected source span or note only; not room geometry or full assembly dimensions.
parallel-img_0954-assemblyverified · observed
section grouping
UnresolvedLeft A/B/C, upper D/E, lower G/H and central elevation; fine profiles remain individually unmeasured.
detail-casework-20261012d-0954-section-a-memberverified · printed
yellow local material annotation
SOLID MAHOGANYYellow diagonal note adjoining upper-right side of section A; not generalized to entire borrowed-light assembly or used to override both-side fir specification.
IMG_0954 · Locate on drawing ↗Drawing notation: SOLID MAHOGANY
Yellow diagonal note adjoining upper-right side of section A; not generalized to entire borrowed-light assembly or used to override both-side fir specification.
detail-casework-20261012d-0954-section-a-memberverified · printed
yellow companion reference
SEE P744Reference transcribed as written; historical meaning of P and referenced item not established.
IMG_0954 · Locate on drawing ↗Drawing notation: SEE P744
Reference transcribed as written; historical meaning of P and referenced item not established.
detail-casework-20261012d-0954-section-a-memberverified · observed
annotation target
UnresolvedAnnotation adjoins narrow right vertical section A strip alongside profiled trim. Exact intended strip versus adjoining trim identity remains unresolved.
IMG_0954 · Locate on drawing ↗Annotation adjoins narrow right vertical section A strip alongside profiled trim. Exact intended strip versus adjoining trim identity remains unresolved.
parallel-img_0954-assemblyverified · printed
location relationship

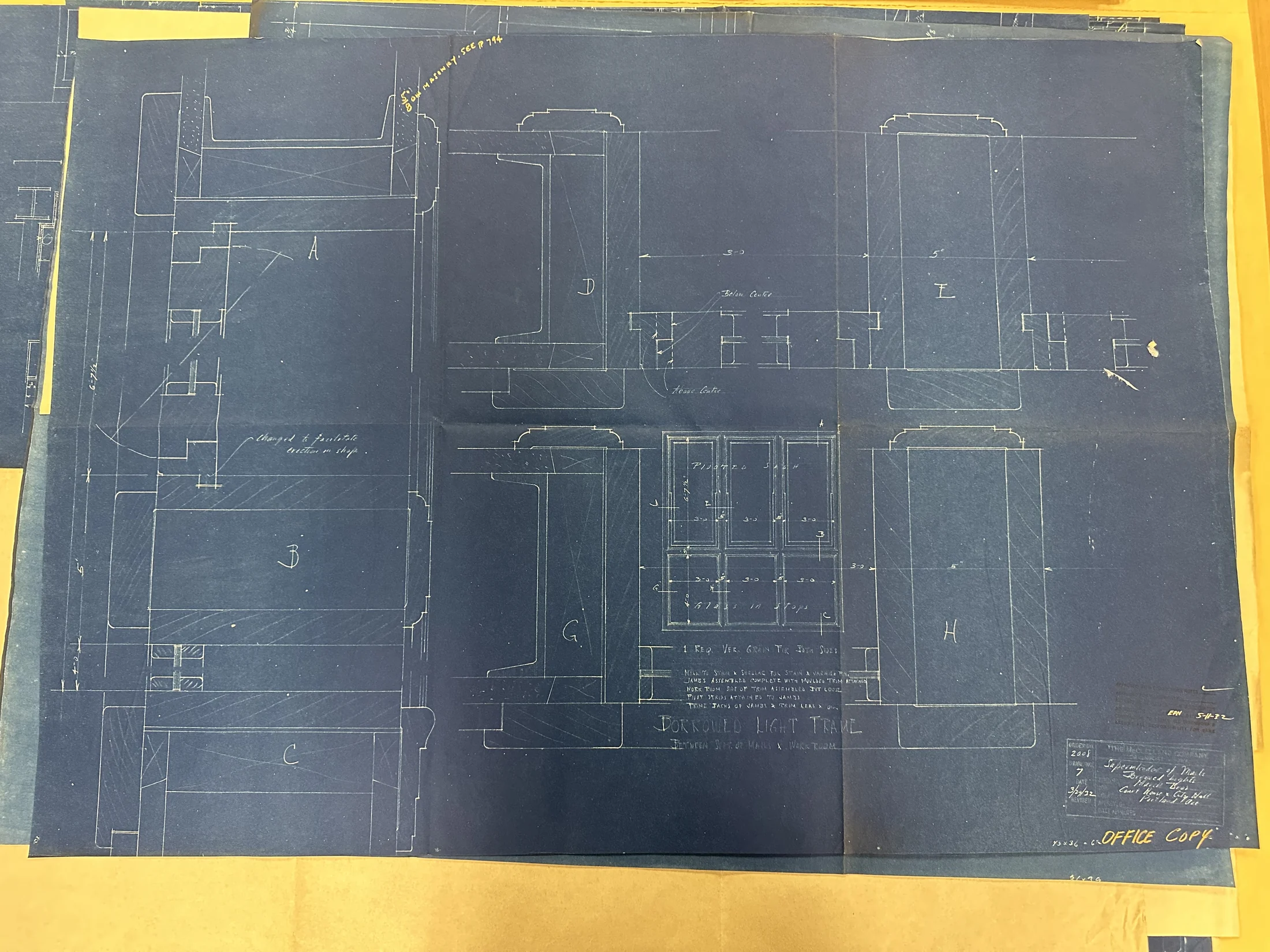

BORROWED LIGHT FRAME / BETWEEN SUPT. OF MAILS & WORK ROOMSelected visible note only; does not establish complete assembly geometry.
IMG_0954 · Locate on drawing ↗Drawing notation: BORROWED LIGHT FRAME / BETWEEN SUPT. OF MAILS & WORK ROOM
Selected visible note only; does not establish complete assembly geometry.
parallel-img_0954-assemblyverified · observed
assembly revision reason
Changed to facilitate erection in shopSelected visible note only; does not establish complete assembly geometry.
IMG_0954 · Locate on drawing ↗Drawing notation: Changed to facilitate erection in shop
Selected visible note only; does not establish complete assembly geometry.
parallel-img_0954-assemblyverified · printed
upper section E horizontal width
5″5 in
Dimension span across upper-right section E; exact member identity requires follow-up.
parallel-img_0954-assemblyverified · printed
jamb_trim_back_primer_resolved
PRIME BACKS OF JAMBS & TRIM LEAD & OILSame white final specification sentence below central borrowed-light elevation; direct native reading resolves wording only. No floor/room placement or material override.
IMG_0954 · Locate on drawing ↗Drawing notation: PRIME BACKS OF JAMBS & TRIM LEAD & OIL
Same white final specification sentence below central borrowed-light elevation; direct native reading resolves wording only. No floor/room placement or material override.
parallel-img_0954-assemblyverified · printed
pivot_strip_attachment_resolved
PIVOT STRIPS ATTACHED TO JAMBSSame white sentence beneath loose workroom-side trim line. First word is PIVOT in this native crop, not historical verified TRIM transcription; retained separately for primary correction curation.
IMG_0954 · Locate on drawing ↗Drawing notation: PIVOT STRIPS ATTACHED TO JAMBS
Same white sentence beneath loose workroom-side trim line. First word is PIVOT in this native crop, not historical verified TRIM transcription; retained separately for primary correction curation.
parallel-img_0954-assemblyverified · printed
mill_stain_shellac_requirement
MILL TO STAIN & SHELLAC FOR STAIN & VARNISH FIN.White finish sentence between fir specification and jamb assembly instruction on this image only. Companion IMG_0955 finish evidence remains separately sourced.
IMG_0954 · Locate on drawing ↗Drawing notation: MILL TO STAIN & SHELLAC FOR STAIN & VARNISH FIN.
White finish sentence between fir specification and jamb assembly instruction on this image only. Companion IMG_0955 finish evidence remains separately sourced.
