The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_0948 · Folder 194

Carved head above entrance to District Courts—detail view

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Explicit source-local region inventory and additive bounded property review; catalogue labels are discovery aids. Original and colored handwritten revisions remain separate. No physical geometry authoring. Partial timed visual review: Partial first-pass review of public/archive/drawings/complete-upright/IMG_0948.webp. Drawing title-block close-up only; no carving geometry visible. Source regions use access-image coordinates. No floor inference or modeling. Partial timed visual review: Queue, OCR and prior doors-03/counter-03 packages searched before ten sequential single-image inspections. Additive selected remaining-region review of complete-upright derivative. Existing verified evidence reused, not duplicated. No modeling or full coverage claim. Partial timed visual review: Assigned source disposition and selected source-local witnesses only; historical missing work retained. Reuse rectangles are documentary crosswalks, not exhaustive inspected coverage.

Unresolved extraction work

full dimensional extraction
all fine notes and callouts
companion detail reconciliation
floor assignment
full-sheet completeness
Parent sheet
head dimensions
wood material
approval fields
All inventoried not-reviewed, illegible, cropped and awaiting-companion regions require bounded follow-up; no exhaustive source acceptance.
Exact installed quantity, original/revision authority and physical source-to-instance registration remain unresolved.
Remaining fine profiles, dimension chains, notes and companion details require review.
Physical floor/room registration, installed quantities, governing revisions and as-built applicability unresolved.
No modeling or whole-building architectural acceptance performed.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

7 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img0948-titleblockverified · observed

approval-field-visibility

Unresolved

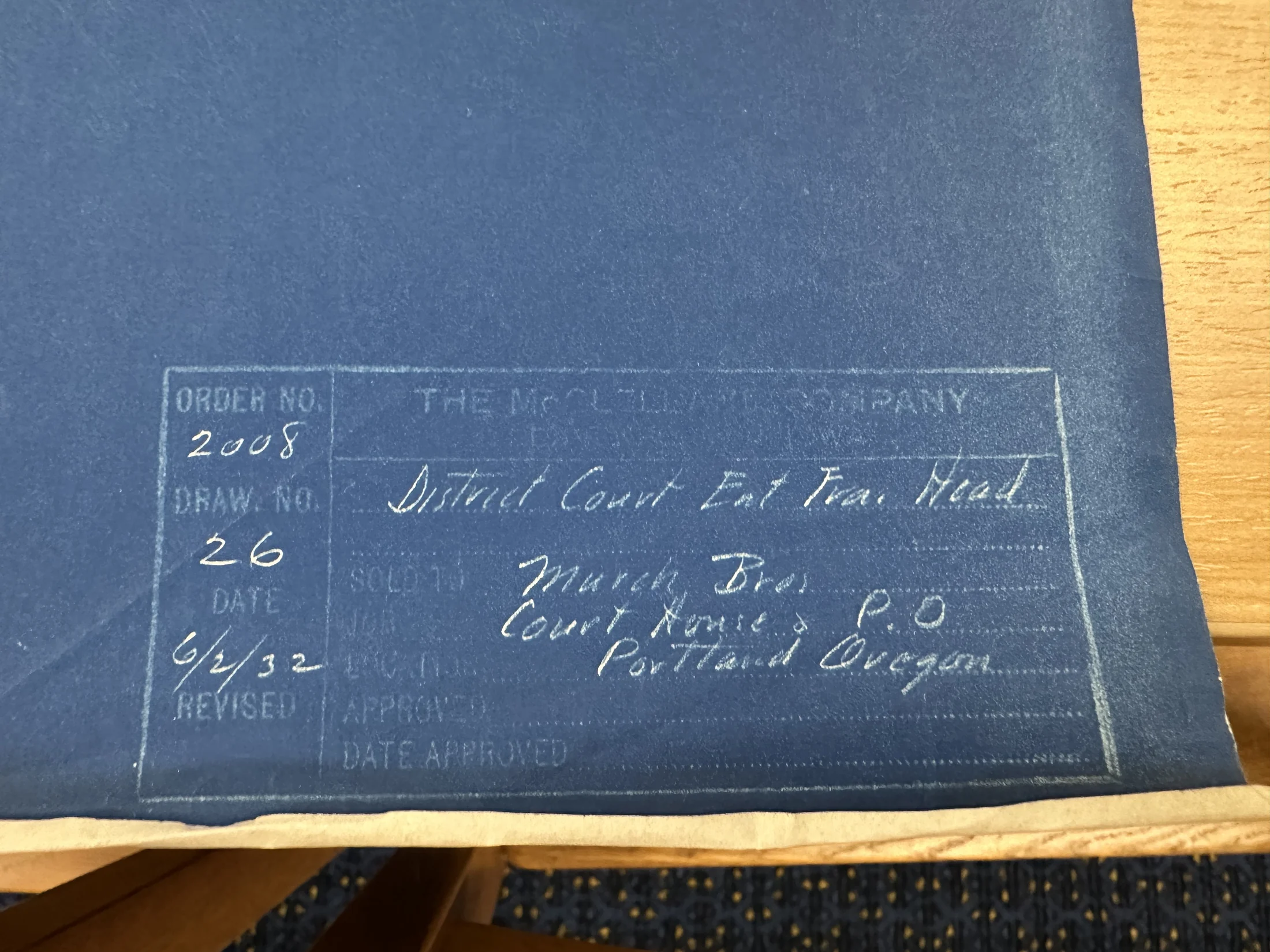

Printed APPROVED and DATE APPROVED fields have no discernible filled entry in this exposure. Observation of the document field only; cannot establish whether the underlying drawing was approved or revised.

IMG_0948 · Locate on drawing ↗

parallel-img0948-titleblockverified · printed
