Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

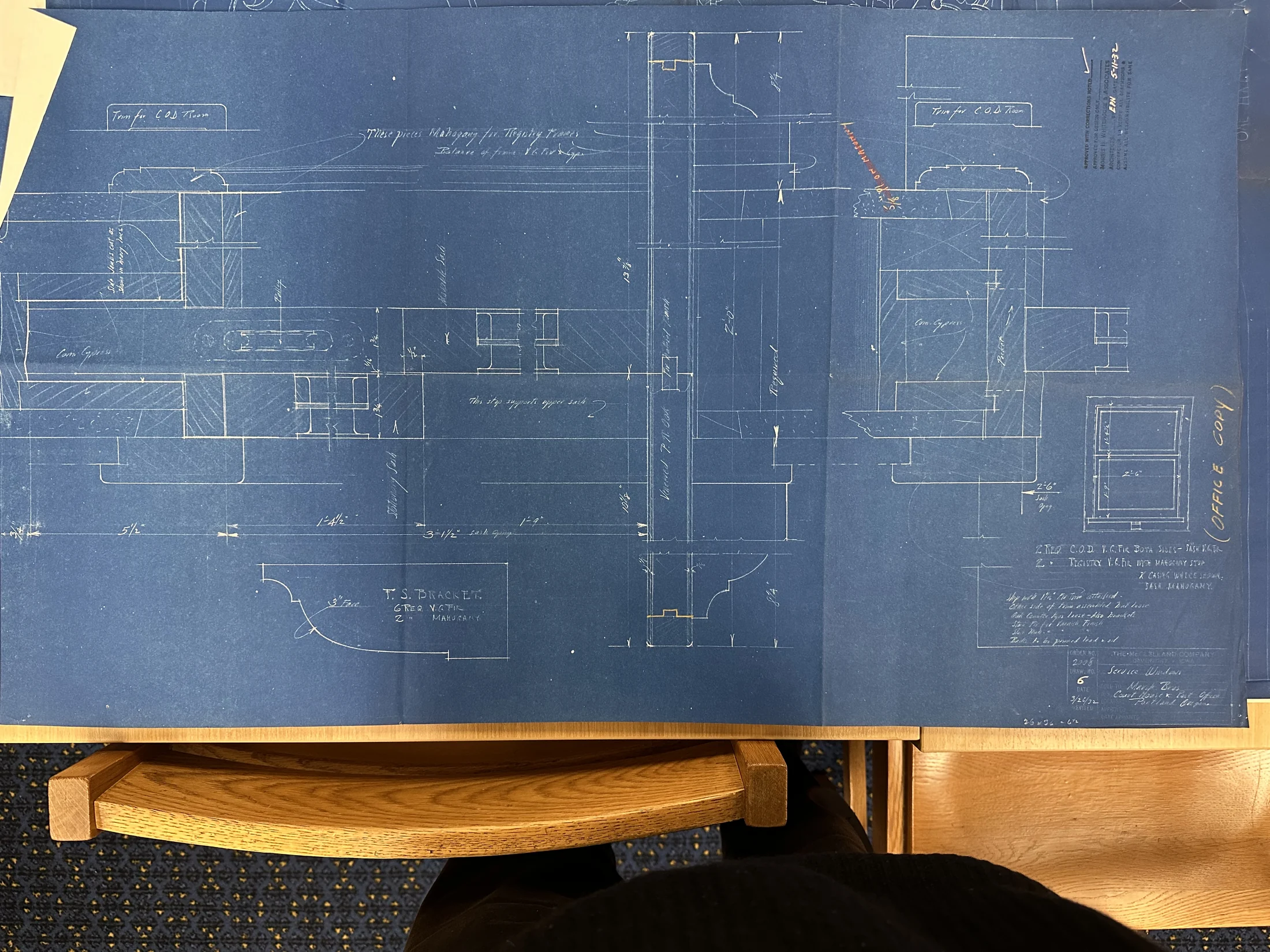

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review of public/archive/drawings/complete-upright/IMG_0945.webp. Service-window full sheet. Fine full-size details partially surveyed, not completely measured. Source regions use access-image coordinates. No floor inference or modeling. Partial timed visual review: Additive partial remaining-region review of complete-upright access derivative. Prior verified readings remain in their packages. No floor inference, geometry approval or full extraction claim. Partial timed visual review: Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
2 windows
Selected source evidence; partial review.
Drawing notation: 2 Req. C.O.D.
Selected source evidence; partial review.
Selected source evidence; partial review.
Drawing notation: V.G. Fir both sides
Selected source evidence; partial review.
Selected source evidence; partial review.
Drawing notation: Sash V.G. Fir
Selected source evidence; partial review.
2 windows
Selected source evidence; partial review.
Selected source evidence; partial review.
Drawing notation: Registry V.G. Fir with mahogany stop
Selected source evidence; partial review.
Selected source evidence; partial review.
Drawing notation: Sash Mahogany
Selected source evidence; partial review.
6 brackets
Selected source evidence; partial review.
Drawing notation: 6 Req. V.G. Fir
Selected source evidence; partial review.
2 brackets
Selected source evidence; partial review.
30 in
Selected source evidence; partial review.
Selected source evidence; partial review.
Drawing notation: These pieces Mahogany for Registry Frames
Selected source evidence; partial review.
8 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 8" Rad
Direct source notation, applies only to depicted detail; no building geometry inference.
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: Balance of trim V.G. Fir
Direct source notation, applies only to depicted detail; no building geometry inference.
16.5 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 1'-4½"
Direct source notation, applies only to depicted detail; no building geometry inference.
21 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 1'-9"
Direct source notation, applies only to depicted detail; no building geometry inference.
37.5 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 3'-1½" sash opng
Direct source notation, applies only to depicted detail; no building geometry inference.
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: Stationary Sash
Direct source notation, applies only to depicted detail; no building geometry inference.
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: Movable Sash
Direct source notation, applies only to depicted detail; no building geometry inference.
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Drawing notation: Coin Grooves
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Drawing notation: Coin Grooves
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Drawing notation: Veneered P.W. Oak
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Drawing notation: Thin strips support upper sash
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
