Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

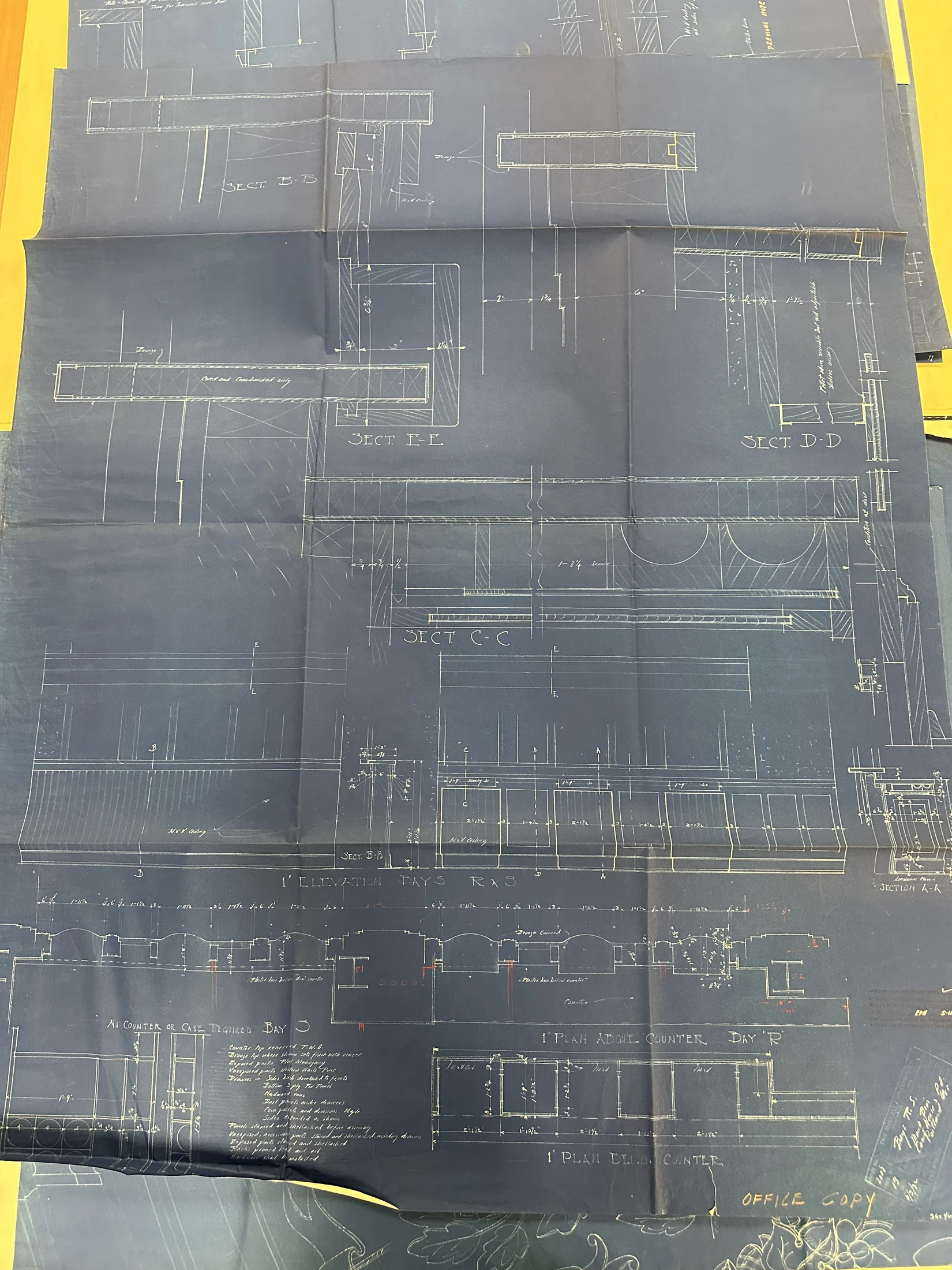

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review of public/archive/drawings/complete-upright/IMG_0943.webp. Counter elevations and plans for Bays R and S; selected direct labels only. Source regions use access-image coordinates. No floor inference or modeling. Partial timed visual review: Additive partial remaining-region review of complete-upright access derivative. Prior verified readings remain in their packages. No floor inference, geometry approval or full extraction claim. Partial timed visual review: Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected source evidence; partial review.
Drawing notation: No counter or case required Bay S
Selected source evidence; partial review.
Selected source evidence; partial review.
Drawing notation: Plan above counter Bay R
Selected source evidence; partial review.
Selected source evidence; partial review.
Drawing notation: Elevation Bays R x S
Selected source evidence; partial review.
Numeric value unresolved
Below-counter dimension chains remain untranscribed.
Below-counter dimension chains remain untranscribed.
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: Oak ... [remaining qualifier unclear]
Direct source notation, applies only to depicted detail; no building geometry inference.
6 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 6"
Direct source notation, applies only to depicted detail; no building geometry inference.
5 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 5"
Direct source notation, applies only to depicted detail; no building geometry inference.
Above-counter and below-counter plans explicitly labeled on same drawing; physical registration still unverified.
Above-counter and below-counter plans explicitly labeled on same drawing; physical registration still unverified.
2 in
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Drawing notation: 2"
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Same section E-E counter member qualifier; limited to counters, not surrounding casing or all installed wood.
Drawing notation: Oak on Counters only
Same section E-E counter member qualifier; limited to counters, not surrounding casing or all installed wood.
Literal dash code only; own unit marks indistinct, so no feet/inches conversion. Separate endpoints recorded; broad all-geometry null retained.
Drawing notation: 2-1½
Literal dash code only; own unit marks indistinct, so no feet/inches conversion. Separate endpoints recorded; broad all-geometry null retained.
Literal dash code only; own unit marks indistinct, so no feet/inches conversion. Separate endpoints recorded; broad all-geometry null retained.
Drawing notation: 1-0½
Literal dash code only; own unit marks indistinct, so no feet/inches conversion. Separate endpoints recorded; broad all-geometry null retained.
Literal dash code only; own unit marks indistinct, so no feet/inches conversion. Separate endpoints recorded; broad all-geometry null retained.
Drawing notation: 2-1½
Literal dash code only; own unit marks indistinct, so no feet/inches conversion. Separate endpoints recorded; broad all-geometry null retained.
Literal dash code only; own unit marks indistinct, so no feet/inches conversion. Separate endpoints recorded; broad all-geometry null retained.
Drawing notation: 1-0½
Literal dash code only; own unit marks indistinct, so no feet/inches conversion. Separate endpoints recorded; broad all-geometry null retained.
25.5 in
Fifth source-local below-counter segment between inner divider and right panel/divider, not overall counter extent. Own explicit prime/quote permits 25.5 in; broad geometry null retained.
Drawing notation: 2'-1½"
Fifth source-local below-counter segment between inner divider and right panel/divider, not overall counter extent. Own explicit prime/quote permits 25.5 in; broad geometry null retained.
