Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

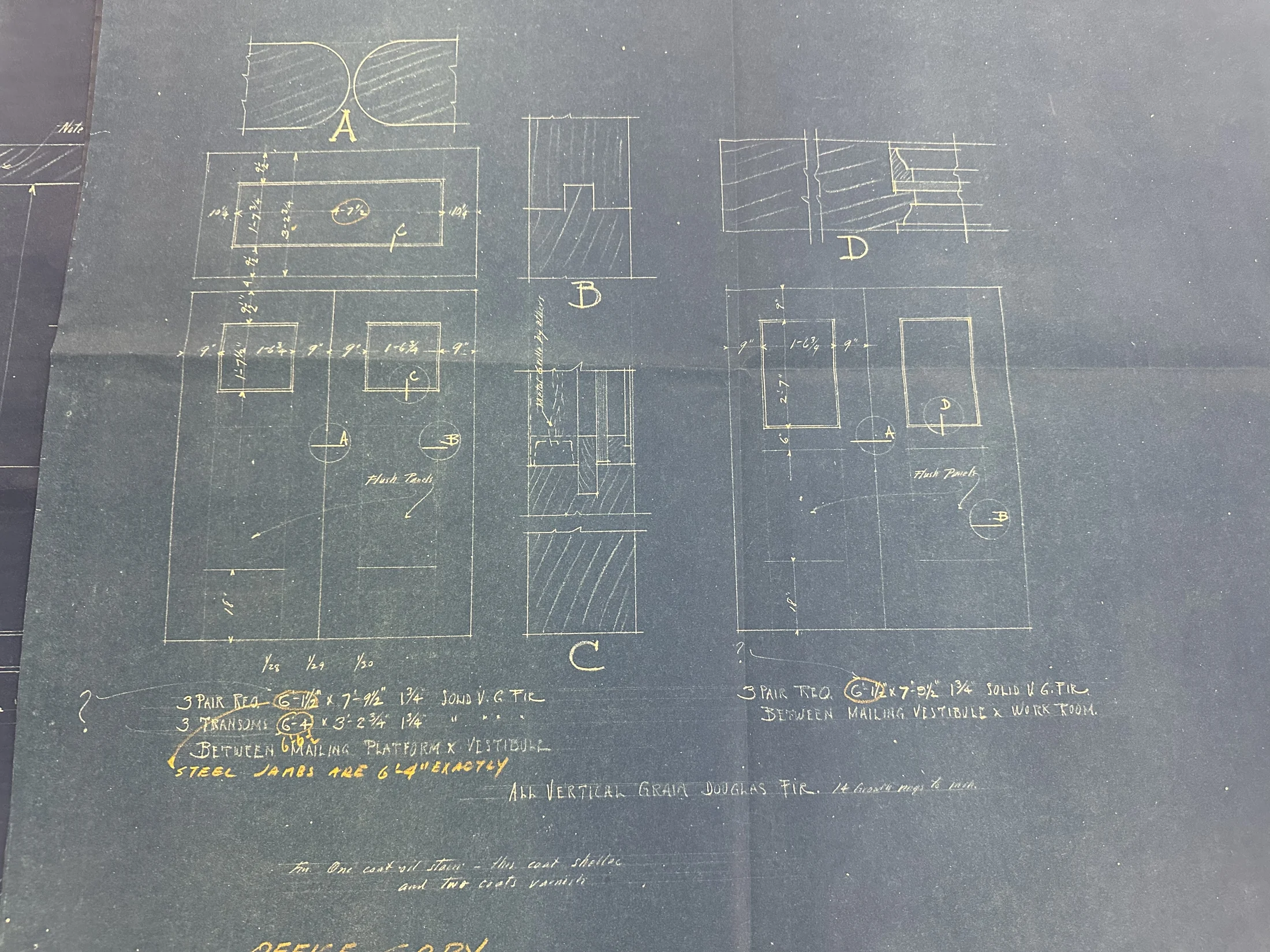

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review of public/archive/drawings/complete-upright/IMG_0941.webp. Door detail and specification close-up. Printed door width and yellow steel-jamb correction retained separately; do not harmonize them. Source regions use access-image coordinates. No floor inference or modeling. Partial timed visual review: Additive partial remaining-region review of complete-upright access derivative. Prior verified readings remain in their packages. No floor inference, geometry approval or full extraction claim. Partial timed visual review: Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
3 pairs
Selected source evidence; partial review.
Drawing notation: 3 Pair Req.
Selected source evidence; partial review.
73.5 in
Selected source evidence; partial review.
93.5 in
Selected source evidence; partial review.
1.75 in
Selected source evidence; partial review.
Selected source evidence; partial review.
Drawing notation: Solid V.G. Fir
Selected source evidence; partial review.
3 pairs
Selected source evidence; partial review.
Drawing notation: 3 Pair Req.
Selected source evidence; partial review.
73.5 in
Selected source evidence; partial review.
93.5 in
Selected source evidence; partial review.
1.75 in
Selected source evidence; partial review.
Selected source evidence; partial review.
Drawing notation: Solid V.G. Fir
Selected source evidence; partial review.
3 transoms
Selected source evidence; partial review.
76 in
Selected source evidence; partial review.
38.75 in
Selected source evidence; partial review.
1.75 in
Selected source evidence; partial review.
76 in
Selected source evidence; partial review.
Drawing notation: STEEL JAMBS ARE 6'-4" EXACTLY
Selected source evidence; partial review.
Selected source evidence; partial review.
Drawing notation: All vertical grain Douglas Fir
Selected source evidence; partial review.
Selected source evidence; partial review.
Drawing notation: A Grade ... [small wording uncertain]
Selected source evidence; partial review.
1 coats
Selected source evidence; partial review.
Drawing notation: One coat oil stain
Selected source evidence; partial review.
1 coats
Selected source evidence; partial review.
Drawing notation: thin coat shellac
Selected source evidence; partial review.
2 coats
Selected source evidence; partial review.
Drawing notation: two coats varnish
Selected source evidence; partial review.
18.75 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 1'-6¾"
Direct source notation, applies only to depicted detail; no building geometry inference.
19.5 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 1'-7½"
Direct source notation, applies only to depicted detail; no building geometry inference.
18 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 18"
Direct source notation, applies only to depicted detail; no building geometry inference.
19.75 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 1'-7¾"
Direct source notation, applies only to depicted detail; no building geometry inference.
Numeric value unresolved
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 4'-[fraction unclear]
Direct source notation, applies only to depicted detail; no building geometry inference.
18.75 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 1'-6¾"
Direct source notation, applies only to depicted detail; no building geometry inference.
31 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 2'-7"
Direct source notation, applies only to depicted detail; no building geometry inference.
6 in
Direct source notation, applies only to depicted detail; no building geometry inference.
Drawing notation: 6"
Direct source notation, applies only to depicted detail; no building geometry inference.
Prior uncertainty retained. One coat oil stain, thin shellac and two varnish coats already verified in prior package.
Drawing notation: A Grade ... [suffix unclear]
Prior uncertainty retained. One coat oil stain, thin shellac and two varnish coats already verified in prior package.
55.5 in
Resolves prior detail-0941p-parallel-img0941-platform-transoms-transom_panel_width_unresolved. Earlier null retained; circled panel witness differs from complete transom width.
Drawing notation: 4'-7½"
Resolves prior detail-0941p-parallel-img0941-platform-transoms-transom_panel_width_unresolved. Earlier null retained; circled panel witness differs from complete transom width.
10.25 in
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Drawing notation: 10¼"
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
9.5 in
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Drawing notation: 9½"
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
Drawing notation: Flush Panels
Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred.
