IMG_0939 · Folder 194

Counter Top Veneeved P.W. Ook

Original sheet identity has not yet been reconciled.

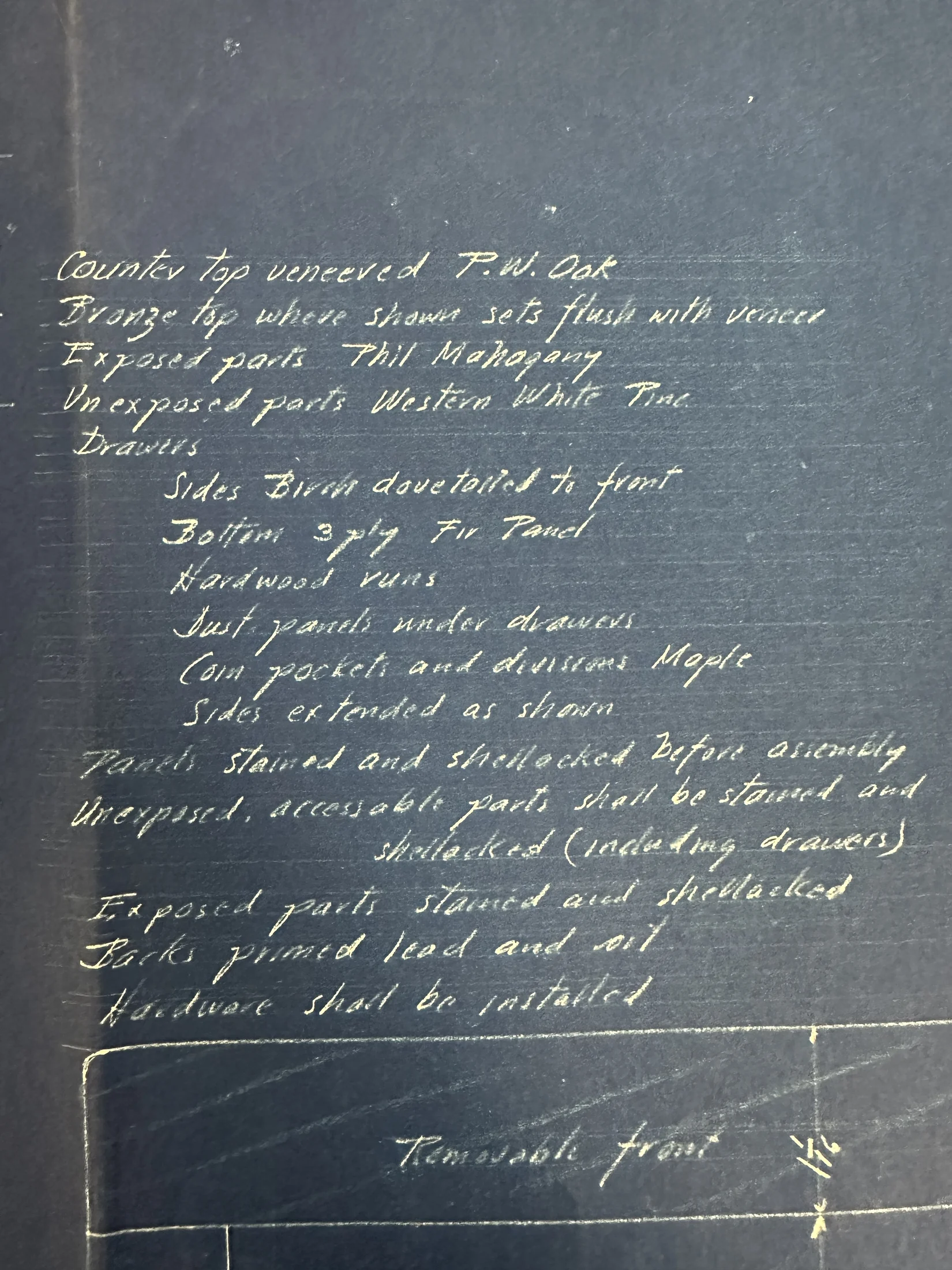

Extraction: Reviewed · extraction partial. Partial timed visual review: First-pass partial review of public/archive/drawings/complete-upright/IMG_0939.webp. Close-up specification region; directly legible text. Apparent companion to IMG_0938, but object identity across images remains to be reconciled. No floor assignment or modeling; remaining regions require review. Partial timed visual review: Additive partial remaining-region review of complete-upright access derivative. Prior verified readings remain in their packages. No floor inference, geometry approval or full extraction claim. Partial timed visual review: Source-local partial detail evidence only; no installed building geometry, quantity or host placement inferred. Partial timed visual review: undefined

Unresolved extraction work

all remaining dimensions, notes and callouts
companion sheet reconciliation
floor assignment
full-sheet completeness review
Fine dimension fractions and all untranscribed section dimensions require source-resolution crops.
Physical instance and floor/room registration require governing plans.
Companion details and revisions require reconciliation; modeling/checking unchecked.
Complete fine dimension chains, profiles and notes remain unextracted.
Physical floor/room registration, installed instances and companion/revision reconciliation remain unresolved.
Modeling and architectural checking remain unchecked.
Remaining fine profiles, notes and dimension chains not exhausted.
Installed floor/room/object registration, companion and revision applicability unresolved.
Partial extraction; modeling/checking not performed; authoring excluded.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

22 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img0939-counter-specverified · printed

countertop_veneer

Counter top veneered P.W. Oak

Direct printed evidence; partial review.

Counter Top Veneeved P.W. Ook

22 matching properties

countertop_veneer

bronze_top_alignment

exposed_material

unexposed_material

side_material

front_joint

bottom_ply_count

bottom_material

run_material

dust_panel

material

side_extension

panel_preassembly_finish

accessible_unexposed_finish

exposed_finish

back_priming

hardware_requirement

removability

thickness_unresolved

front_thickness_followup

companion_specification_relationship

front_thickness_unlabeled_fraction_glyph
